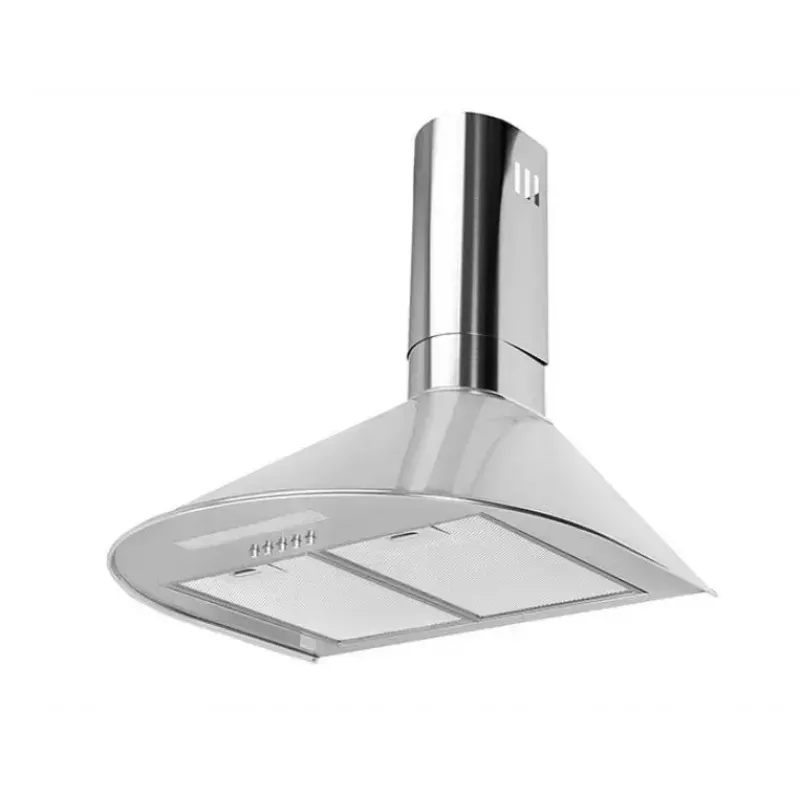

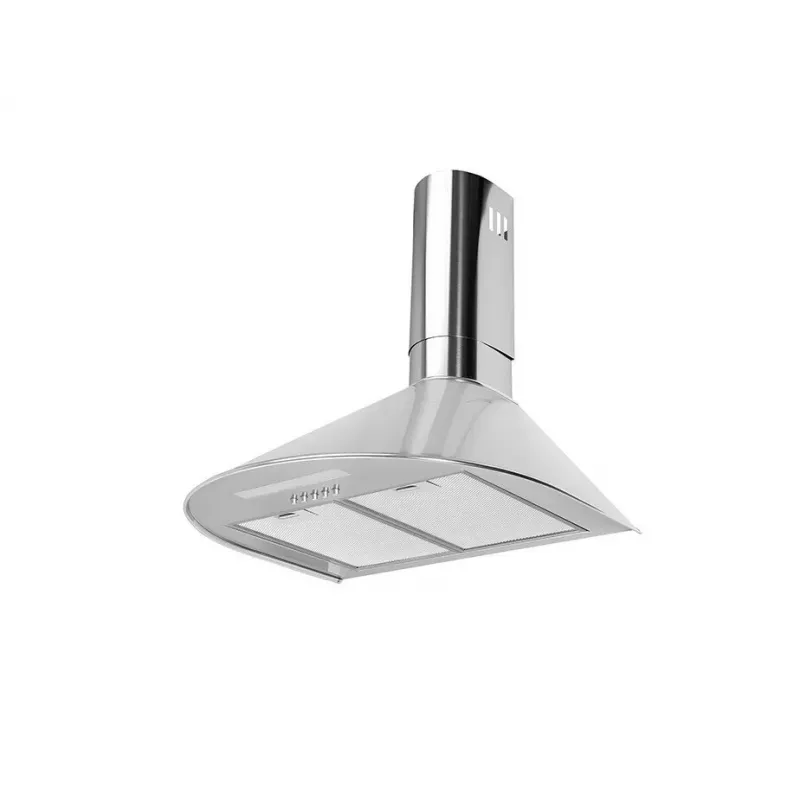

Nástenný digestor MAAN Mix 3, tukový filter, satinovaná nehrdzavejúca oceľ, 500 mm, 310 m³/h

Wall-mounted canopy MAAN Mix 3 with a satin steel housing and aluminium grease filter. The hood is 500 mm wide and 480 mm deep, equipped with a motor and three-speed extraction up to 310 m³/h. Front-positioned button controls and front lighting with one 5 W bulb are included. The filter is washable and the unit supports both ducted and recirculating installation. Energy efficiency class C with an annual energy consumption of 61 kWh.

Advantages

The MAAN Mix 3 offers compact dimensions for smaller kitchens, a satin steel finish that is easy to clean, and an aluminium grease filter that can be washed for repeated use. Three fan speeds allow adjustment of extraction power up to 310 m³/h, while the included motor and simple button controls provide straightforward operation. Front-positioned lighting and a single 5 W bulb deliver task illumination for the cooking area.

Suitable for

• Small to medium domestic kitchens
• Homes requiring ducted or recirculating installation
• Users who prefer simple button controls and front lighting

Key specifications

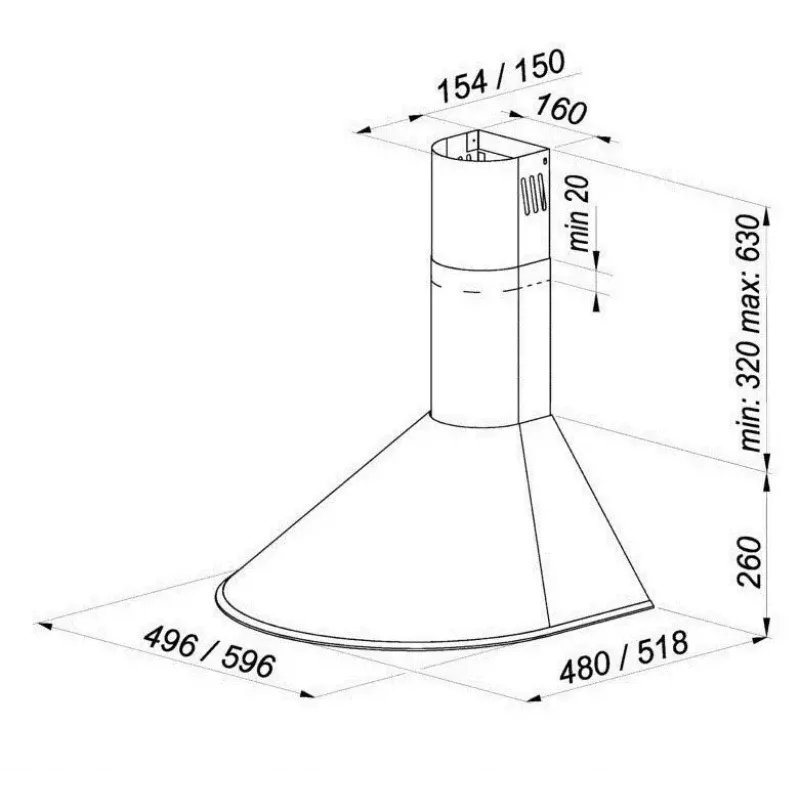

• Width: 500 mm
• Depth: 480 mm
• Maximum extraction: 310 m³/h
• Number of speeds: 3
• Noise level (low/high): 47 / 63 dB
• Lighting: 1 × 5 W bulb, front position

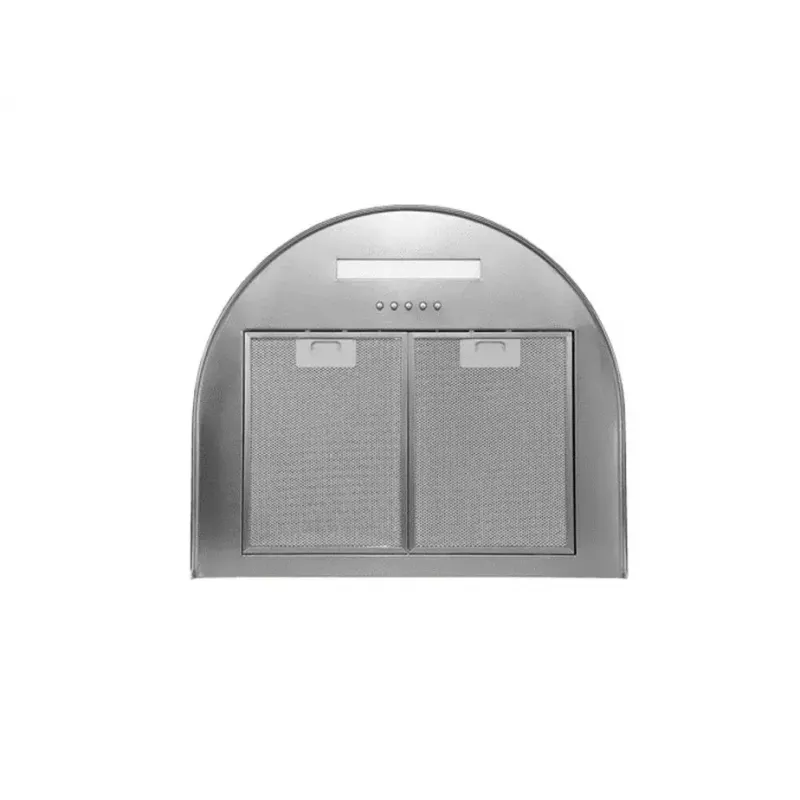

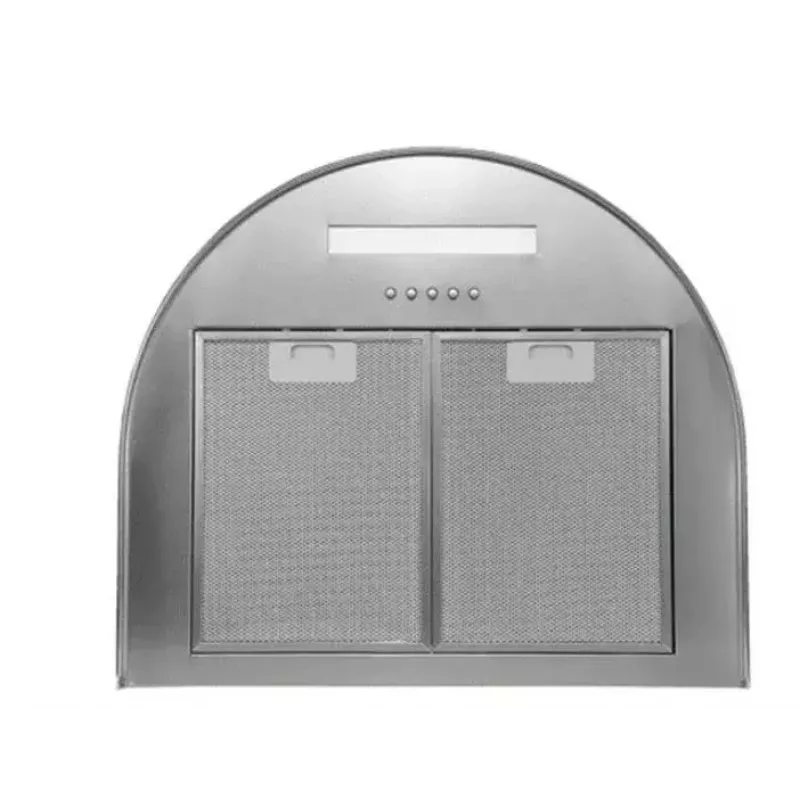

• Grease filter: Washable aluminium
• Housing material: Steel with satin finish
• Extraction type: Ducted or recirculating
• Annual energy consumption: 61 kWh
• Energy efficiency class: C

How to use

Install the canopy on a suitable wall following the included user manual and safety instructions. Select the required fan speed using the front-positioned buttons; use higher speeds for stronger odors and steam and lower speeds for background ventilation. Replace the bulb with a compatible 5 W lamp when necessary. Regularly remove and wash the aluminium grease filter to maintain extraction performance.

Recommendations

Do not install the appliance without reading the instructions. For optimal performance, clean the grease filter frequently and ensure ducting is unobstructed if using a ducted installation.
