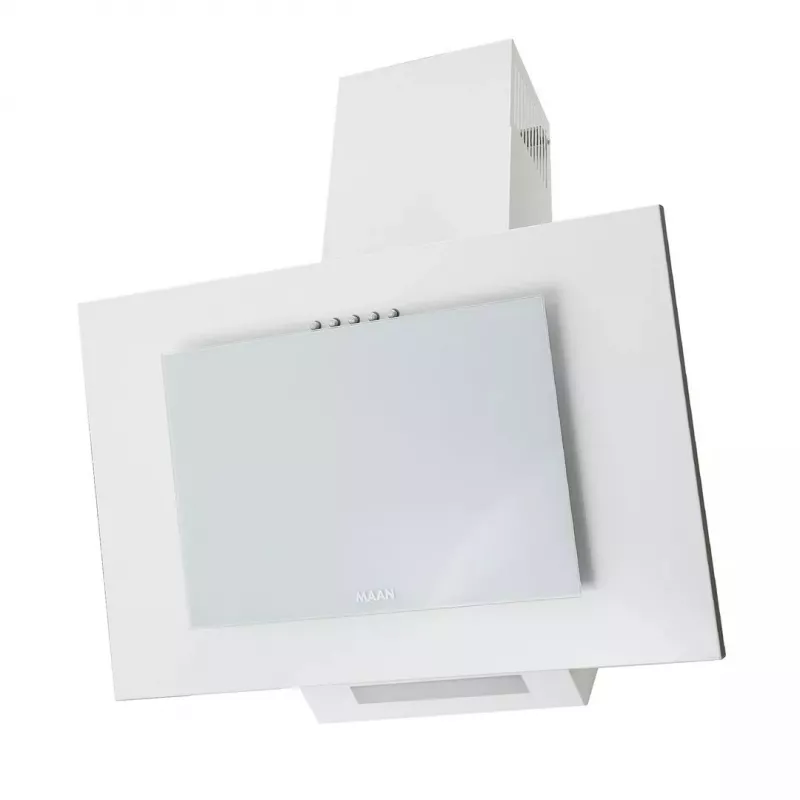

Nástenný digestor MAAN Vertical P 2 60, 600 mm, hliníkový tukový filter, 3 rýchlosti, 310 m³/h

Wall-mounted canopy hood MAAN Vertical P 2 60, 600 mm wide, designed for installation as either ducted or recirculating. The unit has a glass housing, back-positioned button controls and back lighting with a single 5 W bulb. An aluminium, washable grease filter and motor are included. The hood offers three fan speeds with a maximum extraction capacity of 310 m³/h and operates at noise levels between 49 dB (low) and 62 dB (high). Annual energy consumption is 34 kWh and the appliance is rated on the manufacturer's energy scale between A+++ and D.

Advantages

The MAAN Vertical P 2 60 combines a glass housing and a compact 600 mm width suitable for standard kitchens, with included motor and washable aluminium grease filter for easier maintenance. Three speed settings and a maximum extraction power of 310 m³/h provide adaptable ventilation performance while the single integrated 5 W bulb supplies task lighting. Button controls located at the back maintain a clean front appearance.

Suitable for

• Ducted or recirculating kitchen installations
• Standard 600 mm wide cooker hobs
• Small to medium domestic kitchens requiring adjustable ventilation

Key specifications

• Width: 600 mm
• Control type and position: Buttons, back
• Housing material: Glass
• Lighting: 1 × 5 W bulb, back position
• Grease filter: Washable aluminium
• Motor: included
• Speeds: 3
• Maximum extraction: 310 m³/h
• Extraction type: Ducted or recirculating
• Noise level: 49 dB (low) – 62 dB (high)
• Annual energy consumption: 34 kWh
• Energy efficiency scale: A+++ to D
• Energy efficiency class (legacy): B

How to use

Install the hood according to the supplied user manual and warranty card, choosing either ducted or recirculating configuration. Use the back-positioned buttons to select one of three fan speeds as needed; start with a lower speed for light cooking and increase to a higher setting for stronger extraction. Replace or clean the aluminium grease filter regularly; the filter is washable. Replace the 5 W bulb with the same type when needed and ensure the motor and electrical connections are serviced only by a qualified person.

Recommendations

Do not install the unit without reading the instructions. Clean the aluminium grease filter regularly and follow the manual for correct ducting or recirculation setup to ensure safe and efficient operation.
