Nástenný držiak Hagor WH SA Flip 139,7 cm (55)

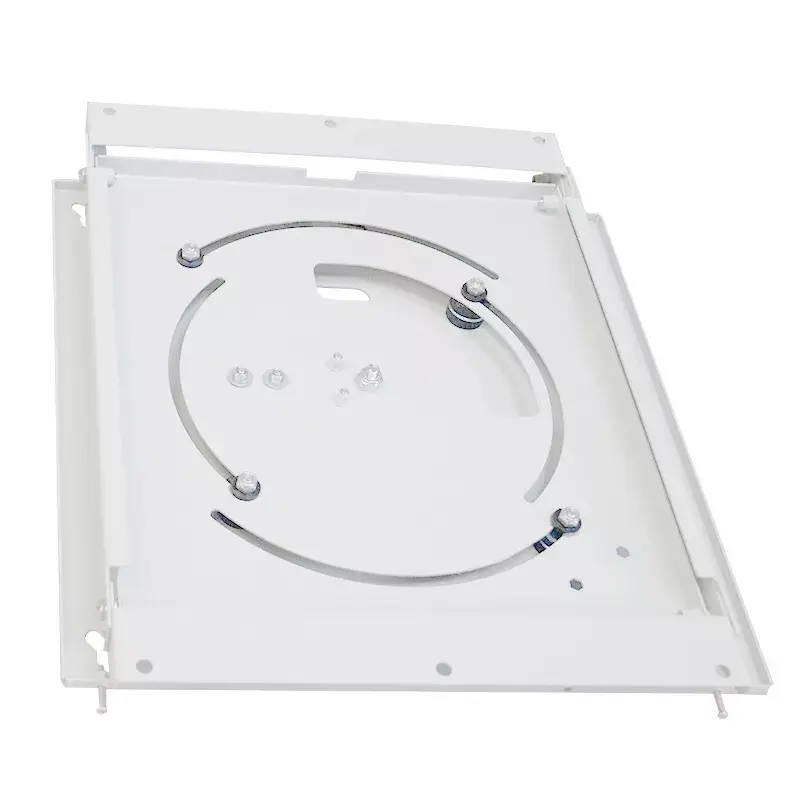

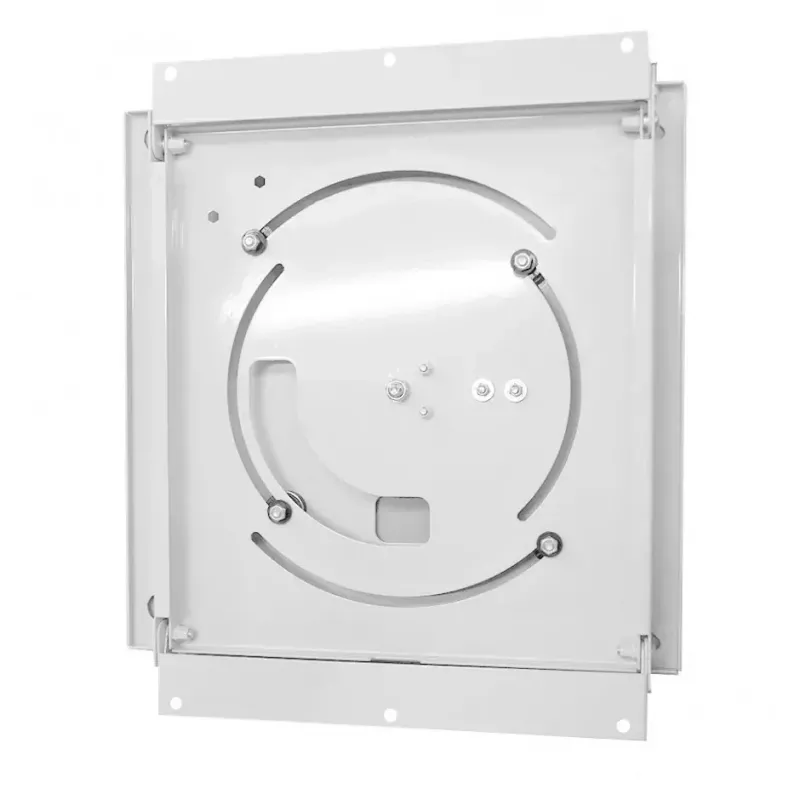

The WH SA Flip is a rotatable and tiltable wall mount developed for Samsung WM55H, WM55R and WM55B displays. It supports VESA mounting patterns 200 x 200, 300 x 300 and 400 x 400 mm and enables easy switching between portrait and landscape orientations. The mount features an adjustable tilt with positions 0°, ±2.5° and ±5° and a spring mechanism that allows rotation with minimal effort while locking securely in the selected end position.

Advantages

The design provides smooth rotation between portrait and landscape orientations and locks into the chosen end position without manual unlocking. The spring-assisted mechanism reduces effort required to rotate the display. Multiple VESA patterns increase compatibility with the supported Samsung models.

Suitable for

• Mounting Samsung WM55H displays
• Mounting Samsung WM55R displays
• Mounting Samsung WM55B displays

Key specifications

• Compatible screen models: Samsung WM55H, WM55R, WM55B
• VESA compatibility: 200 x 200, 300 x 300, 400 x 400 mm
• Tilt positions: 0°, ±2.5°, ±5°
• Rotation: portrait and landscape orientations
• Maximum load: 45 kg
• Colour: white

How to use

Attach the mount to a suitable load-bearing wall following the manufacturer’s installation instructions for secure anchoring. Fix the display to the VESA adapter using the appropriate VESA pattern and fasteners. Use the spring-assisted rotation to turn the screen between portrait and landscape; the mount will lock into the selected end position. Adjust the tilt to one of the available inclination settings to achieve the desired viewing angle.

Recommendations

Ensure wall material and fixings are rated for the specified maximum load before installation. Use the correct VESA screws for the display model and periodically check fasteners for tightness.
