Nástenný držiak na TV Hagor WH 85 F-HD 2,79 m (110 palcov) čierny

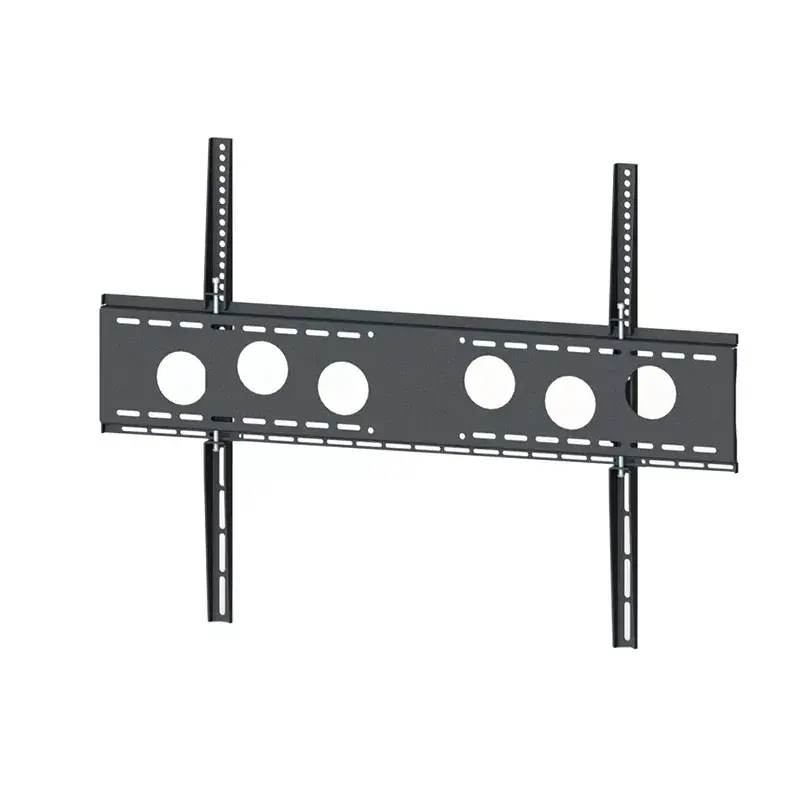

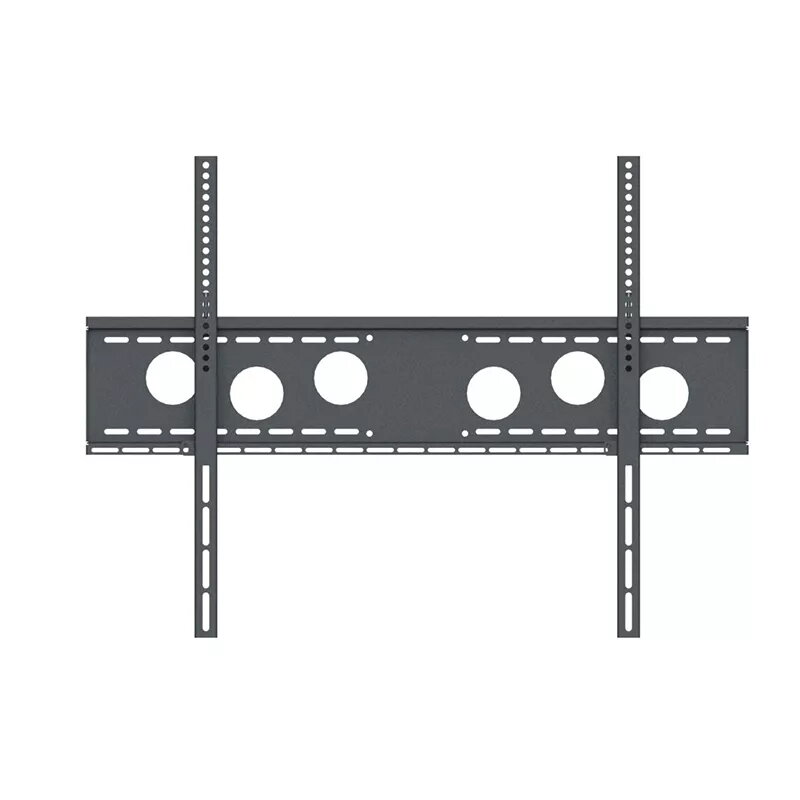

WH 85 F – HD is a fixed wall mount for flat screens from 55 to 110" (140–279 cm) that can be used in both landscape and portrait orientation. It supports VESA attachment patterns from 50 x 50 mm up to 800 x 600 mm and includes the 125 hole pattern for optional adaptation to HAGOR stand or ceiling systems. The mount is designed for heavy-duty use with a maximum load capacity of 125 kg and a minimal wall distance of just 32 mm. The slim holder is finished in black powder coating and includes an integrated bubble level and a height compensation of up to 10 mm. A supplied padlock allows the bracket to be secured against theft.

Advantages

The WH 85 F – HD offers a very high load capacity (125 kg) suitable for very large and heavy displays. Its broad VESA compatibility (50 x 50 mm to 800 x 600 mm) and the additional 125 hole pattern ensure easy adaptation to various HAGOR systems. The slim, black powder-coated construction is impact- and scratch-resistant and keeps the display close to the wall with only 32 mm clearance. Built-in bubble level and 10 mm height compensation simplify precise installation, while the supplied padlock increases security against theft.

Suitable for

• Mounting large LED/LCD screens from 55" to 110" (140–279 cm)
• Heavy displays up to 125 kg in commercial and residential settings
• Situations requiring portrait or landscape orientation
• Integration with HAGOR stand or ceiling systems using the 125 hole pattern

Key specifications

• Maximum screen size: 110" (279 cm)
• Maximum weight capacity: 125 kg

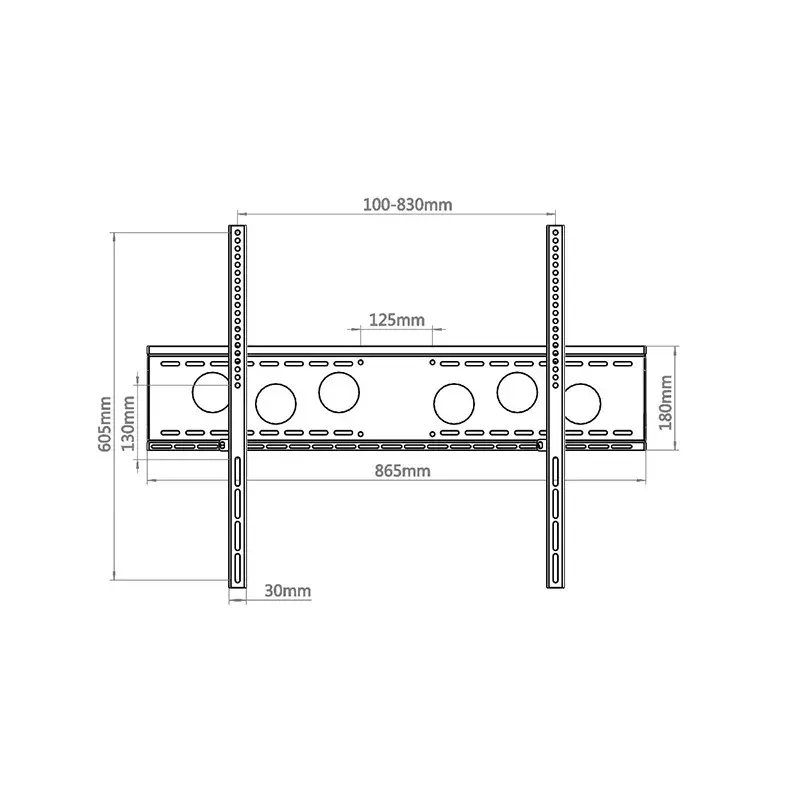

• VESA compatibility: 50 x 50 mm up to 800 x 600 mm
• Wall distance: 32 mm
• Height compensation: up to 10 mm
• Finish: black powder-coated, impact- and scratch-resistant

How to use

Attach the mount to a suitable load-bearing wall using appropriate fixings for the wall material. Fasten the display to the mount using compatible VESA screws within the supported range (50 x 50 mm to 800 x 600 mm). Use the integrated bubble level to align the bracket and apply up to 10 mm height compensation to achieve the desired vertical position. Secure the bracket with the supplied padlock if theft protection is required. Follow the display manufacturer’s instructions for safe handling and mounting.

Recommendations

Ensure the wall and fixings can support the combined weight of the bracket and the display (up to 125 kg). Use appropriate anchors for the wall type, verify VESA compatibility before installation, and, for heavy or high installations, consider professional mounting to ensure safety and stability.
