Nástenný rack Digitus DN-19 09U-I-OD

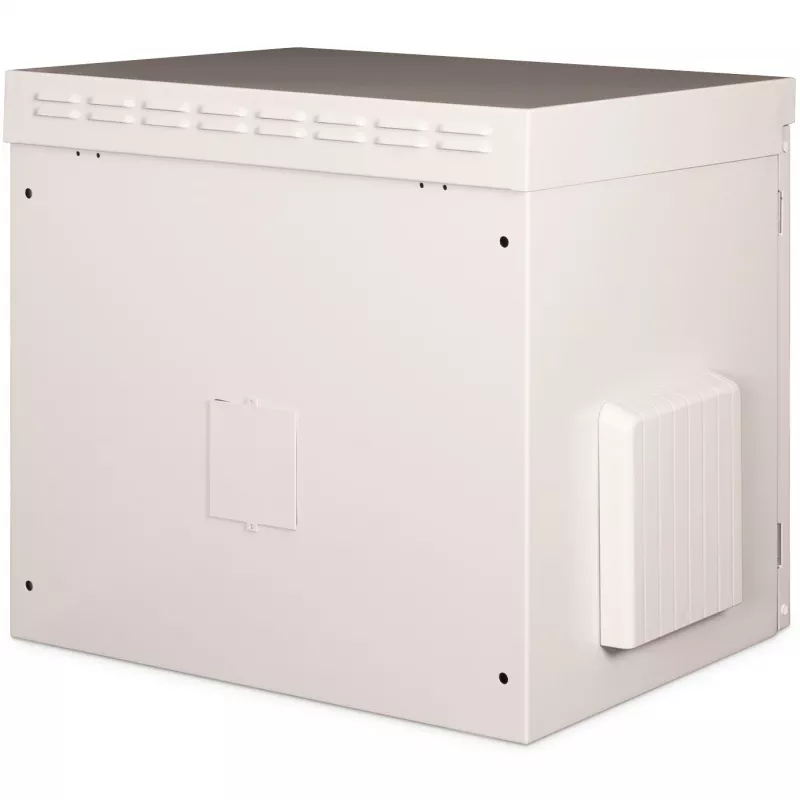

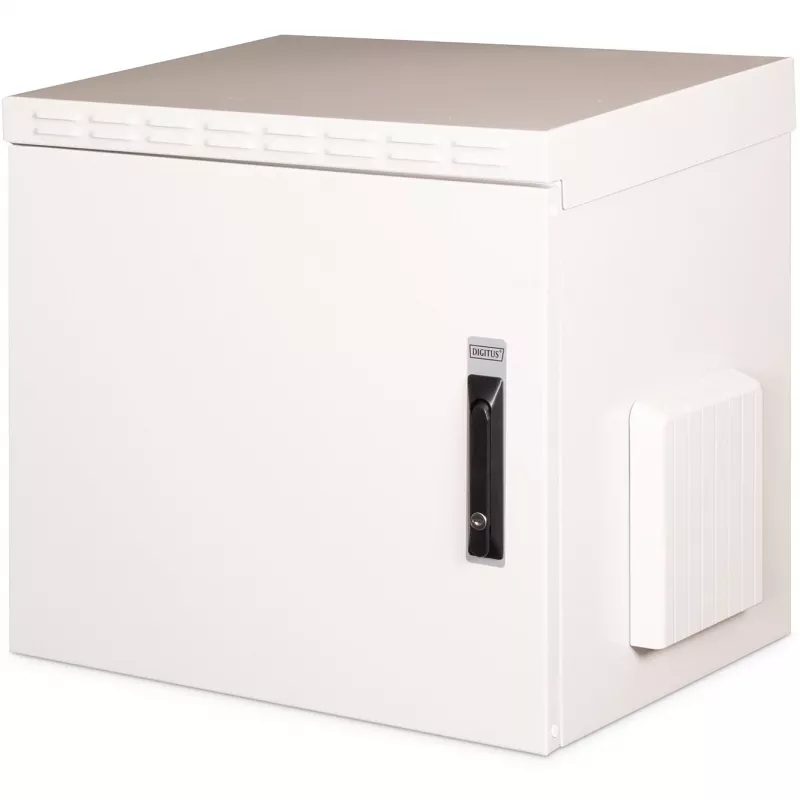

The DIGITUS Wall Mounting Cabinet IP55 (DN-19 09U-I-OD) is an outdoor-rated 19" network rack designed for industrial and external installations. Constructed from up to 2.0 mm sheet steel and finished in grey (RAL 7035) with electrostatic powder coating, the cabinet provides protection against dust and water jets in accordance with IP55. It measures 600 mm in width, 450 mm in depth and 450 mm in height, and supports secure mounting on walls using the enclosed bracket; free-standing use is possible with an optional plinth.

Advantages

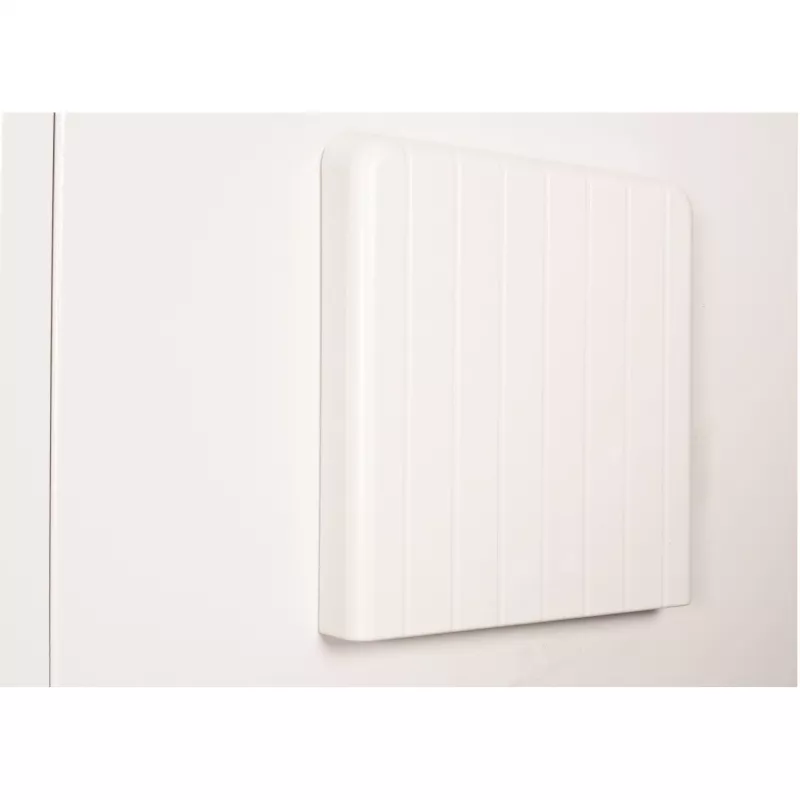

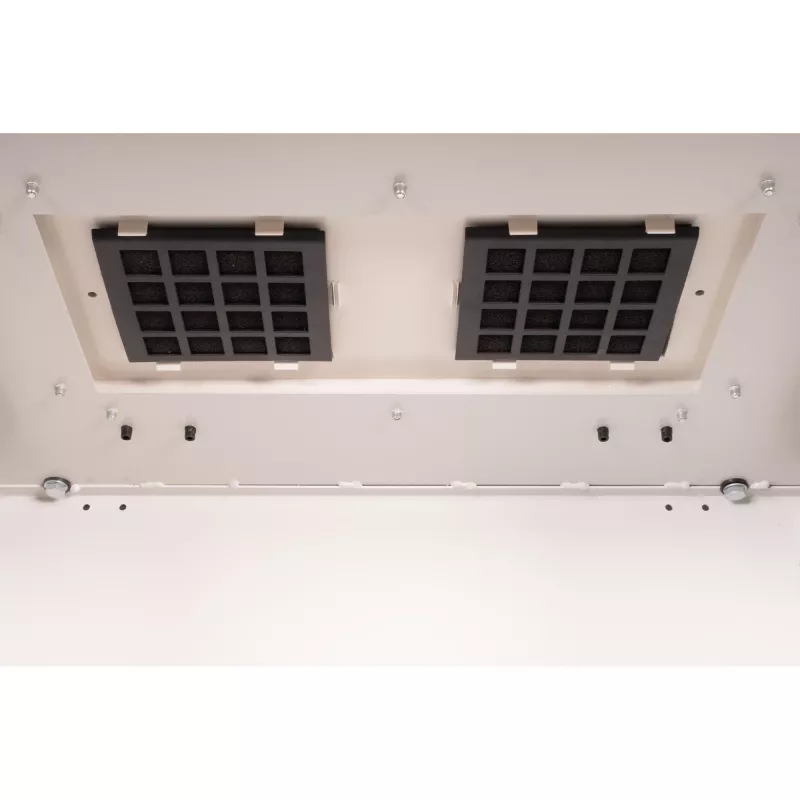

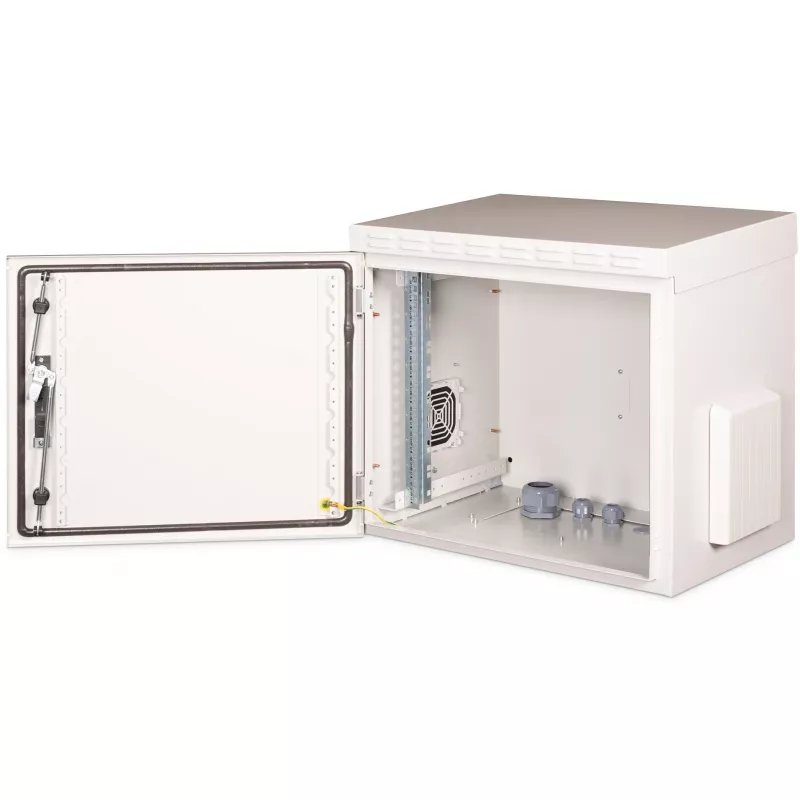

The cabinet offers IP55 protection for reliable operation in harsh outdoor environments and features a steel front door with a lockable pivot lever and a 3-point locking mechanism for enhanced security. Inside are adjustable, galvanized 19" profile rails with rack-unit markings readable in both directions, and the roof includes a filtered area to accommodate a fan module. Additional design details such as an earthing lead, welded U-shaped strengthening bars and an effective gasket system improve mechanical stability and sealing.

Suitable for

• Outdoor network equipment enclosures exposed to rain, dust, hail or snow
• Industrial control cabinets and field network installations
• Wall-mounted server, switch and router installations requiring IP55 protection
• Environments needing secure, lockable 19" rack space up to 9U

Key specifications

• Model: DN-19 09U-I-OD
• Mounting: Wall mounted (optional plinth for free-standing)
• Dimensions (W×D×H): 600 × 450 × 450 mm
• Rack size: 19"; Usable rack units: 9U
• Material: Sheet steel (up to 2.0 mm)
• Protection class: IP55 (dust protected, protected against water jets)
• Colour: Grey (RAL 7035)
• Maximum recommended load: 100 kg (see manufacturer guidance)

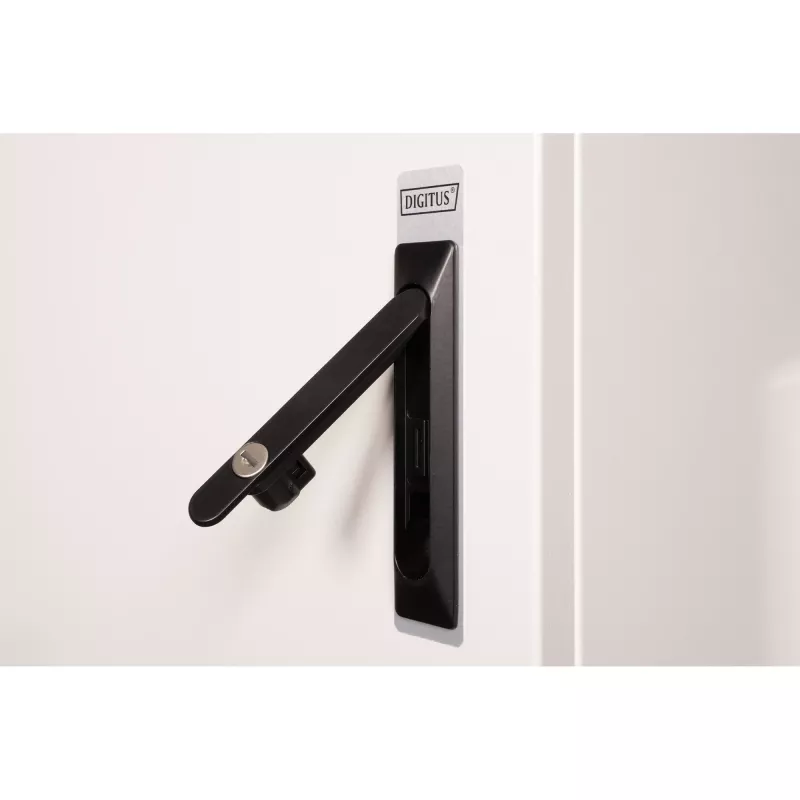

• Locking: Steel front door with lockable pivot lever and 3-point locking

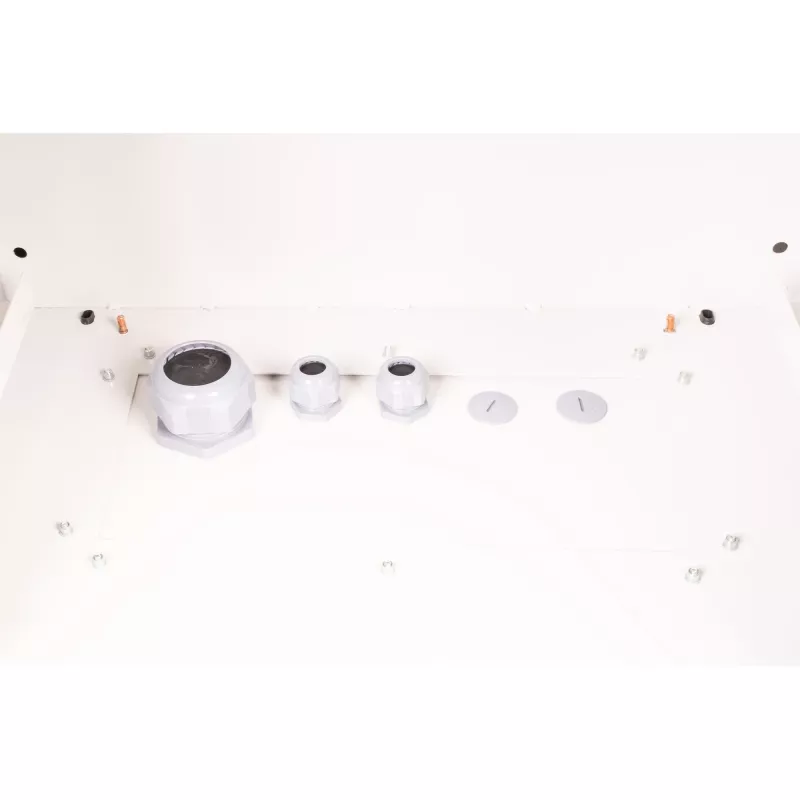

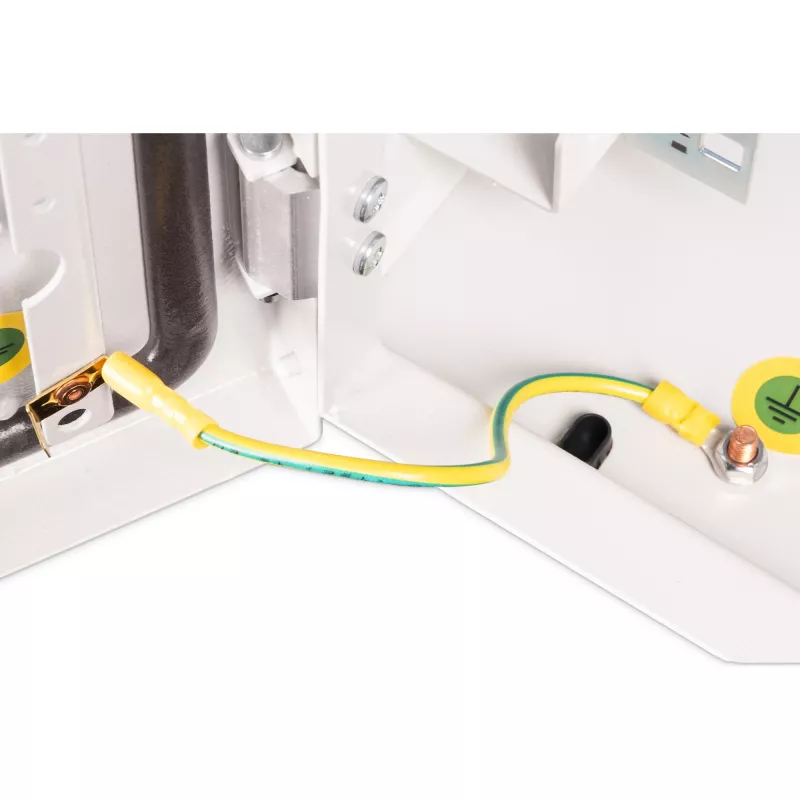

• Accessories: Insulated PG cable glands, earthing lead, galvanized 19" rails (adjustable depth)

How to use

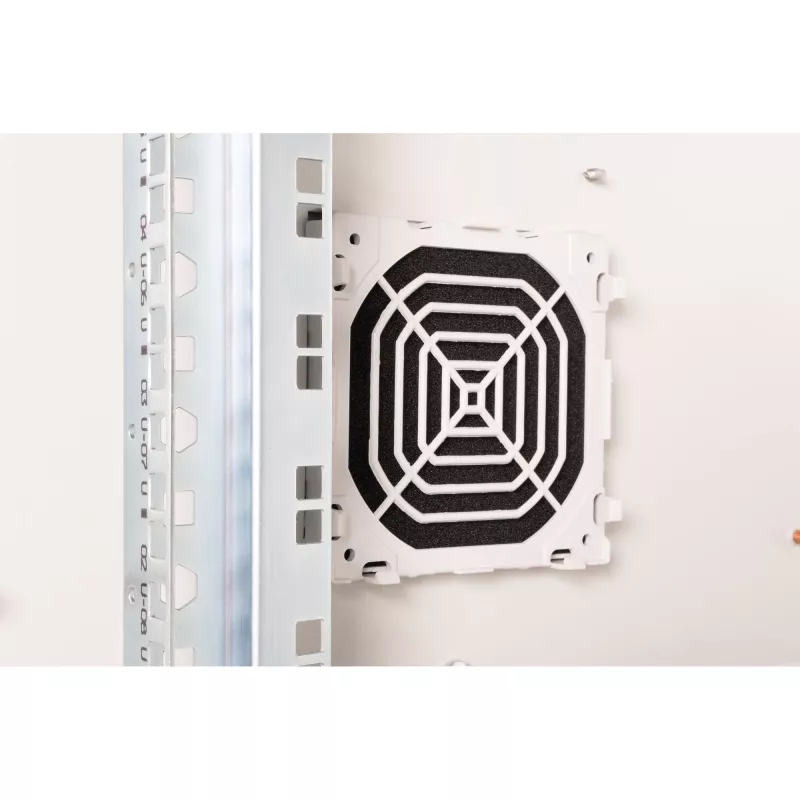

Install the cabinet on a suitable load-bearing wall using the supplied mounting bracket and appropriate anchor fixings for the wall material. Fit equipment on the internal 19" profile rails and adjust their depth as needed, ensuring rack-unit markings align for correct placement. If ventilation is required, mount a fan module in the roof filtered area and use the integrated fan filter housing to maintain filtered air intake. Connect the earthing lead before powering installed equipment and route cables through the insulated PG cable glands to preserve IP protection.

Recommendations

For outdoor and industrial installations, ensure correct sealing of all cable entries and use appropriate conduit or gland sizes. Regularly inspect gaskets, filters and locks for wear and replace components as needed to maintain IP55 protection. When using the cabinet free-standing with a plinth, verify stable placement and proper anchoring where applicable.
