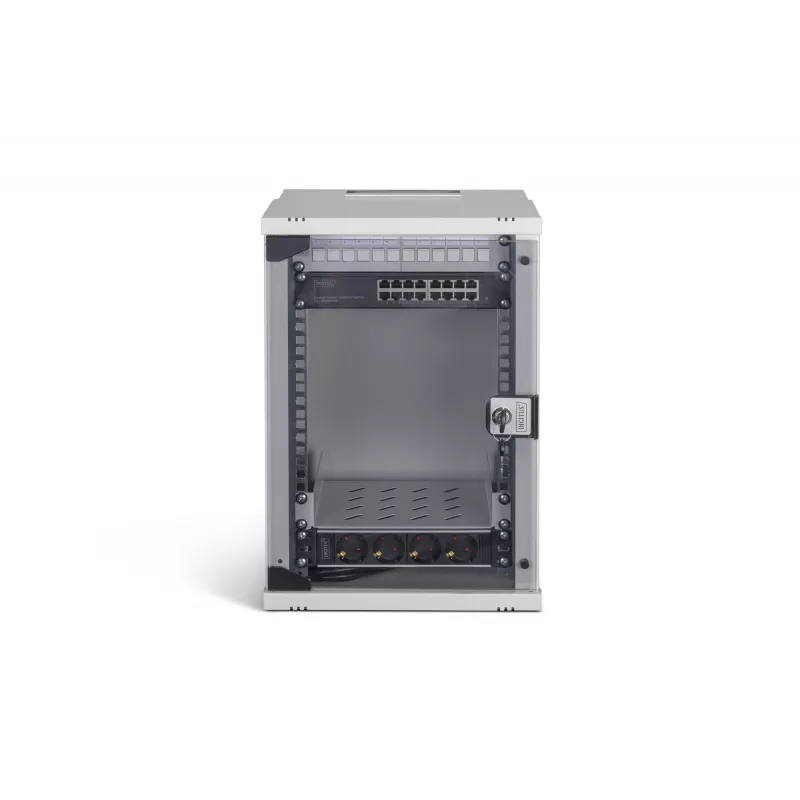

Nástenný rack Digitus DN-49102-SET 9U 315 x 300 mm sivý

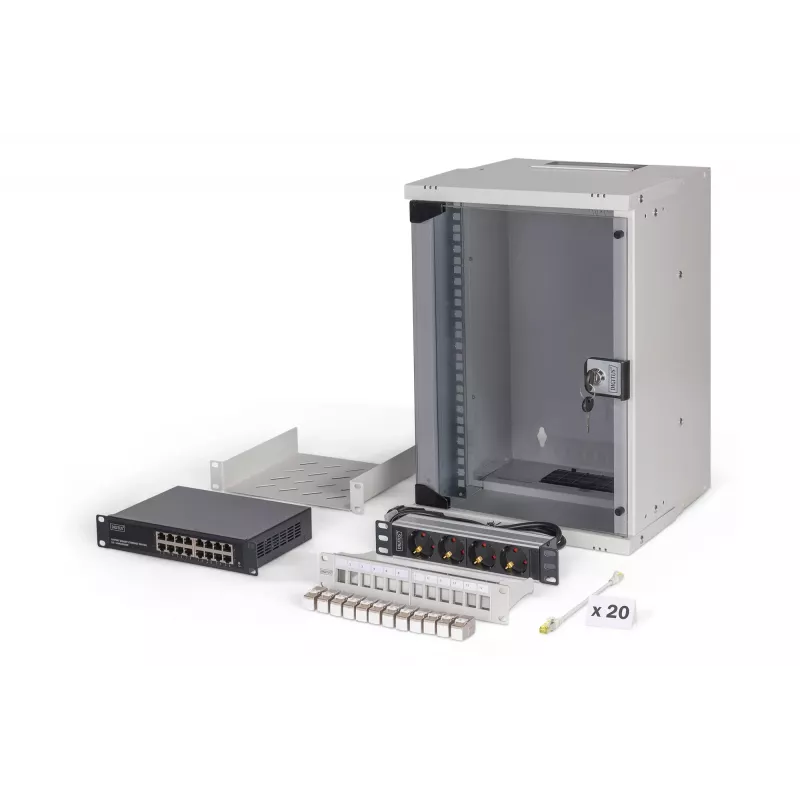

Small network installations often suffer from messy cabling, mismatched components, and wasted time sourcing individual parts. The DIGITUS DN-49102-SET solves this by bundling a compact 9U wall-mounted cabinet with a Gigabit switch, patch panel, Cat6A keystone modules, power strip, shelf, and patch cables—all matched and ready to assemble.

Who is it for

This kit is ideal for home networks, smart-home distribution points, small offices (SOHO), and sub-distribution locations where space is limited but reliable connectivity is essential. It suits installers and DIY users who want a tidy, professional setup without the hassle of selecting separate components.

Main features

• 9U wall-mounted cabinet, 254 mm (10") form factor, unassembled, dimensions 460 x 315 x 300 mm (H x W x D)
• 16-port Gigabit Ethernet switch (IEEE 802.3/802.3u/802.3ab/802.3x)
• 12-port modular patch panel with 12 shielded Cat6A keystone modules
• 20 x 0.25 m Cat6A S/FTP patch cables for internal patching
• 1U power strip with 4 earthed outlets, 250 VAC, 16 A
• 1U fixed shelf for non-rack devices
• Lockable safety glass front door and removable, lockable side panels
• Steel construction, grey (RAL 7035), IP20, max load 60 kg
• Includes mounting material and keys for door and side panels

Specifications

• Rack capacity: 9U
• Rack type: Wall-mounted cabinet
• Rack standard: 10" (254 mm)
• External dimensions: 450 x 540 x 300 mm (H x W x D)
• Material: Steel sheet
• Colour: Grey (RAL 7035)
• Load capacity: 60 kg
• Protection rating: IP20
• Mounting rails: 2 pairs, adjustable depth
• Ventilation: Passive, prepared for optional fan unit
• Compliance: RoHS, REACH

Tips

Plan cable routes before mounting to use the top, bottom, and rear cable entries effectively. The adjustable mounting rails allow you to fit deeper equipment if needed. Keep the included keys in a safe place—they are required for securing the cabinet.
