Nástenný rack Equip štíhly Flex 19' skriňa 5U RAL9005 čierna

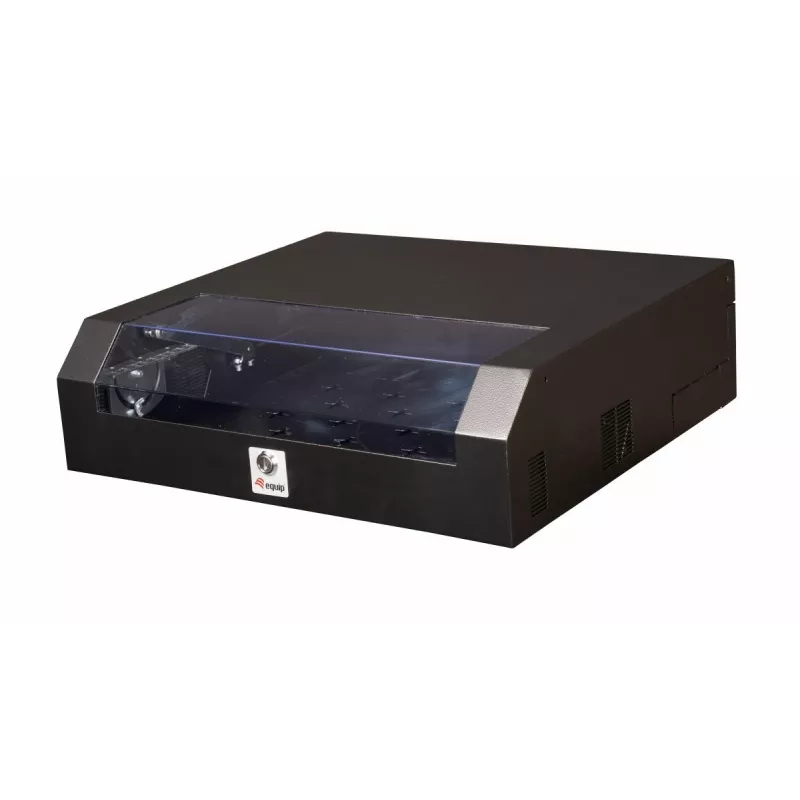

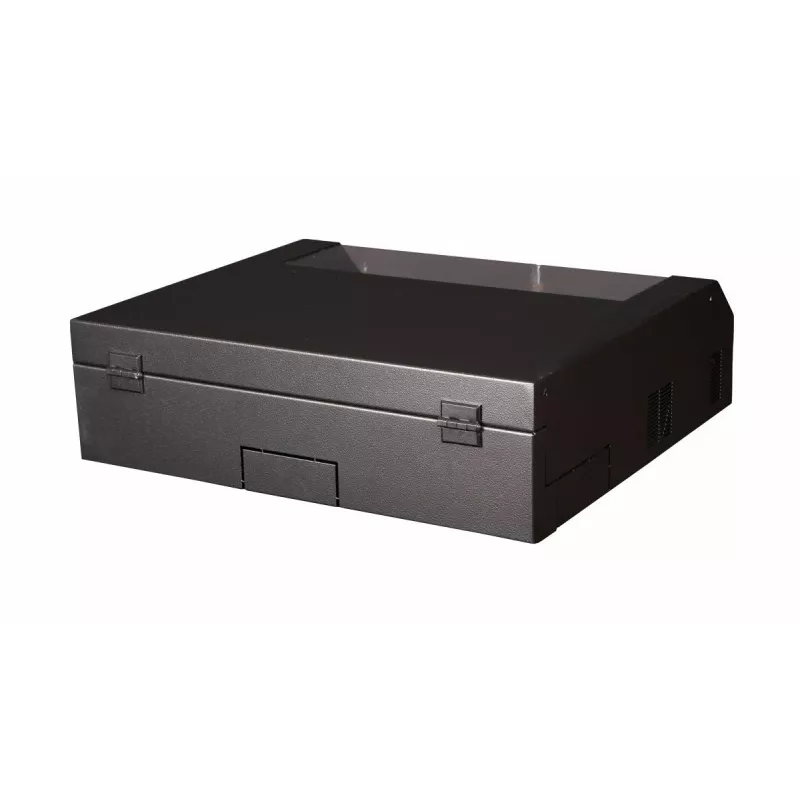

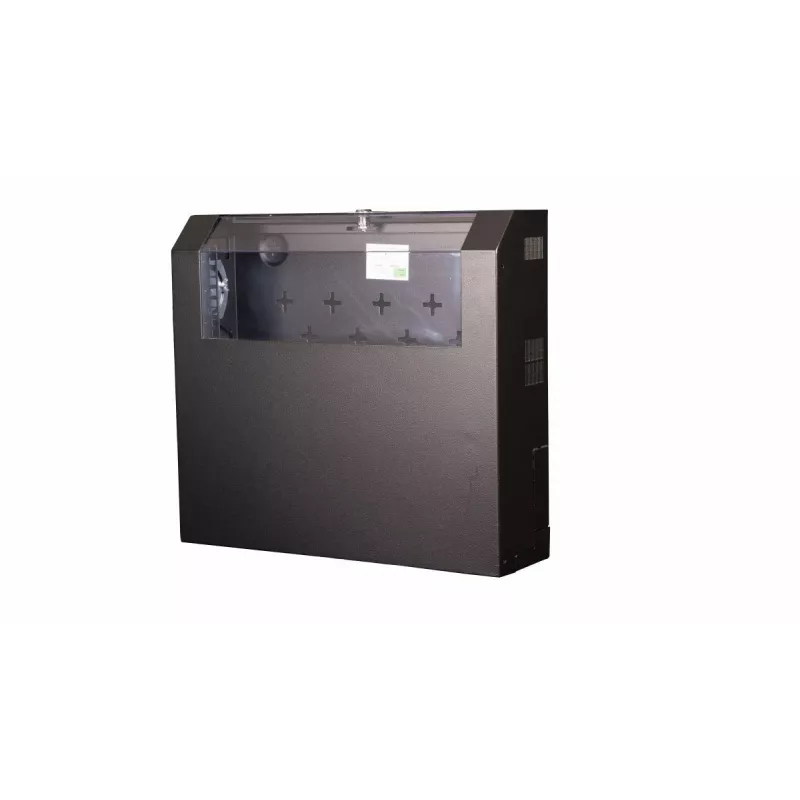

The Equip Slim Flex 19" Wall Mounted Cabinet (5U, RAL9005) is a compact wall rack for housing active and passive networking components. It supports a maximum load of 30 kg, includes lockable front access for security and comes with rack rails that offer flexible mounting positions. Its slim black design (RAL9005) saves floor space and fits office or home environments while providing a 5U organised enclosure for small network installations.

Advantages

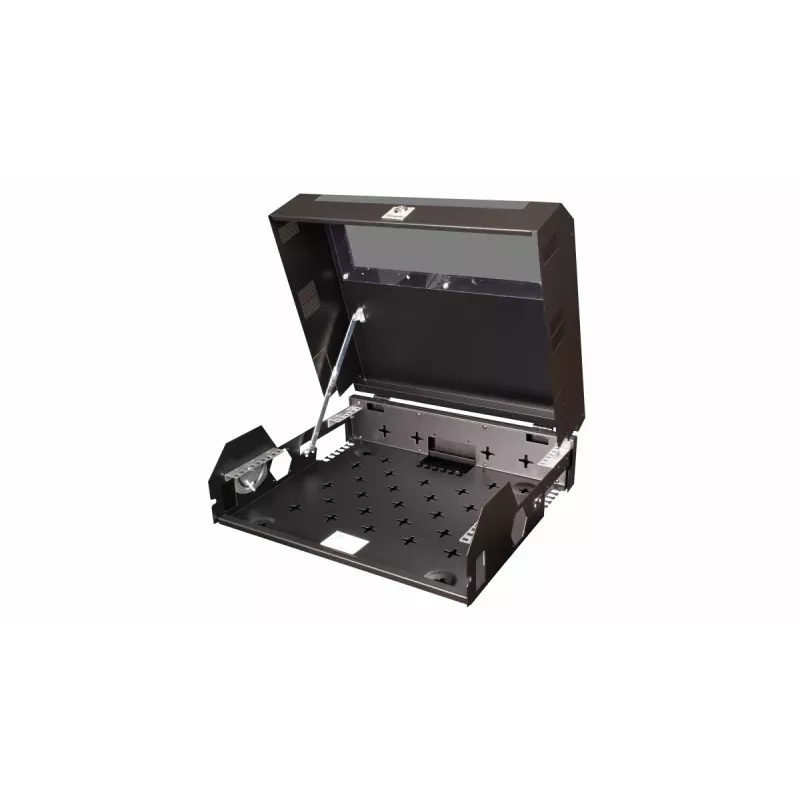

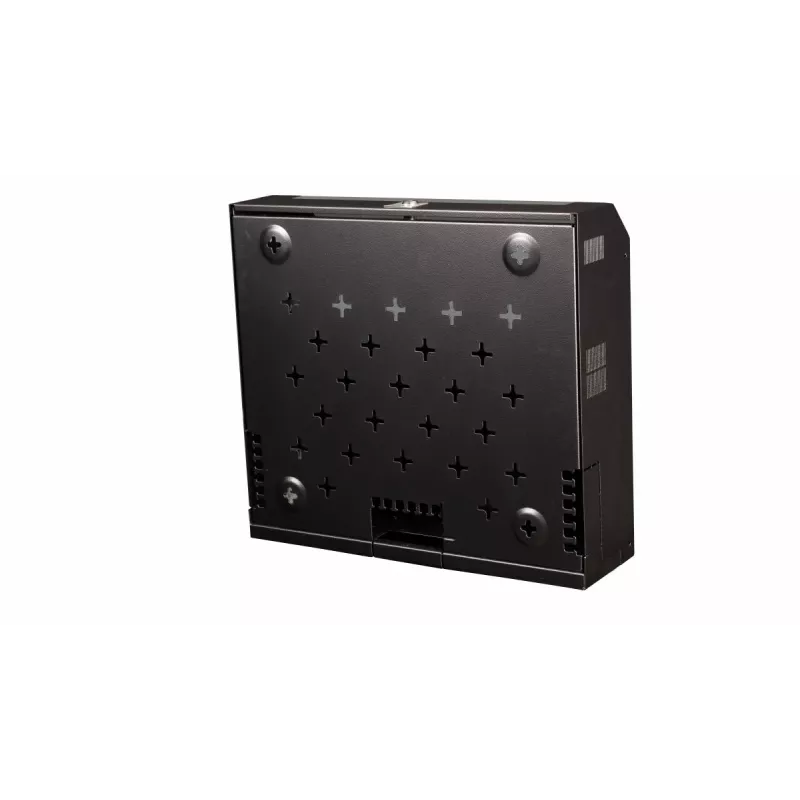

This 5U wall cabinet is lightweight yet sturdy, weighing 8.5 kg while supporting up to 30 kg of equipment. The cabinet provides flexible rail options — a rotatable 3U front rail (vertical, horizontal or angled) and a fixed 2U rear rail — allowing both active and passive components to be mounted efficiently. Pre-punched holes in the lower housing accommodate devices that are not rack-mountable, and the cabinet is secured with a key lock for controlled access.

Suitable for

• Small server or network equipment installations in offices and homes
• Mounting active devices (switches, routers) and passive components (patch panels, cable management)
• Places where floor space is limited and wall mounting is preferred

Key specifications

• Rack capacity: 5U total with 2U/3U rail configuration
• Maximum load: 30 kg
• External dimensions (H×W×D): 475 × 500 × 475 mm
• Weight: 8.5 kg
• Colour: Black (RAL9005)

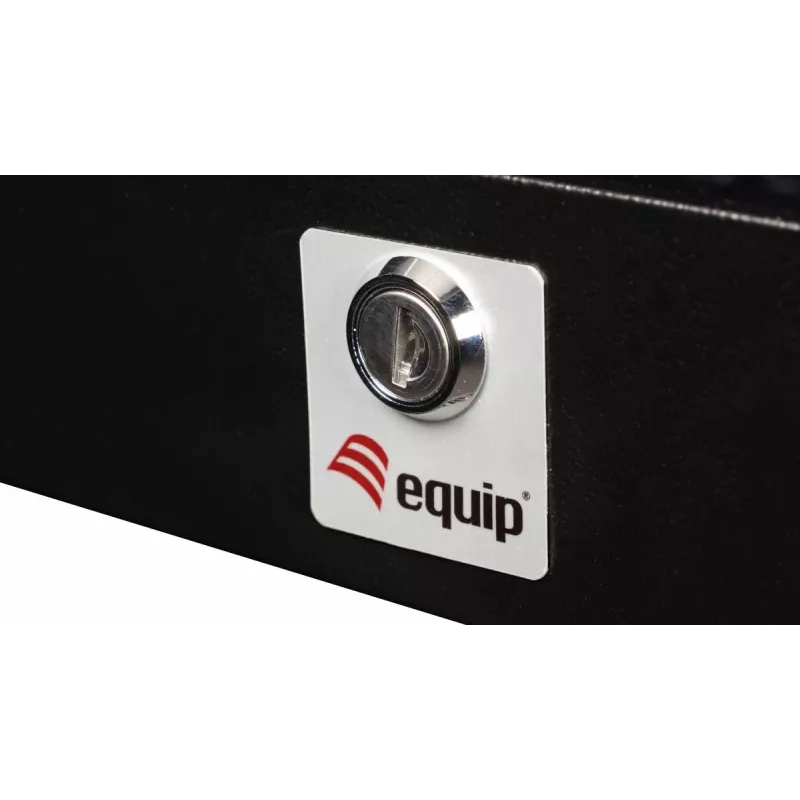

• Security: Key lock included
• Brand/Model: EQUIP ESF-05-B

How to use

Mount the cabinet securely to a suitable load-bearing wall using appropriate fasteners (not included). Choose the rail orientation that fits your equipment: rotate the front 3U rail to vertical, horizontal or an angled position and use the rear fixed 2U rail for passive components. Install rack-mountable devices on the rails and place non-rack equipment in the lower housing using the pre-punched mounting holes or add an optional device mounting plate if required. Lock the front access after installation to restrict access.

Recommendations

Ensure the wall and chosen fixings can safely support the cabinet and the full equipment weight (up to 30 kg). Allow adequate ventilation around active equipment and avoid placing heat-sensitive devices directly against the cabinet walls. Use cable management accessories to maintain airflow and organised cabling.
