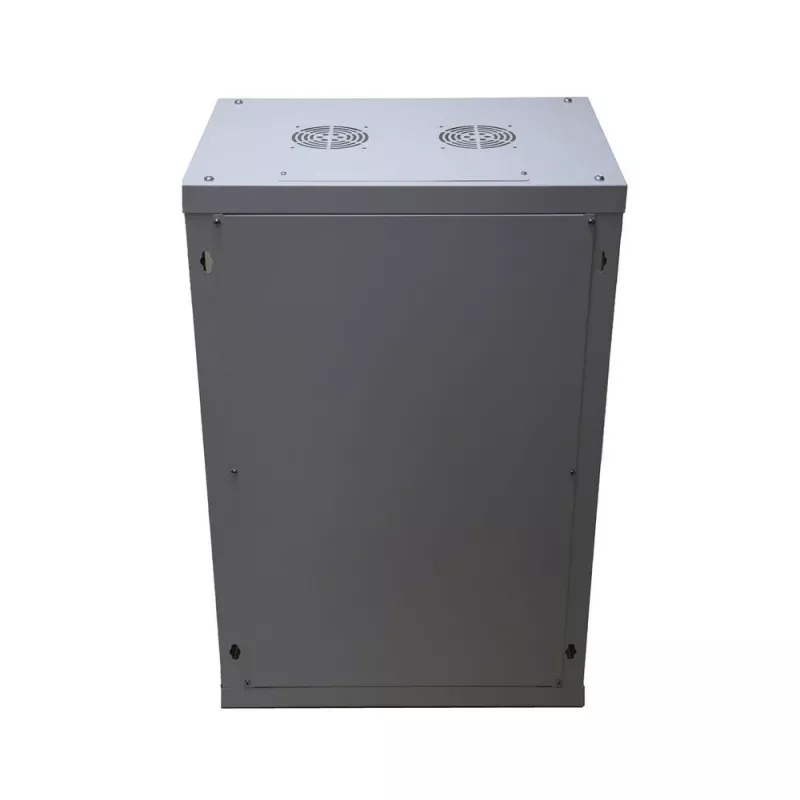

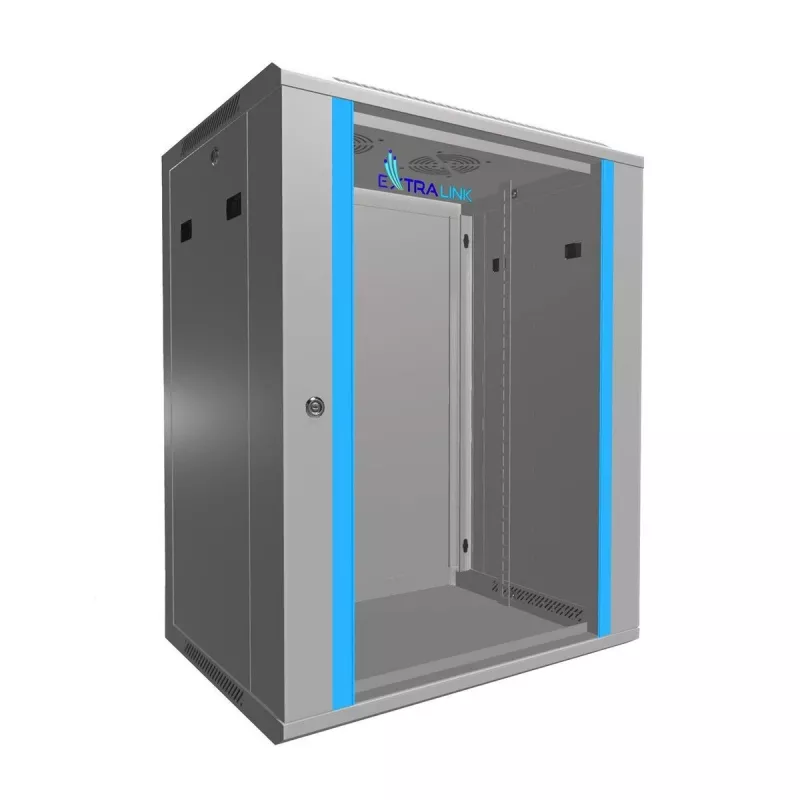

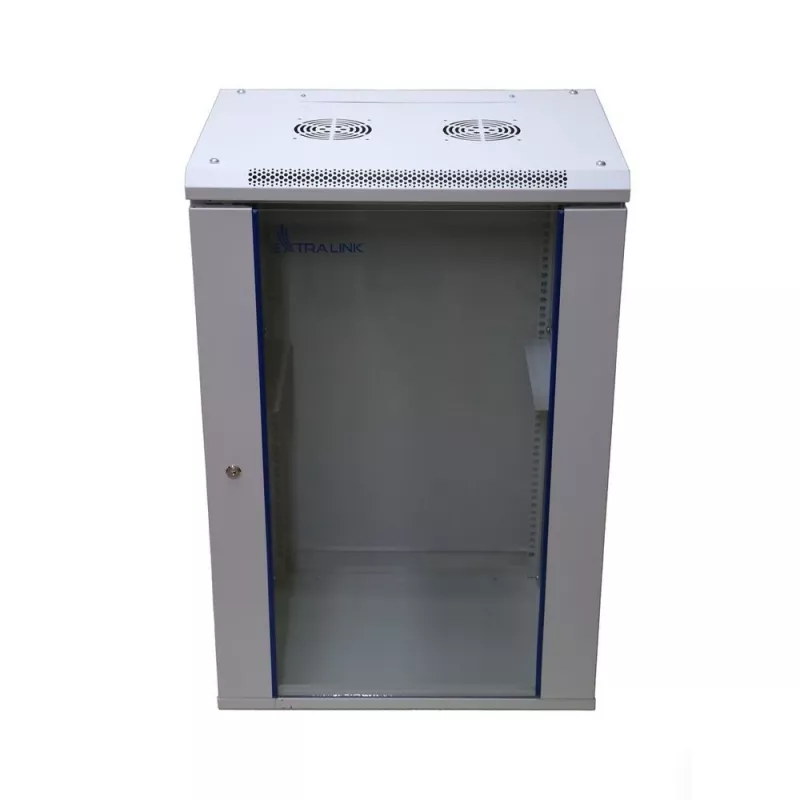

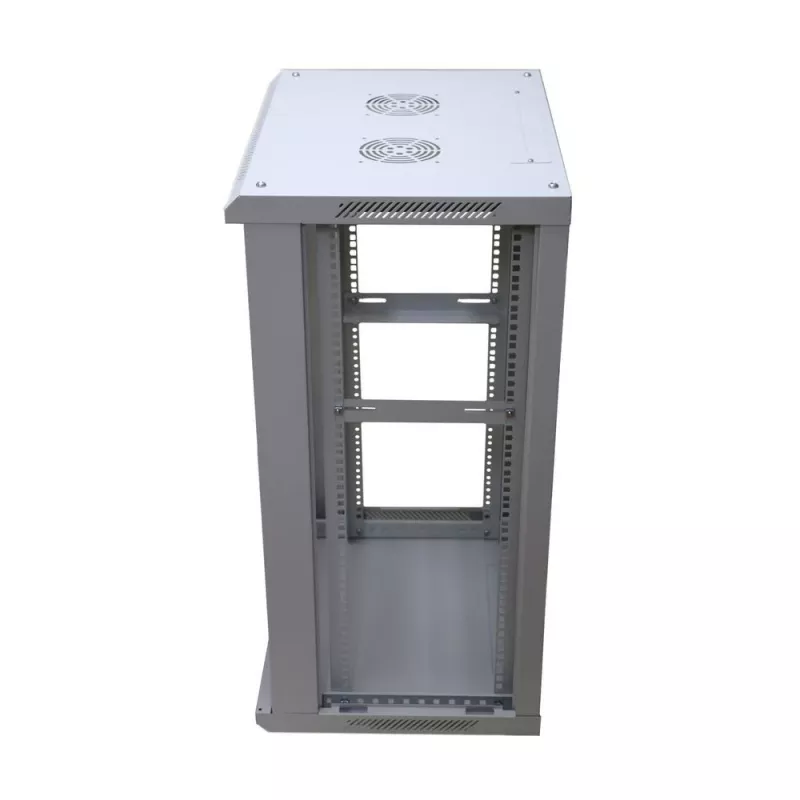

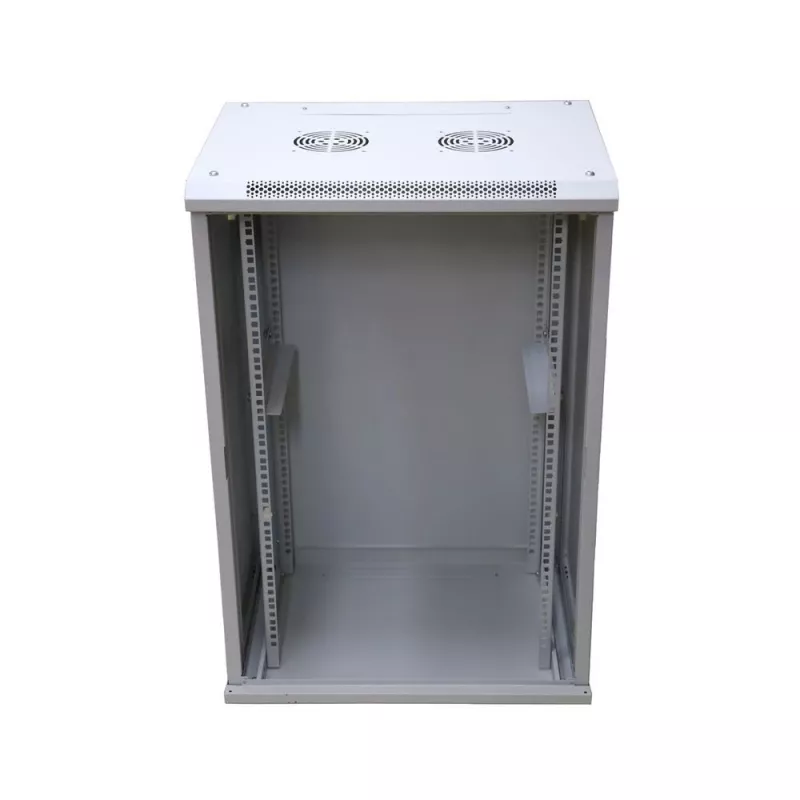

Nástenný rack Extralink EX.14336 15U sivý

Extralink 15U wall-mounted rack cabinet in grey, model EX.14336, is intended for mounting network equipment, servers and CCTV devices in offices, server rooms and control rooms. The cabinet body is made of cold-rolled steel, while the front door is tempered glass with reversible opening to the left or right. The cabinet provides clear unit markings on the vertical rails and offers convenient access to equipment and cabling.

Advantages

The cabinet combines a sturdy cold-rolled steel construction with a tempered glass front door and reversible hinges for flexible installation. Vertical rails are clearly marked for 15U mounting height. Side panels can be removed quickly thanks to snap fasteners, and the cabinet includes locks and keys for basic physical security. The ceiling has two cutouts for fan installation and an additional conduit opening for cable routing.

Suitable for

• Mounting network switches, patch panels and small servers
• CCTV DVR/NVR and surveillance equipment
• Space-saving wall-mounted installations in offices and technical rooms

Key specifications

• Model: Extralink EX.14336
• Rack height: 15U (vertical rails marked)
• Overall height: 775 mm
• Width: 600 mm
• Depth: 450 mm
• Maximum supported load: 300 kg
• Colour: Grey
• Front door: Tempered glass, reversible opening
• Side walls: Removable with snap fasteners; locks and keys included
• Ceiling: Two fan mounting locations and cable conduit opening

How to use

Mount the cabinet securely to a suitable wall surface following local building and safety regulations. Install equipment on the clearly marked 15U vertical rails, securing devices with appropriate rack screws and cage nuts. Use the removable side panels for easier access during installation and maintenance. If additional cooling is required, mount fans in the provided ceiling locations and route cables through the conduit opening.

Recommendations

The rack is suitable for medium-density installations; distribute equipment weight evenly and do not exceed the specified maximum load of 300 kg. Ensure proper ventilation and, when mounting heavy equipment, verify wall strength and use appropriate anchors.
