Nástenný rack Triton RBA-12-AS5-CAX-A1 12U/500 sivá

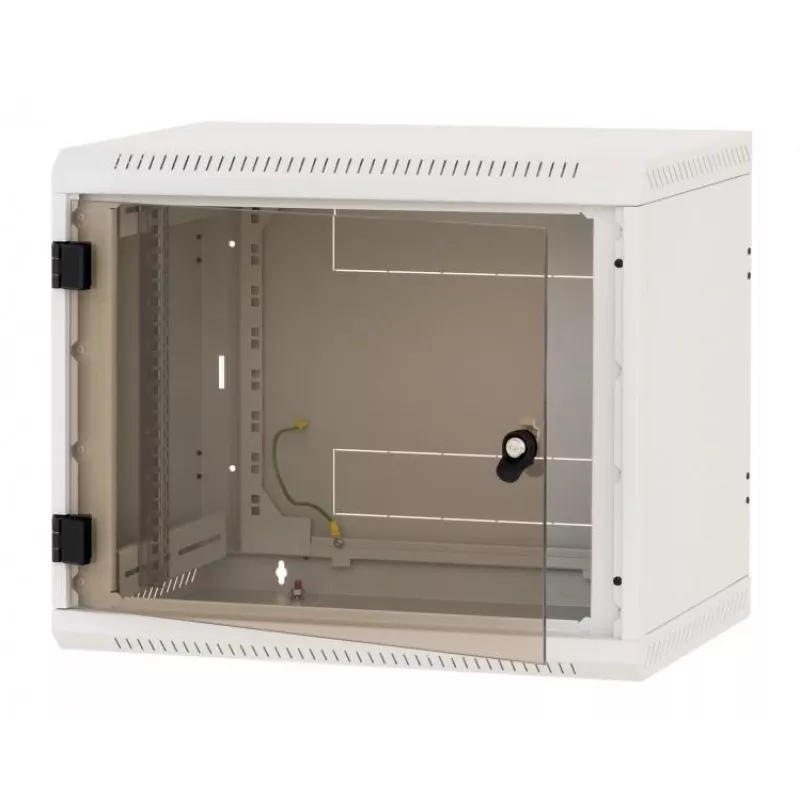

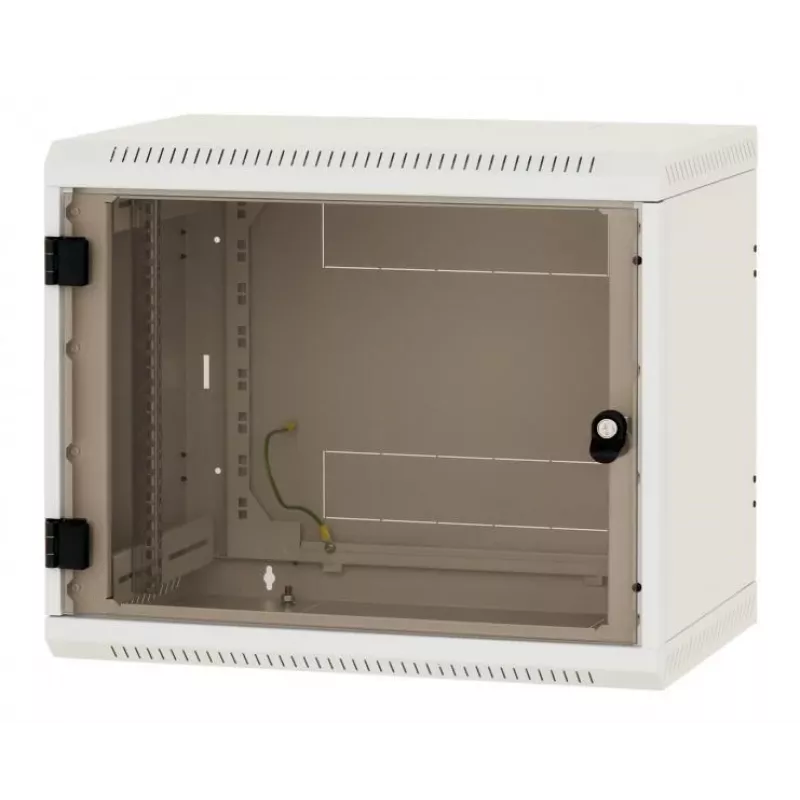

The Triton RBA-12-AS5-CAX-A1 is a 12U/500 wall-mounted 19" rack designed to organize and protect network and electronic equipment in a compact footprint. Built on the Delta B construction derived from the Delta S series, this grey cabinet features a glass door that opens up to 180° on robust hinges and comes in the 4S and 5S depth versions; exact dimensions are listed per model. Cable entries are provided on both the top and bottom and are closed with break-out style blanking panels for easy access. All 19" components mount to adjustable vertical rails, and perforated panels promote natural air circulation; forced cooling can be added using 19" fan units when required.

Advantages

The rack combines space-saving wall-mounted design with a sturdy frame and adjustable 19" vertical rails for flexible equipment installation. Its glass door offers visibility of installed devices while the 180° opening on strong hinges allows convenient access. Break-out blanking panels at the top and bottom simplify cable routing, and perforated surfaces provide passive ventilation with the option to fit 19" fans for active cooling. The product is delivered in a grey finish and supports typical small server, network and telecom installations up to the cabinet's rated load.

Suitable for

• Small network and server equipment in offices or telecom closets
• Patch panels, switches and routers that fit 19" mounting
• Environments requiring wall-mounted, space-efficient racks

Key specifications

• Form factor: 19" wall-mounted rack, 12U
• Depth indicator: 500 (approximate depth in decimetres indicated by model number)

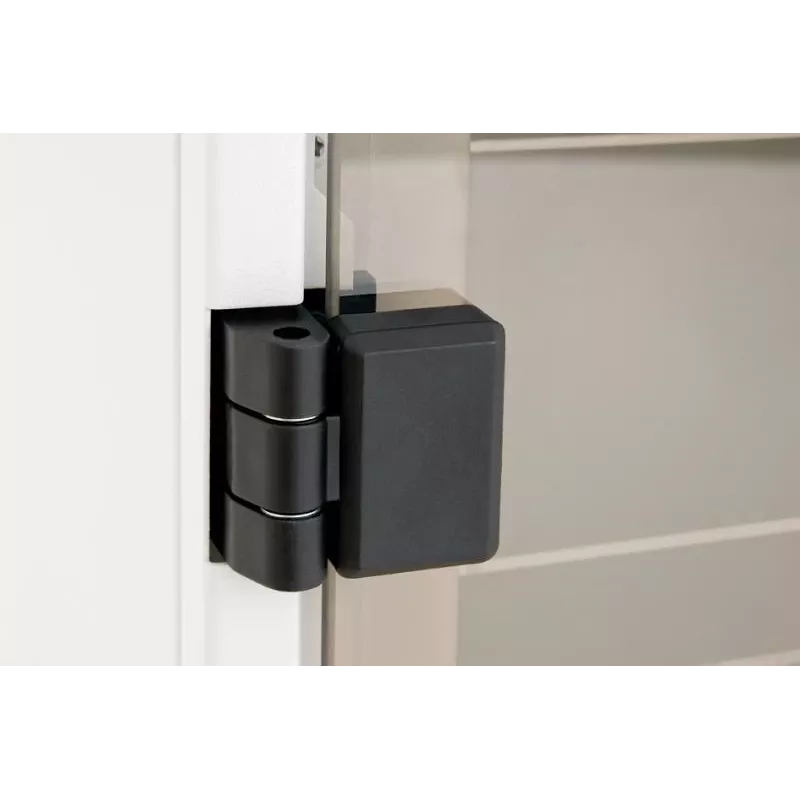

• Door: glass door with 180° opening on robust hinges
• Cable entries: top and bottom with break-out blanking panels

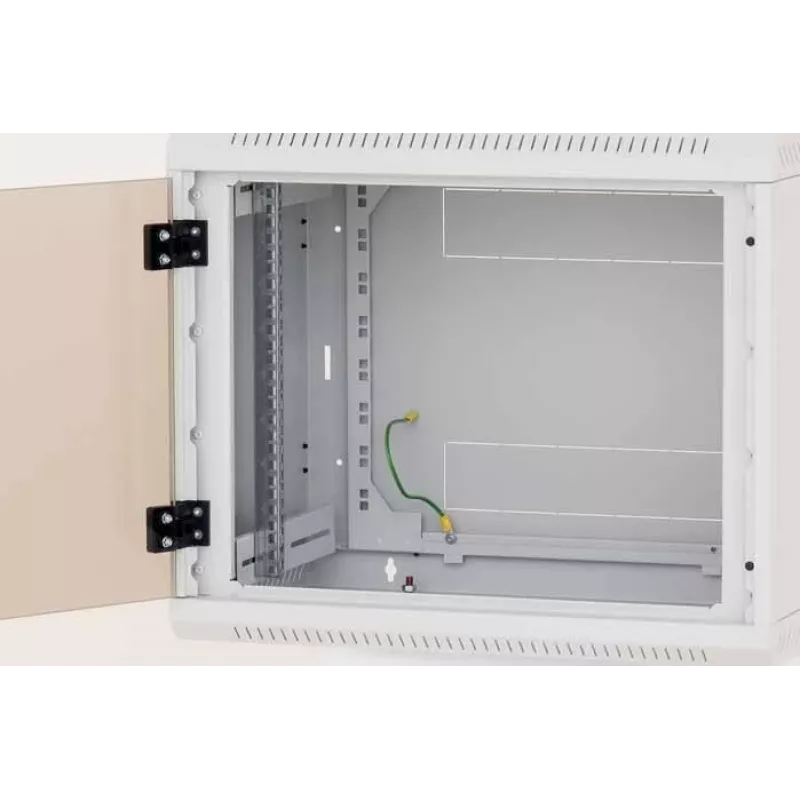

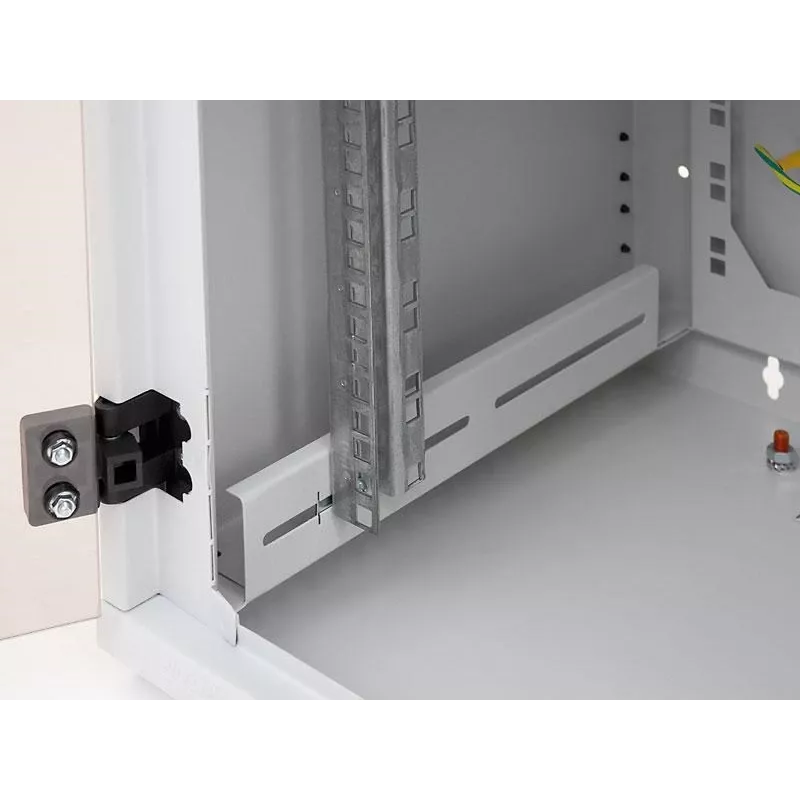

• Mounting: adjustable 19" vertical rails

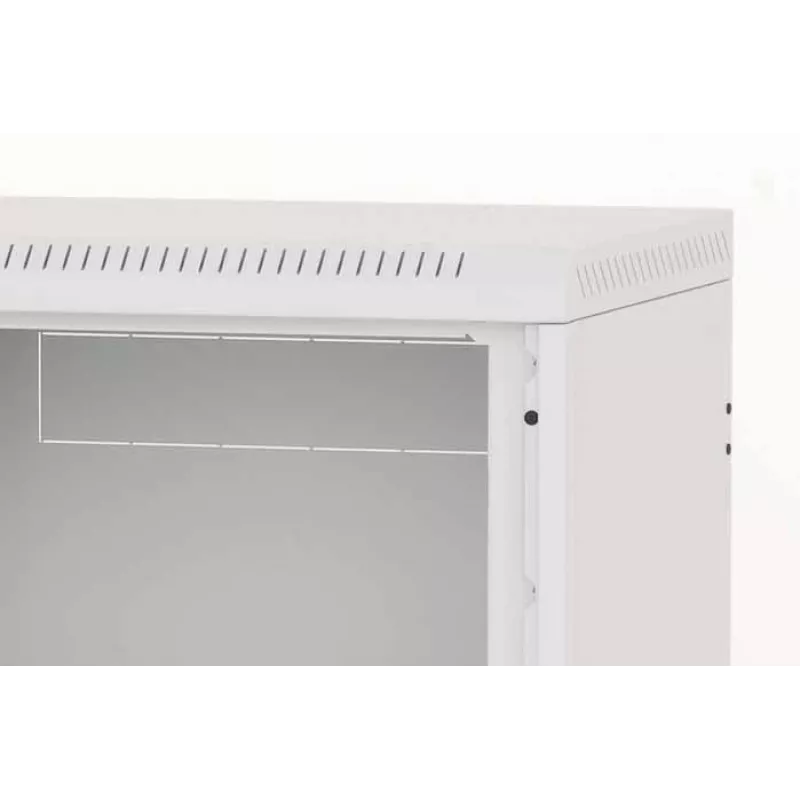

• Ventilation: perforated panels for natural airflow; supports 19" fan units for forced cooling
• Weight: 23 kg
• Color: Grey

How to use

Mount the rack securely to a suitable wall surface following local mounting rules and the cabinet’s installation instructions. Remove the blanking panels where cable entries are required, route power and data cables through the top or bottom openings, and secure them as needed. Install 19" equipment on the adjustable vertical rails and set the rails to the required depth for correct alignment. Use the glass door for equipment visibility and open it up to 180° for full access during installation and maintenance. If additional cooling is needed, install compatible 19" fan units into the cabinet.

Recommendations

Ensure the mounting surface and fixings support the cabinet weight plus installed equipment (observe the cabinet’s rated load). Maintain clear airflow through perforations and consider installing 19" fan units if heat-sensitive or high-power devices are used. Use proper cable management to avoid obstructing ventilation or door closure.
