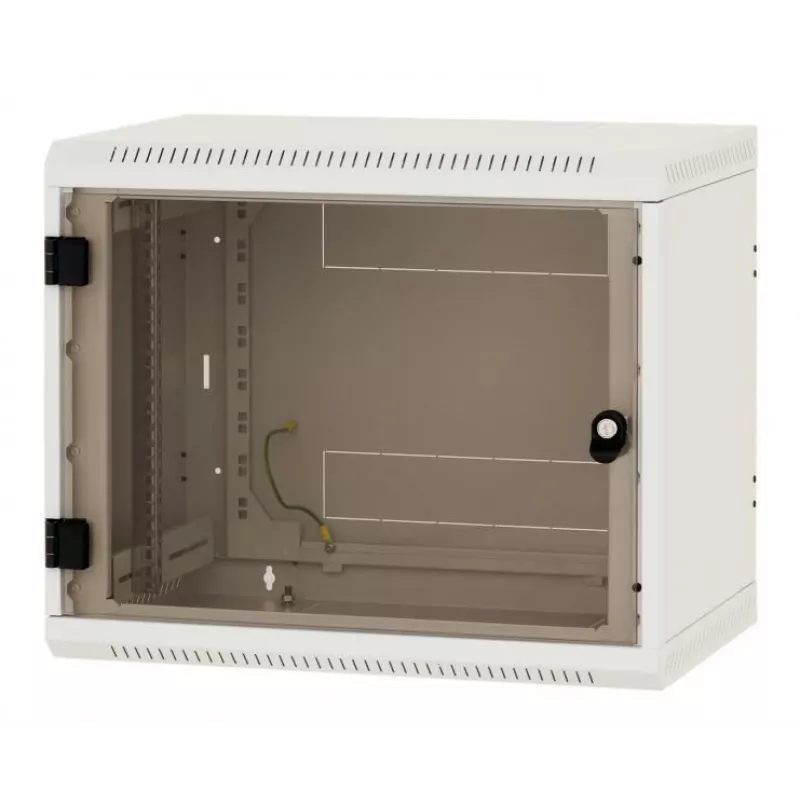

Nástenný rack Triton RBA-12-AS6-CAX-A1 12U biely

The fully welded wall-mounted cabinet Triton RBA-12-AS6-CAX-A1 is a 12U network rack designed for medium-size installations. It features a robust welded construction, adjustable 19" vertical rails and a standard glass door. Breakout-type blanking panels and optional frames with brush seals are provided for cable routing and dust protection.

Advantages

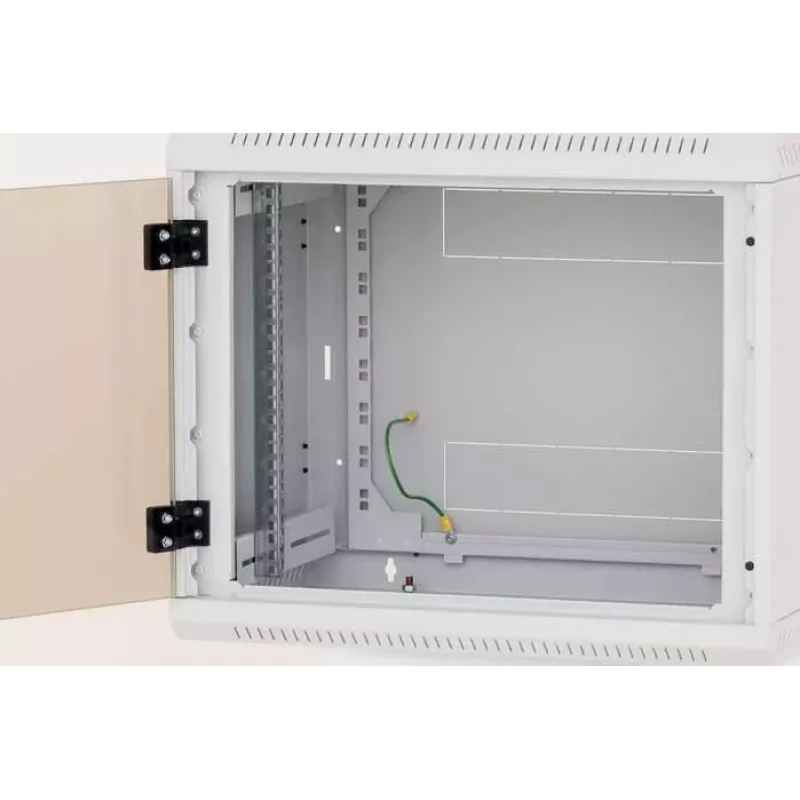

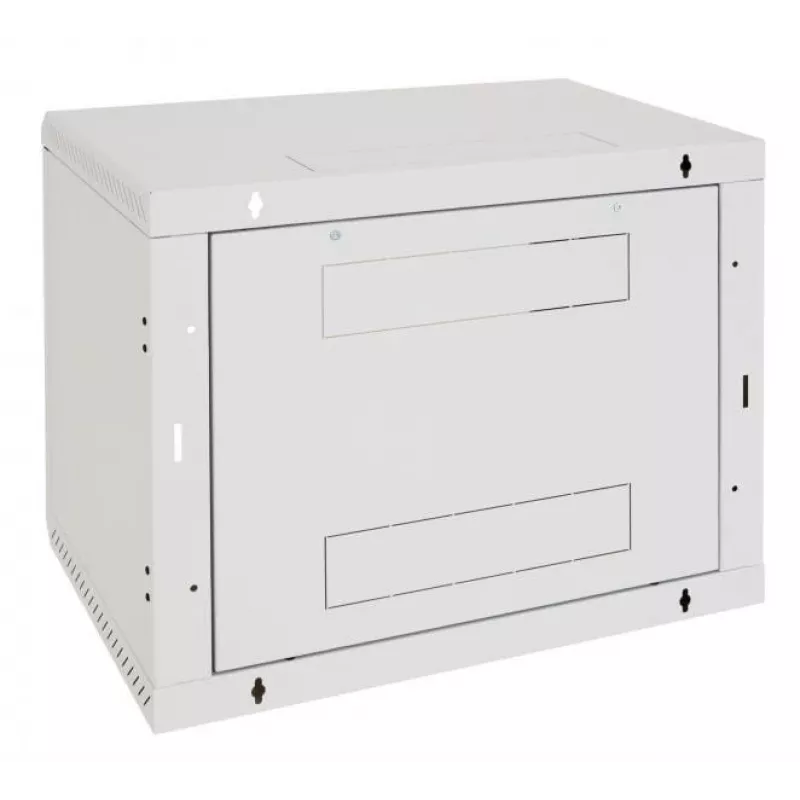

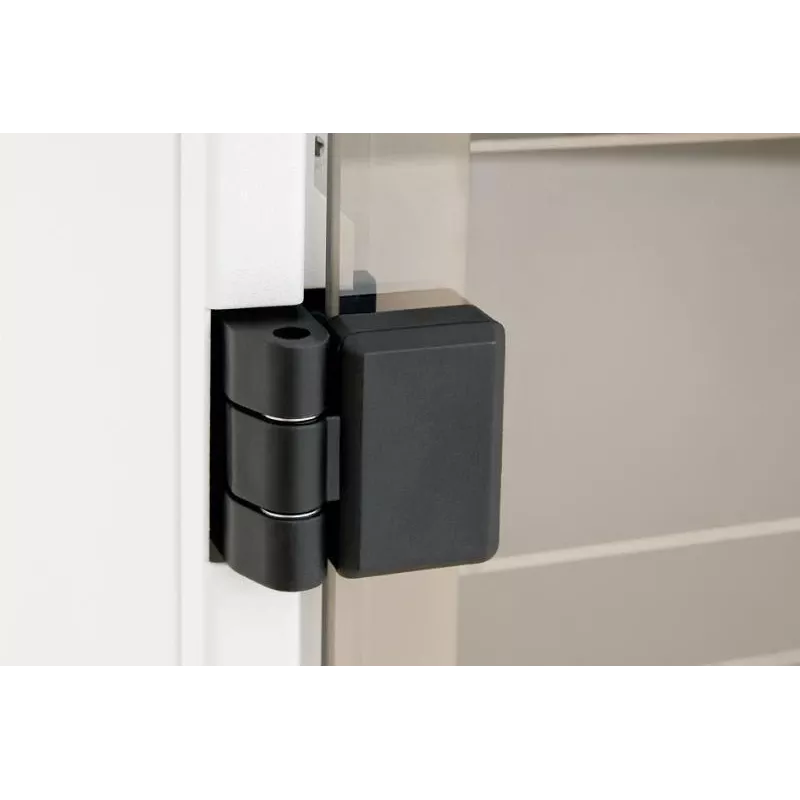

The cabinet offers a solid welded body that ensures mechanical stability and a clean appearance. Its hinge system allows nearly 180° door opening and the door can be easily removed for installation or maintenance. One pair of 19" vertical rails is freely adjustable to any depth, simplifying equipment mounting and cable management. Cable openings at the top, bottom and rear are covered with knockout blanking panels and the delivery includes a plastic frame and brush blanking panel to seal openings against dust.

Suitable for

• Small to medium server rooms and network closets
• Telecommunications and network equipment installation
• Patch panels, switches and rack-mountable devices up to 12U
• Environments requiring wall-mounted space-saving racks

Key specifications

• Rack capacity: 12U
• Size (mounting): 19"
• Weight: 25.5 kg
• Product colour: White
• Construction: Fully welded, wall-mounted
• Door: Glass standard (steel or perforated optional)
• Maximum stated load (manufacturer data): see product label

How to use

Securely fasten the cabinet to a suitable wall structure following local mounting regulations and the cabinet’s mounting instructions. Adjust the pair of 19" vertical rails to the required depth for your equipment, install rack-mounted devices and route cables through the top, bottom or rear openings. If needed, fit the supplied plastic frame and brush blanking panel into the knockout openings to reduce dust ingress. Use the hinge system to open the door up to nearly 180° or remove it for easier access during installation.

Recommendations

Install the cabinet on a load-bearing wall and verify wall anchors and fasteners for the total equipment weight. Allow clearance for ventilation and service access. Use the supplied brush blanking panels to limit dust entry and consult the equipment manufacturer for recommended rack-mounting practices.
