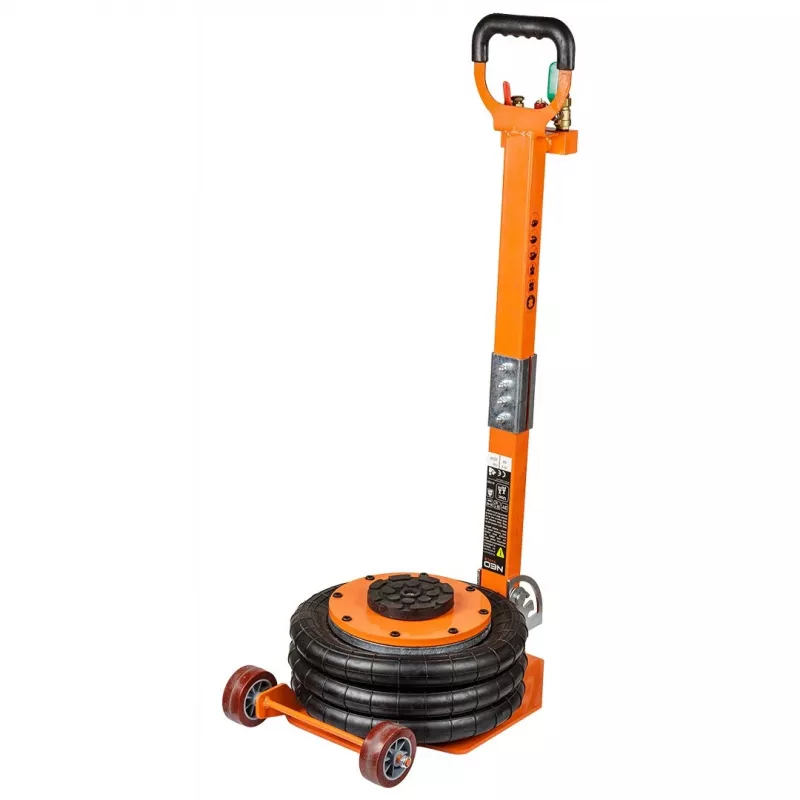

NEO TOOLS 3T pneumatický zdvihák, výška 145-420 mm

For workshops and mobile mechanics who need a fast, safe lift without the strain of a manual pump, the NEO TOOLS 3T Pneumatic Jack delivers air-powered convenience in a compact, manoeuvrable frame. Its triple-bag design raises vehicles from just 145 mm up to 420 mm in seconds, while the 3-tonne capacity covers most passenger cars, SUVs, and light commercial vehicles. Built around a reinforced steel chassis and heavy-duty rubber bellows, this jack is engineered for daily professional use where time and reliability matter.

Highlights

• 3-tonne (3000 kg) lifting capacity for cars, SUVs, and vans
• Pneumatic operation from any standard 6–8 bar compressed air supply
• Ultra-low 145 mm starting height reaches under low-clearance vehicles
• Triple air bag system provides stable, controlled lifting to 420 mm
• Heavy-duty composite wheels and foldable handle for easy positioning
• Safety valve and overload protection prevent over-extension
• Non-slip rubber saddle pad protects vehicle contact points
• CE compliant for workshop safety standards

In daily use

Connect the 80 cm air hose to your compressor, slide the jack under the vehicle, and press the control lever — the triple bellows inflate smoothly, lifting the load without the physical effort of a hydraulic pump. The low-profile saddle starts at 145 mm, making it ideal for sports cars and lowered vehicles, while the wide wheelbase and composite wheels keep the unit stable on smooth workshop floors. When the job is done, release the air valve for a controlled descent.

Full specifications

• Lifting capacity: 3 t (3000 kg)
• Minimum lifting height: 145 mm
• Maximum lifting height: 420 mm
• Operating pressure: 6–8 bar (0.6–0.8 MPa / 90–120 PSI)
• Air inlet connection: 1/4" NPT
• Number of air bags: 3 (triple bellows)
• Construction material: high-strength steel, reinforced rubber bellows
• Handle type: foldable, ergonomic
• Wheels: heavy-duty composite
• Safety features: safety valve, overload protection, non-slip rubber pad
• Lifting mechanism: pneumatic (air-powered)
• Working temperature: -20°C to +50°C
• Air hose length: 80 cm
• Colour: black / red
• Certifications: CE
• Application: automotive repair, tire changes, workshop use

Final note

With its air-powered triple-bag system and robust build, the NEO TOOLS 3T Pneumatic Jack is the efficient choice for professionals who value speed and safety in every lift.
