Nespravovaný switch DIGITUS DN-651153 8-portový Gigabit Ethernet PoE

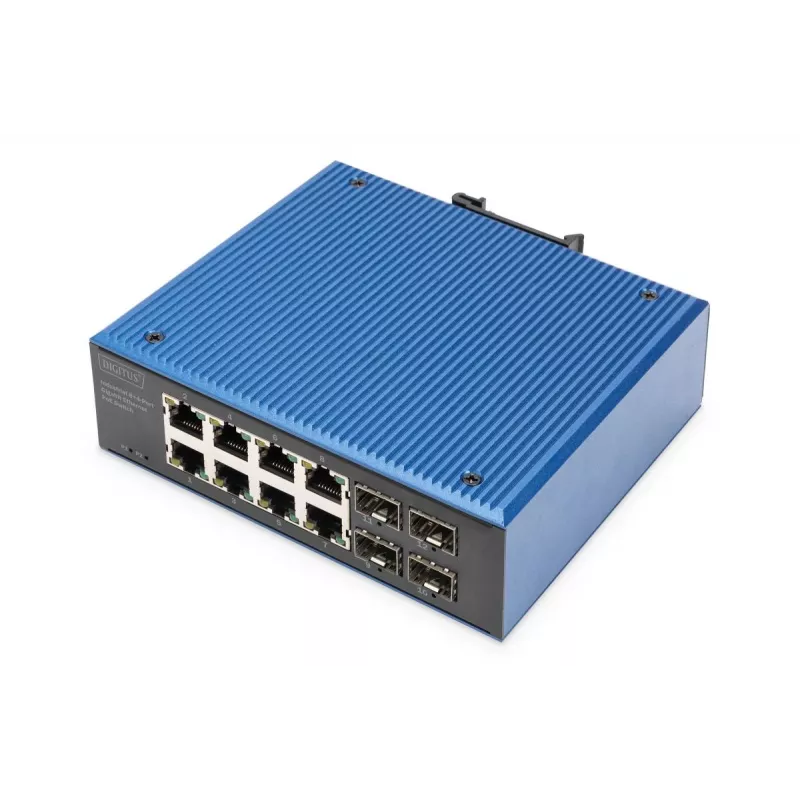

The DIGITUS DN-651153 is an unmanaged industrial Gigabit Ethernet PoE switch with eight 10/100/1000 BASE-TX RJ45 ports and four 1000Base-Fx SFP ports in an IP40 metal enclosure. Designed for harsh environments, it supports PoE 802.3af/at on the RJ45 ports, redundant 48–57 V DC power input, and operates across a wide temperature range from -40 °C to 80 °C. The compact unit mounts easily on a DIN rail and provides non‑blocking, wire‑speed performance suitable for networked camera systems, monitoring, control management and wireless service backhaul.

Advantages

The switch delivers full Gigabit throughput on copper and fiber ports with up to 30 W PoE per RJ45 port, enabling power and data over a single cable. Its metal IP40 housing and redundant DC power input increase reliability in industrial installations, while ESD and EFT protection up to 6 kV safeguard connected equipment. Plug & play operation and DIN‑rail mounting simplify installation in control cabinets and outdoor shelter environments.

Suitable for

• IP camera systems and video surveillance
• Industrial monitoring and control networks
• Wireless access point backhaul and small cell connections
• Edge network segments in harsh indoor/outdoor shelters

Key specifications

• Model: DIGITUS DN-651153
• Switch type: Unmanaged

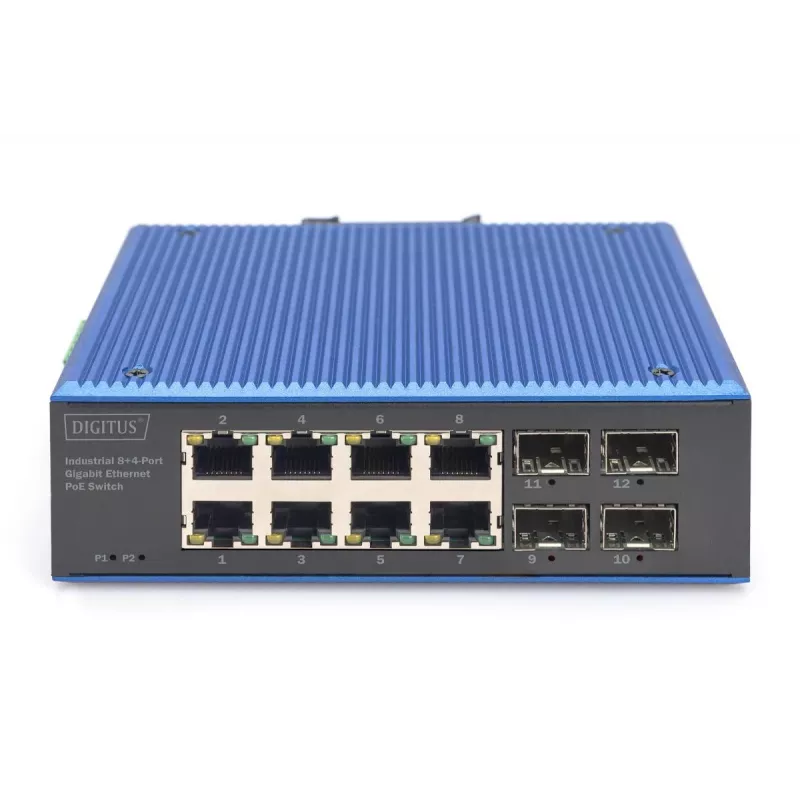

• Ports: 8 × 10/100/1000 Mbit/s RJ45 (PoE 802.3af/at), 4 × 1000Base‑Fx SFP
• PoE power per port: up to 30 W

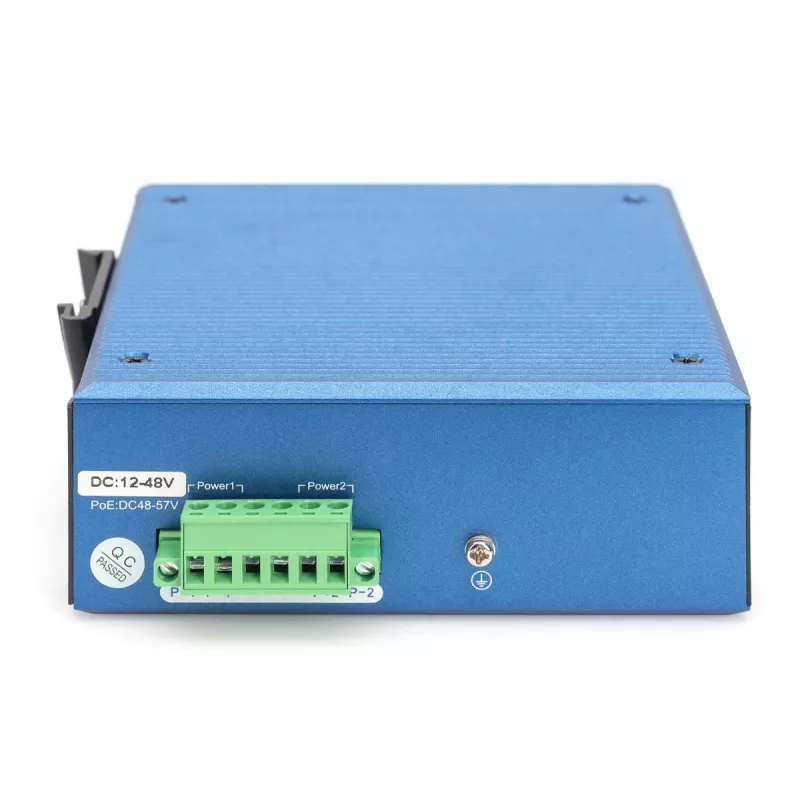

• Power input: redundant 48–57 V DC
• MAC address table: 8000 entries
• Enclosure: metal, IP40

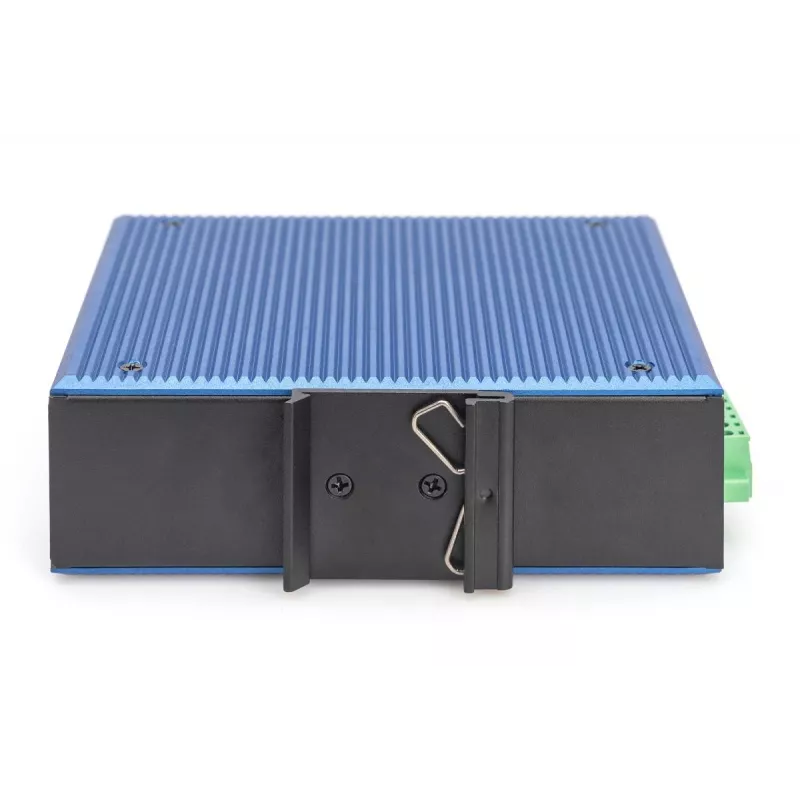

• Mounting: DIN‑rail
• Operating temperature: -40 °C to 80 °C
• Protection: ESD & EFT up to 6 kV
• Colour: Black/Blue
• Weight: 0.76 kg

How to use

Mount the switch on a DIN rail inside a suitable cabinet or enclosure, connect the redundant 48–57 V DC power sources to the power inputs, and attach copper and SFP fiber modules as required. Connect IP cameras, wireless access points or other devices to the RJ45 PoE ports to supply both data and power; use the SFP ports for fiber uplink or extended reach links. No configuration is required for basic operation—the unit functions as an unmanaged plug & play switch.

Recommendations

For reliable PoE operation, verify total available DC power and budget per port when connecting multiple high‑power devices. Place the switch in a ventilated enclosure or location within the specified -40 °C to 80 °C range, and use SFP transceivers that match your fiber type and distance requirements.
