Nespravovaný switch LevelOne 5-port Fast Ethernet priemyselný switch

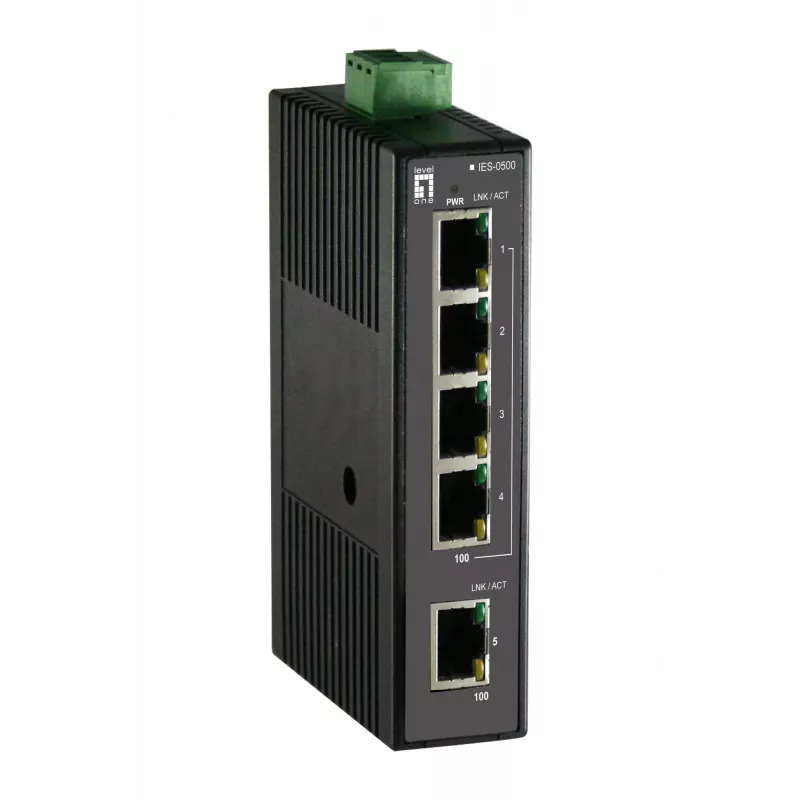

The LevelOne IES-0500 Unmanaged 5-Port Fast Ethernet Industrial Switch delivers five 10/100Base-TX RJ-45 ports in a compact, DIN-rail mountable metal housing for reliable network connectivity in industrial environments. Designed for mission-critical applications, the switch supports full-duplex operation and a MAC address table suitable for typical small industrial networks while offering visible status LEDs for simple port and link monitoring.

Advantages

The switch operates across a wide industrial temperature range and is built to withstand harsh conditions while remaining cost-effective. It complies with relevant safety and EMC standards, providing baseline protection against electrical hazards. As an unmanaged device, it requires no configuration — offering straightforward plug-and-play deployment and immediate network connectivity.

Suitable for

• Small industrial LANs requiring 5-port Fast Ethernet connectivity
• DIN-rail installations in factories, automation cabinets, or field sites
• Applications needing a rugged, maintenance-free network edge device

Key specifications

• Model: LevelOne IES-0500
• Ports: 5 × 10/100Base-TX RJ-45
• Switch type: Unmanaged
• MAC address table: 2048 entries
• Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Mounting: DIN-rail
• Operating temperature: specified industrial range (see manufacturer data)
• Colour: Black
• Weight: 0.2 kg

How to use

Mount the switch on a standard DIN-rail inside an appropriate industrial enclosure. Connect each network device to the RJ-45 ports using Cat5e or better Ethernet cables. Apply appropriate power according to the product’s power input specifications and verify link/activity LEDs to confirm port connectivity. No configuration is required for basic operation; the device functions as an unmanaged switch forwarding Ethernet frames between ports.

Recommendations

Install the switch in a ventilated, vibration-minimized location; use shielded cabling and proper grounding where electromagnetic interference is present. Ensure the ambient temperature and power supply meet the manufacturer’s specified ranges to maintain reliable operation.
