Nespravovaný switch Trendnet TI-PE50 Power over Ethernet čierna

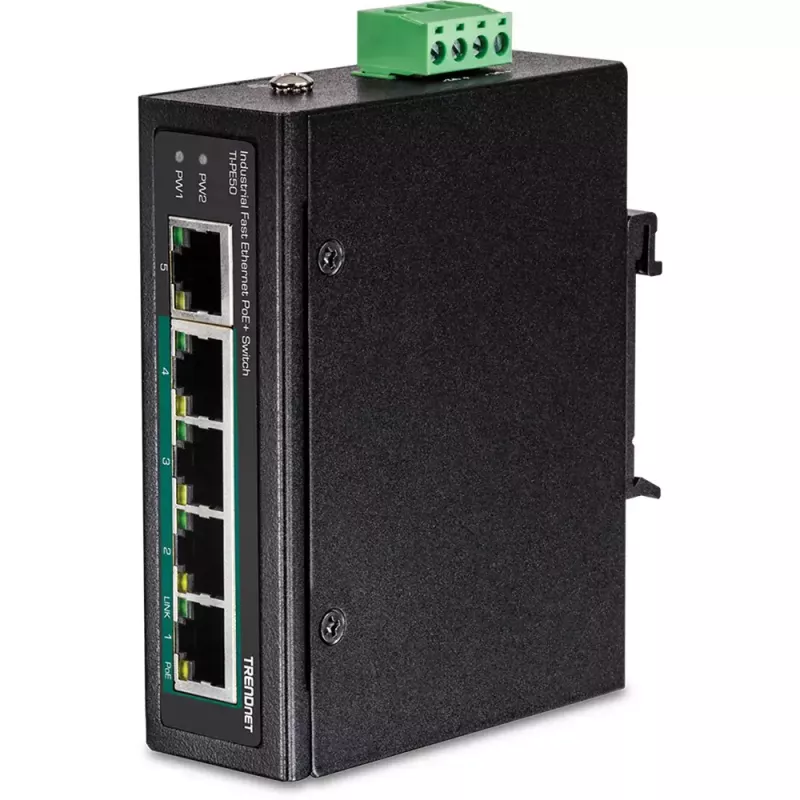

The TRENDnet TI-PE50 is an unmanaged Fast Ethernet PoE+ switch in a compact black metal enclosure, designed for industrial and commercial installations. This 5‑port switch supports Fast Ethernet (10/100) on RJ-45 ports and delivers Power over Ethernet (compliant with IEEE 802.3af/at) to powered devices while offering a switching capacity of 1 Gbit/s and a MAC address table of 1024 entries. The device accepts a 48–56 V DC input and is suitable for wall mounting or installation in constrained spaces.

Advantages

The TI-PE50 provides up to 30 W of PoE power per port, enabling data and power delivery over a single Ethernet cable and reducing cabling complexity. Its unmanaged design requires no configuration, simplifying deployment. The compact metal housing and industrial-rated components ensure stable operation in typical commercial and some industrial environments, while compliance with IEEE networking standards ensures interoperability with existing network equipment.

Suitable for

• Connecting and powering IP cameras (including PTZ models) in small to medium installations
• Supplying power to wireless access points and VoIP phones
• Small office and retail network edge deployments
• IPTV decoders and access control devices requiring PoE

Key specifications

• Model: TI-PE50
• Switch type: Unmanaged

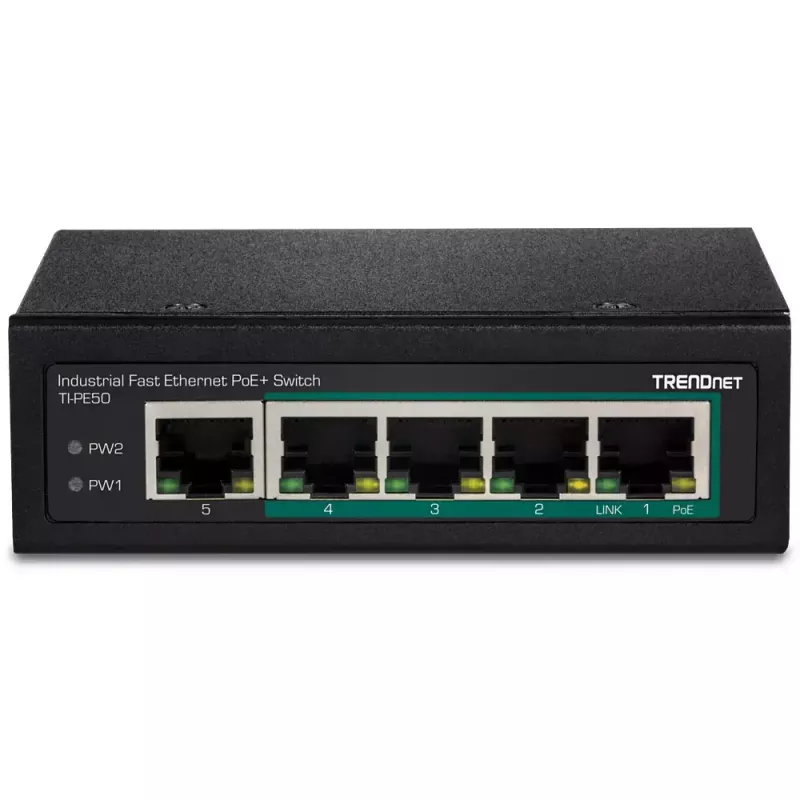

• Ports: 5 × RJ-45 Fast Ethernet (10/100)
• PoE: IEEE 802.3af / IEEE 802.3at, up to 30 W per port
• Switching capacity: 1 Gbit/s
• MAC address table: 1024 entries

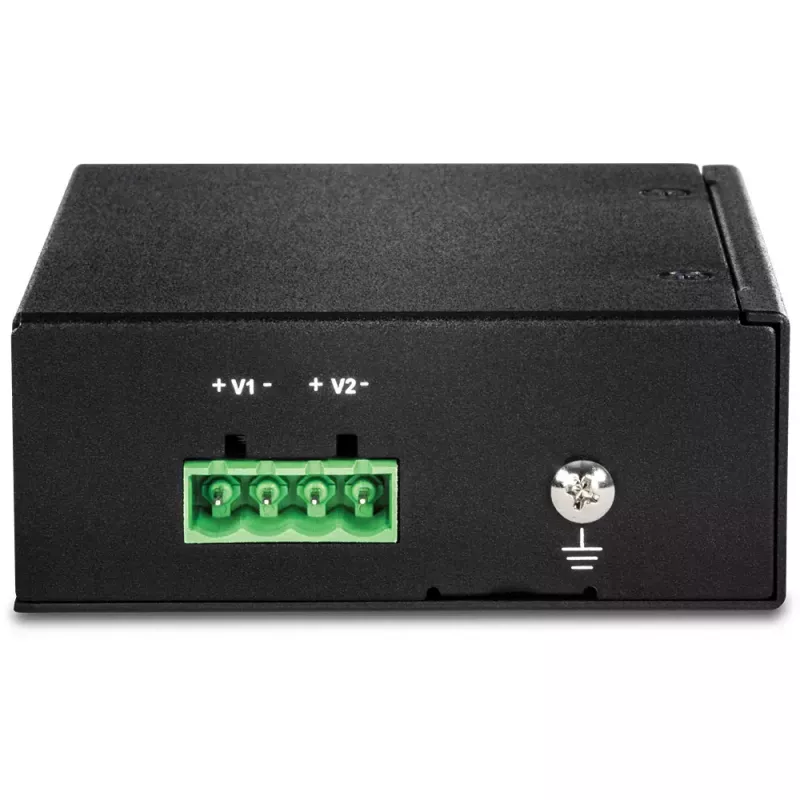

• Input voltage: DC 48–56 V
• Product colour: Black
• Weight: 0.16 kg

How to use

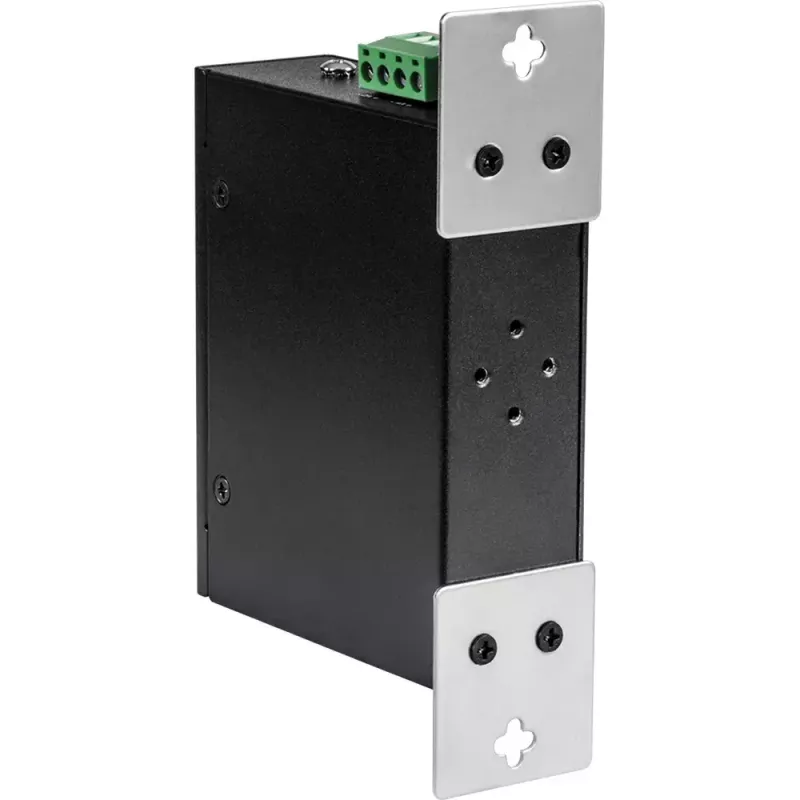

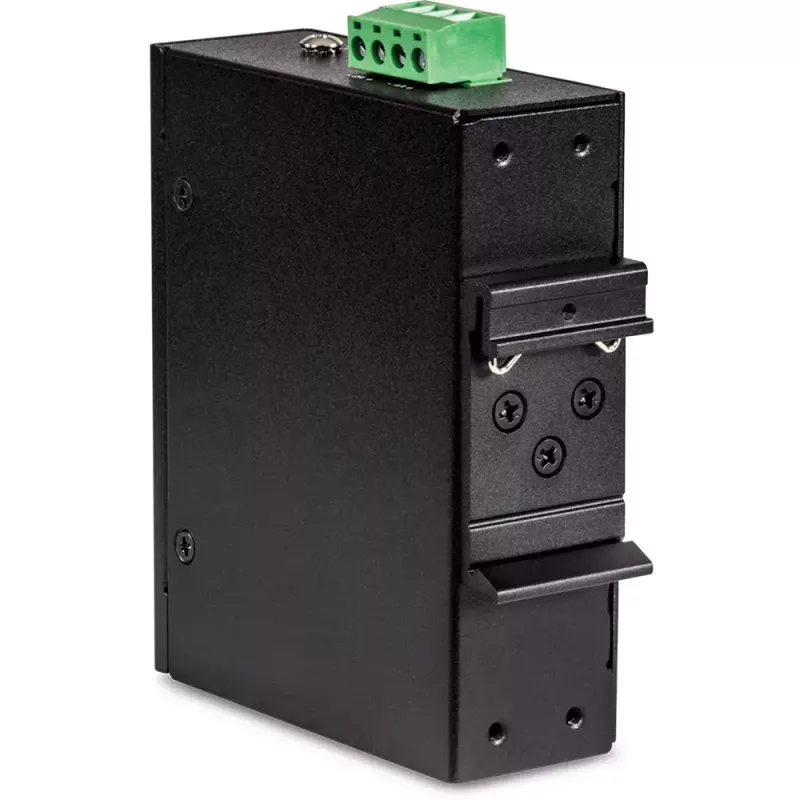

Mount the TI-PE50 on a wall or secure it in an equipment cabinet using appropriate fittings. Connect the DC power supply within the specified 48–56 V range to the switch input. Attach Ethernet cables from your network and connect PoE‑powered devices to the RJ-45 ports; the switch will automatically provide power and data without configuration. Monitor device operation through connected endpoints; as an unmanaged switch, it requires no software setup.

Recommendations

Install the TI-PE50 in a well-ventilated area away from direct heat sources. Ensure the power supply can deliver sufficient current for the total PoE load, and use quality Ethernet cables (Cat5e or better) for reliable PoE delivery.
