Neupravovaný switch Digitus DN-650107 4 porty Fast Ethernet PoE

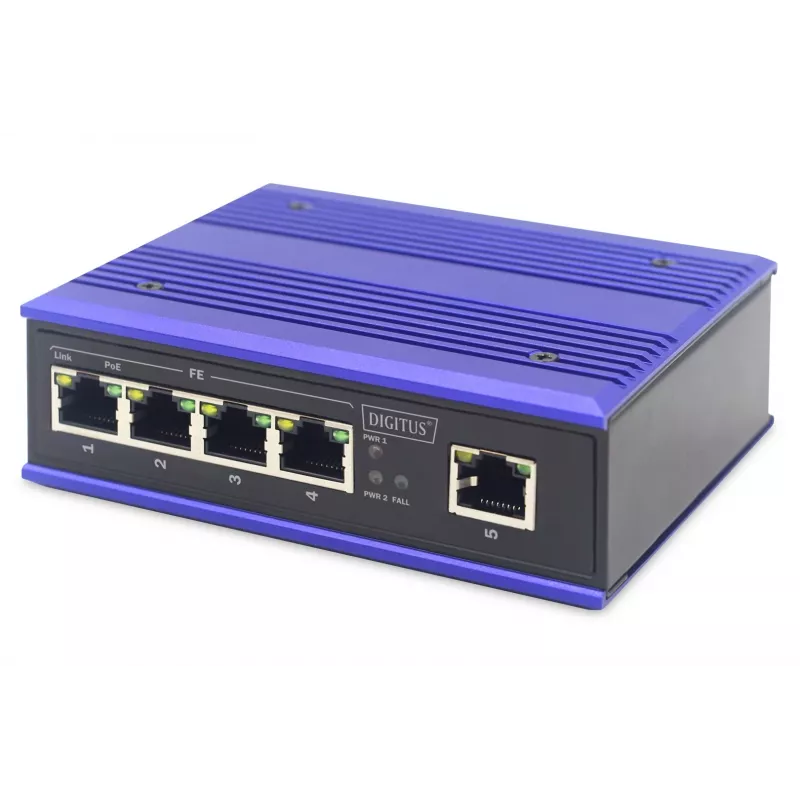

The DIGITUS Unmanaged Switch DN-650107 is a rugged industrial 4‑port Fast Ethernet PoE switch with one uplink port, designed for use in harsh environments. It provides four 10/100Base‑TX PoE ports and one 10/100Base‑TX uplink port, supports IEEE 802.3af/at PoE with up to 30 W per port, and operates over a wide temperature range of -40 °C to 80 °C. The switch is compact, wall‑mountable and intended for reliable network connectivity in applications such as transport, production, traffic and safety monitoring.

Advantages

The DN-650107 offers a simple plug-and-play, unmanaged operation requiring no configuration. Its industrial design tolerates moisture, temperature fluctuations and vibration while supporting full duplex transmission and a MAC address table of 2048 entries for efficient packet forwarding. PoE capability (IEEE 802.3af/at) supplies power to connected devices directly over the Ethernet cable, simplifying deployments and reducing cabling. Wall-mountable housing and a compact form factor simplify installation in constrained or exposed locations.

Suitable for

• IP cameras and video surveillance systems
• Industrial automation and control network segments
• Traffic and road monitoring infrastructure
• Remote network nodes where rugged, low-maintenance switches are needed

Key specifications

• Device type: Unmanaged Fast Ethernet PoE switch
• Ports: 4 x 10/100Base‑TX PoE ports + 1 x 10/100Base‑TX uplink port (RJ45)
• PoE standard: IEEE 802.3af/at (up to 30 W per port)
• Switching capacity: 1 Gbit/s (aggregated)
• MAC address table: 2048 entries
• Operating voltage: DC 48–57 V
• Operating temperature: -40 °C to 80 °C
• Mounting: Wall mount
• Colour: Black, Blue
• Weight: 0.369 kg

How to use

Mount the switch on a suitable surface using the included wall‑mount brackets or compatible hardware. Connect the DC power supply within the specified 48–57 V range. Plug Ethernet cables into the 10/100Base‑TX PoE ports to power and connect PoE devices such as IP cameras, or use the uplink port to connect to the rest of the network. The unmanaged design requires no configuration; devices will negotiate link speed and PoE automatically. Verify link and power LEDs to confirm normal operation.

Recommendations

Install the switch in a location protected from direct water ingress and provide ventilation to avoid heat accumulation. Ensure connected PoE devices do not exceed the total available power budget and use suitable surge protection where the network is exposed to electrical disturbances.
