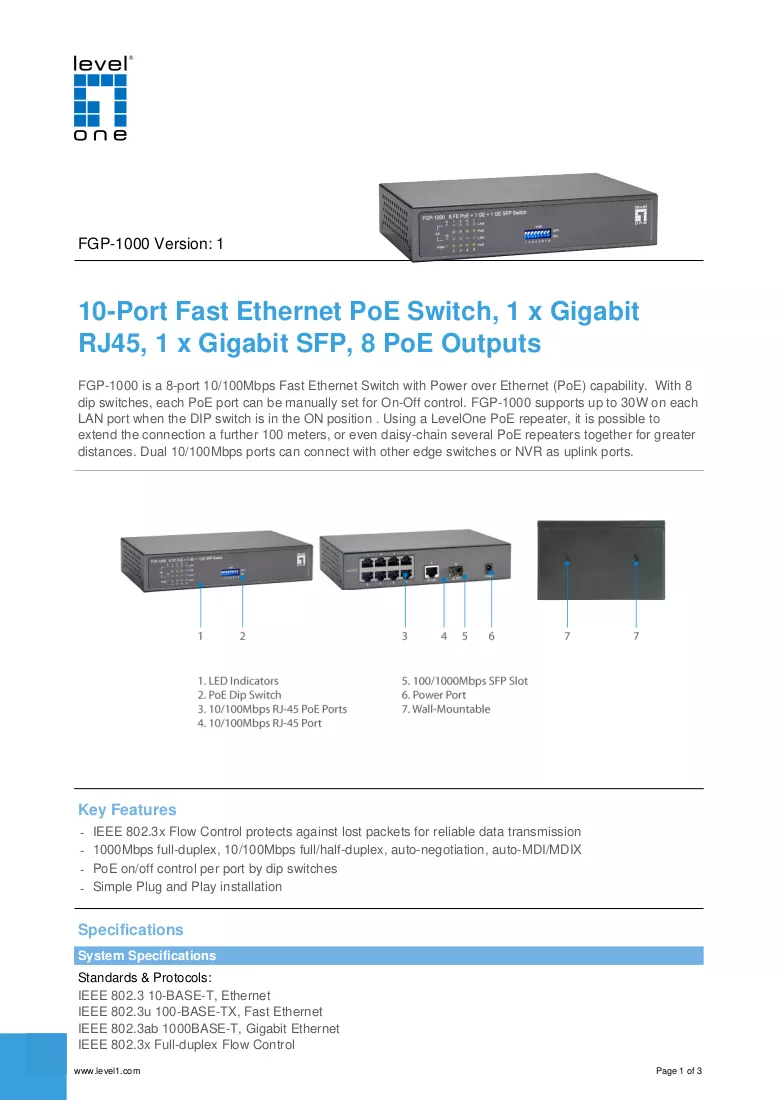

LevelOne 10-port Fast Ethernet PoE switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE výstupov, 90 W

FGP-1000 is an 8-port 10/100 Mbps Fast Ethernet switch with Power over Ethernet (PoE) capability. Each of the eight ports supports PoE and can be manually enabled or disabled using individual DIP switches. When a port’s DIP switch is set to ON, that LAN port can supply up to 30 W to connected PoE devices. The switch also includes two dual 10/100 Mbps ports that can be used as uplinks to connect to other edge switches or an NVR. Using a compatible PoE repeater, the PoE connection can be extended by an additional 100 meters or daisy-chained with multiple repeaters for longer distances.

Advantages

The FGP-1000 provides centralized PoE power control with per-port DIP switches, allowing precise power management for connected devices. It supports standard fast Ethernet auto-negotiation and auto MDI/MDIX for simple connectivity. The device implements IEEE 802.3x flow control to reduce packet loss and improve transmission reliability. Installation is plug-and-play, requiring no configuration for basic use.

Key specifications

• Ports: 8 x 10/100 Mbps PoE ports with individual DIP switch control; 2 x 10/100 Mbps uplink ports
• PoE power per port: up to 30 W when DIP switch is ON
• Standards: IEEE 802.3x flow control; 10/100 Mbps full/half-duplex; auto-negotiation; auto-MDI/MDIX
• Extension: supports LevelOne PoE repeater to extend PoE up to an additional 100 m or daisy-chain repeaters
• Operation: Plug-and-play

How to use

Connect network devices to the eight PoE-capable LAN ports and use the corresponding DIP switch to enable (ON) or disable (OFF) PoE per port. Use the two uplink ports to connect the switch to a network backbone, another edge switch, or an NVR. To extend the powered connection beyond 100 meters, connect a compatible LevelOne PoE repeater between the switch and the powered device or chain multiple repeaters as needed. Basic operation requires no additional configuration.

Recommendations

Verify the power requirements of connected PoE devices and ensure the total available power budget is sufficient. When extending connections with repeaters, use compatible LevelOne devices and observe cable quality and distance limits to maintain reliable operation.
