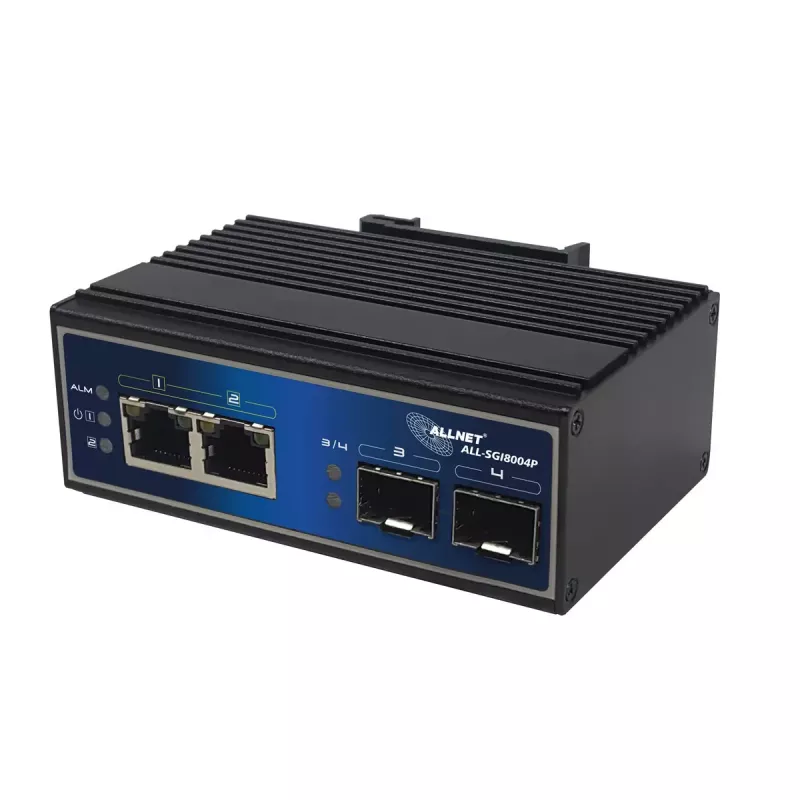

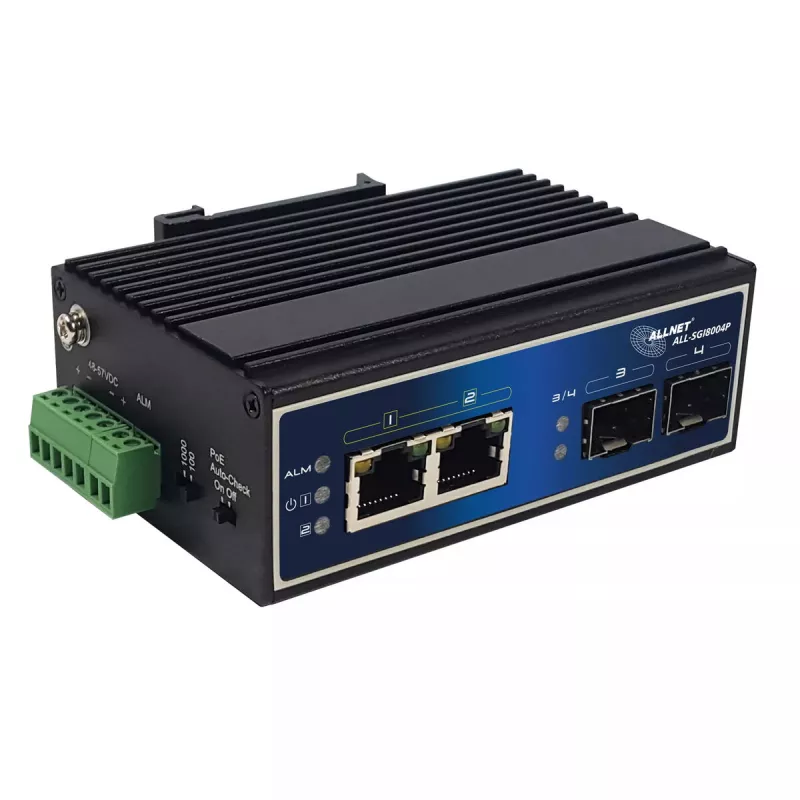

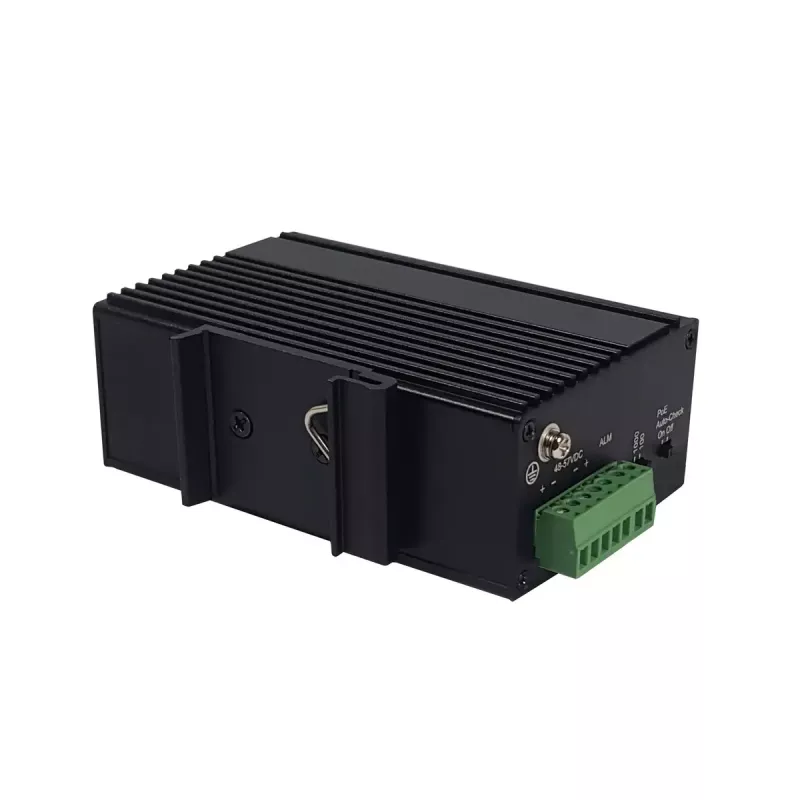

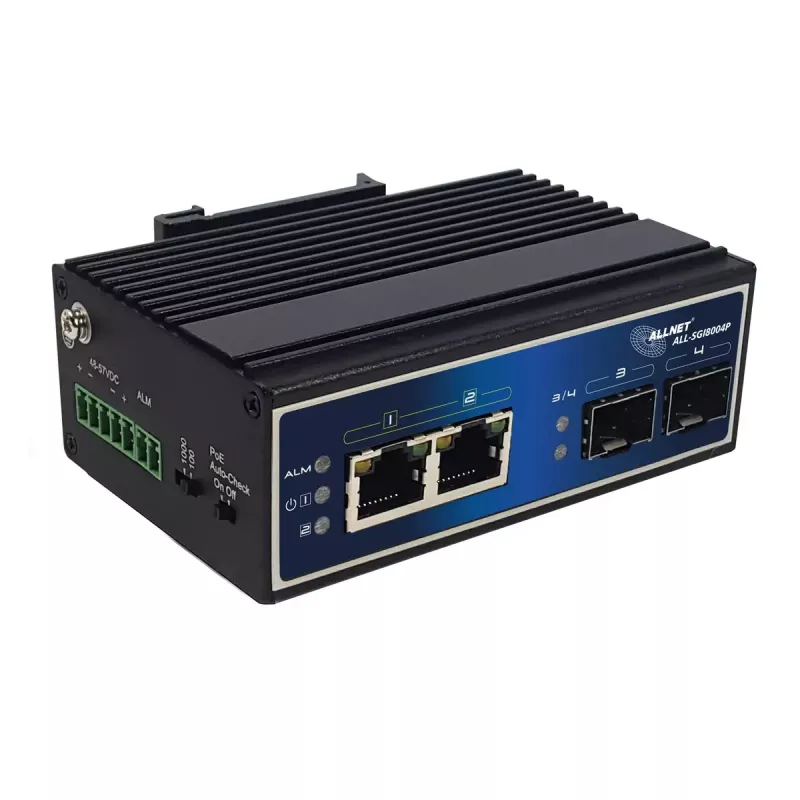

Neupravovateľný switch ALLNET ALL-SGI8004P Gigabit Ethernet PoE 2 porty

The ALLNET ALL-SGI8004P is a compact unmanaged switch with two Gigabit Ethernet ports and Power over Ethernet (PoE) support. Designed for industrial environments, it operates in an extended temperature range of -40°C to +75°C and fits into confined spaces such as switch cabinets and fuse boxes. The device has a switching capacity of 8 Gbit/s and a MAC address table of 8000 entries. Scope of delivery: manual, top-hat rail clamp, 5-pin Phoenix terminal block for power connection, switch unit; power supply not included.

Advantages

The switch is extremely small and suitable for installations with limited space while offering Gigabit performance on two RJ-45 ports and PoE functionality. Its extended operating temperature range and robust design make it appropriate for industrial use where dust and dirt protection are required. Being unmanaged, it provides plug-and-play connectivity without configuration.

Suitable for

• Compact switch cabinets and fuse boxes
• Industrial environments with wide temperature variations
• PoE devices such as IP cameras or access points (small deployments)
• Simple plug-and-play network expansions

Key specifications

• Model: ALLNET ALL-SGI8004P
• Switch type: Unmanaged
• Ports: 2 × Gigabit Ethernet (10/100/1000) with PoE
• Switching capacity: 8 Gbit/s
• MAC address table: 8000 entries
• Operating temperature: -40°C to +75°C
• Colour: Black
• Weight: 0.3 kg
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z

How to use

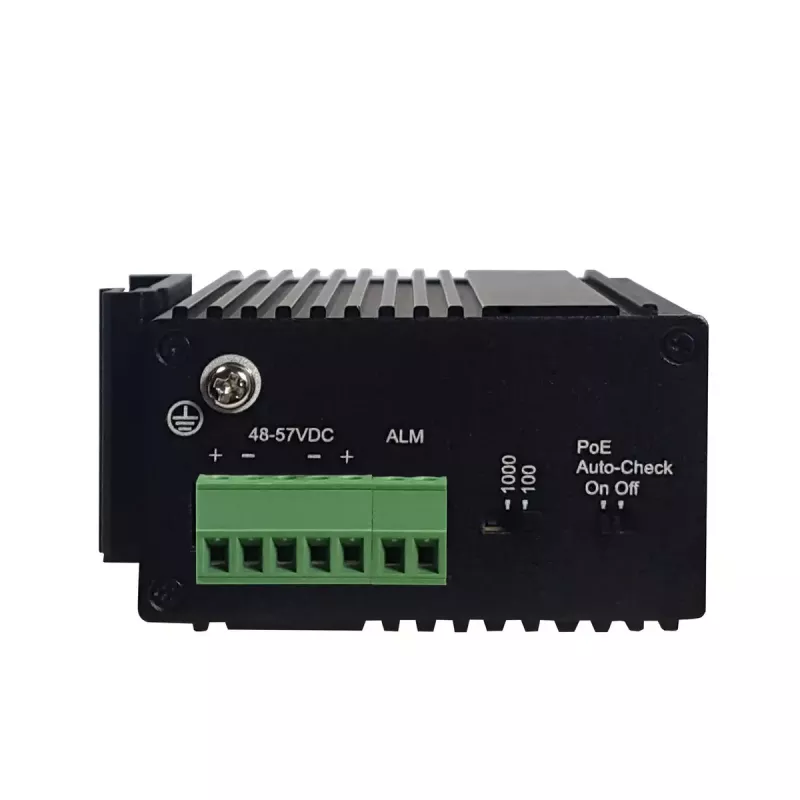

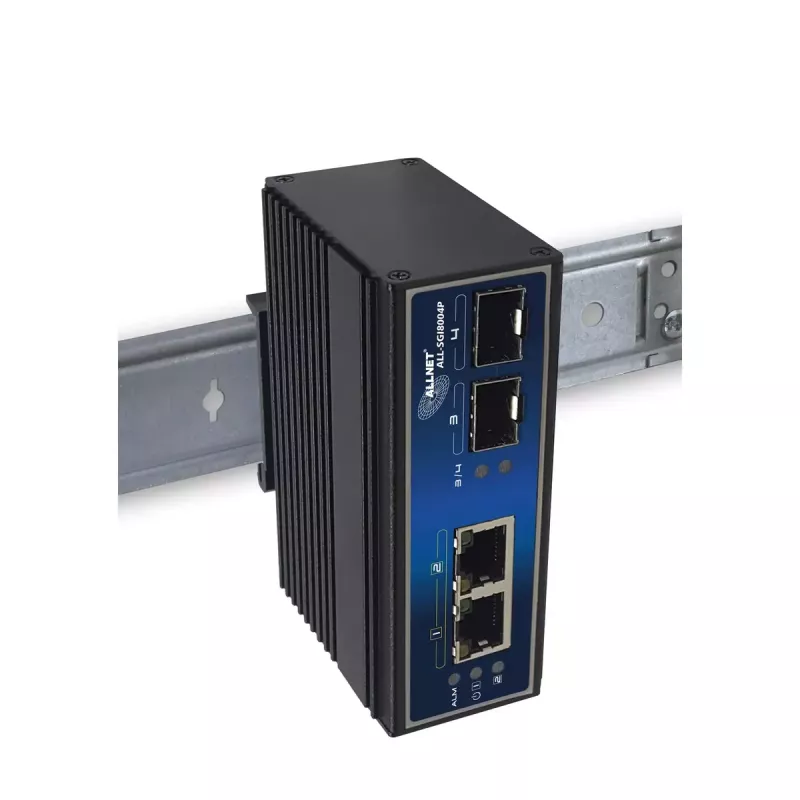

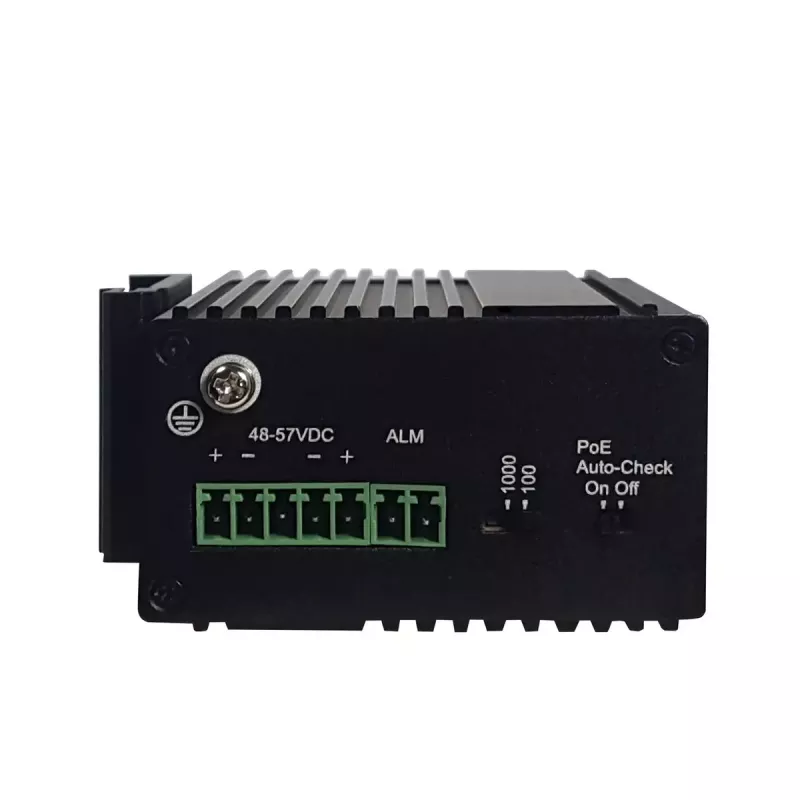

Install the switch on a DIN/TH35 top-hat rail using the supplied rail clamp or place it inside a cabinet or box where space is limited. Connect PoE-capable devices to the Gigabit RJ-45 ports and provide power to the switch via the supplied 5-pin Phoenix terminal block (power supply not included). As an unmanaged device, it requires no configuration—connected devices obtain link-level connectivity automatically.

Recommendations

Use a suitable external power supply compatible with the switch’s required input voltage and current, and ensure proper ventilation and protection from direct moisture. Verify PoE power budget against the consumption of connected devices before deployment.
