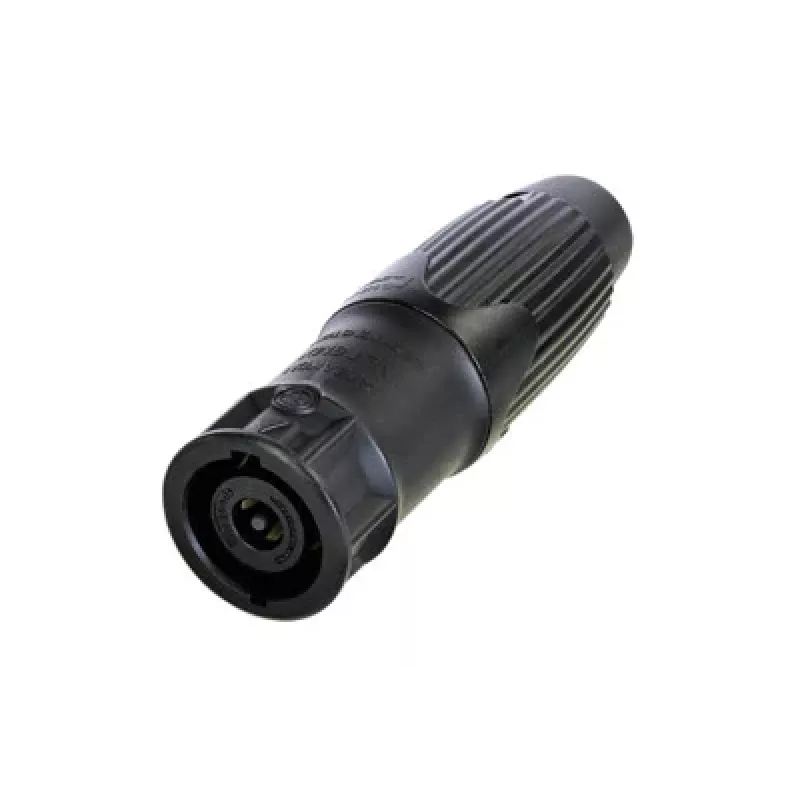

Neutrik NLT8MXX-BAG 8-pólový speakON káblový konektor, čierny

Loudspeaker connections in professional audio demand reliability, high current capacity, and secure locking. The Neutrik NLT8MXX-BAG 8-pole speakON male cable connector addresses these needs with a rugged design built for touring and installation sound systems. Its screw-type terminals accept large conductor cross-sections and a wide cable diameter range, while the Quick Lock system ensures a positive, twist-lock mating that resists accidental disconnection.

Who is it for

Audio engineers, system integrators, and rental companies who need a dependable multi-pole loudspeaker connector for high-power amplifiers and speaker cabinets. It suits portable PA rigs, fixed installations, and any application where a robust 8-pole connection is required.

Main features

• 8-pole configuration for multi-channel or bi-amped speaker systems
• Male cable connector with screw-type terminals for secure field assembly
• Quick Lock mechanism for fast, reliable mating
• High current rating: 30 A rms continuous
• Wide cable acceptance: 8–20 mm outer diameter
• Durable polyamide housing, UL94 V-0 rated
• Silver-plated copper alloy contacts for excellent conductivity
• Operating temperature range: -30 °C to +80 °C

Specifications

• Connector type: speakON
• Number of poles: 8
• Gender: male
• Termination: screw-type terminals
• Current rating: 30 A rms continuous
• Voltage rating: 250 V AC
• Dielectric strength: 4 kVdc
• Insulation resistance: > 1 GΩ
• Cable O.D. range: 8–20 mm
• Locking mechanism: Quick Lock
• Housing material: Polyamide (PA 6.6)
• Contact material: Copper alloy
• Contact plating: Silver
• Flammability rating: UL94 V-0
• IP rating: IP40
• Temperature range: -30 °C to +80 °C
• Mating cycles: > 5000
• Colour: Black

Tips

For reliable terminations, strip the cable jacket to the recommended length and ensure all screw terminals are torqued properly. Use with Neutrik NL8MPR or compatible 8-pole chassis connectors. The connector is not waterproof; protect it from direct moisture in outdoor applications.
