Objektív kamery Axis 01813-001

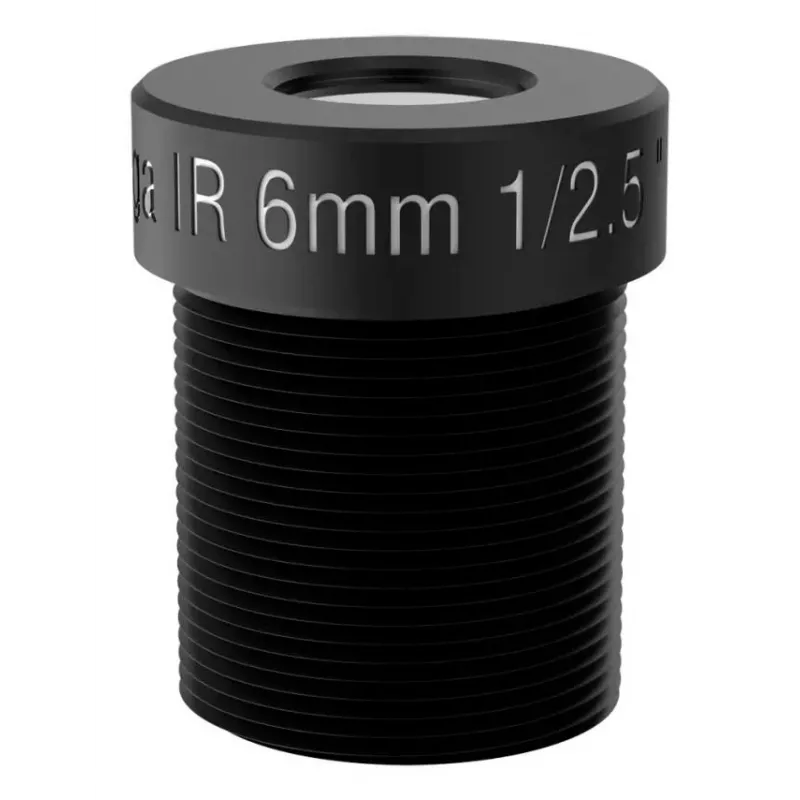

The AXIS 01813-001 camera lens is an optional M12 6 mm lens suitable for AXIS Q6010-E network cameras and other IP cameras with an M12 mount. It offers a horizontal viewing angle of approximately 54° and is finished in black, providing a compact, compatible optics option for surveillance installations.

Advantages

This 6 mm M12 lens provides a medium telephoto field of view with a 54° horizontal angle, designed for straightforward compatibility with Axis cameras that accept M12 mounts. Its compact M12 form factor simplifies installation in recessed or space-constrained housings while maintaining image alignment and reliable mechanical fit.

Suitable for

• AXIS Q6010-E network cameras (optional lens upgrade or replacement)
• IP cameras with M12 lens mount
• Fixed surveillance points requiring a medium telephoto view
• Indoor and outdoor camera housings with M12 lens accommodation

Key specifications

• Manufacturer: AXIS
• Model / MPN: 01813-001
• Lens mount: M12
• Focal length / diameter: 6 mm
• Horizontal viewing angle: ~54°
• Color: Black
• EAN: 7331021068155
• Quantity in pack: 4 pcs.

How to use

Turn off the camera and remove power before changing the lens. Unscrew the existing M12 lens from the camera's M12 mount, then carefully screw in the AXIS 01813-001 lens until it seats firmly. Adjust focus and position according to the camera's focusing procedure and re-tighten any locking mechanisms. Restore power and verify the field of view and focus in the camera's live view.

Recommendations

Use this lens with compatible Axis and other M12-mount IP cameras; ensure the camera housing allows for a 6 mm lens and perform focus calibration after installation. Protect the lens from contaminants and moisture during installation and service.
