OBO Bettermann U-profil s hlavovou doskou 1100mm US 5 K 110 FT 6341624

Hot-dip galvanised U-post with head plate, 1100 mm long, for vertical support of cable trays and ladders.

Overview

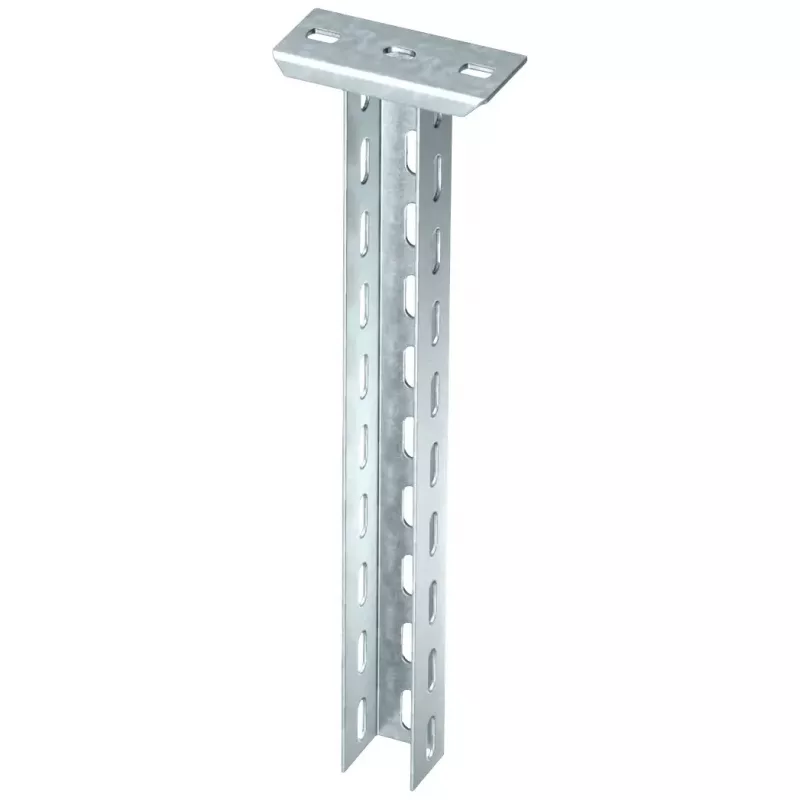

The OBO Bettermann U-Post with Head Plate (model US 5 K 110 FT) is a steel support post designed for cable management systems. It features a U-profile of 60 x 40 mm and a head plate of 110 x 110 mm with four 11 mm mounting holes. The post is hot-dip galvanised (FT), providing high corrosion resistance for indoor and outdoor use. It is intended for floor or ceiling mounting as a vertical support for cable trays and cable ladders.

What stands out

• Hot-dip galvanised steel for durable corrosion protection
• Head plate with four 11 mm holes for secure attachment
• Compatible with OBO Bettermann cable management systems
• Length of 1100 mm suits various installation heights

Technical details

• Material: Steel
• Surface treatment: Hot-dip galvanised
• Length: 1100 mm
• Profile type: U-profile
• Profile dimensions (W x H): 60 x 40 mm
• Head plate dimensions (L x W): 110 x 110 mm
• Number of mounting holes in head plate: 4
• Mounting hole diameter: 11 mm
• Application: Vertical support for cable trays and cable ladders
• ETIM Class: EC000462 (Support post for cable tray/ladder)

Our verdict

A robust and corrosion-resistant support post, ideal for professional cable management installations.
