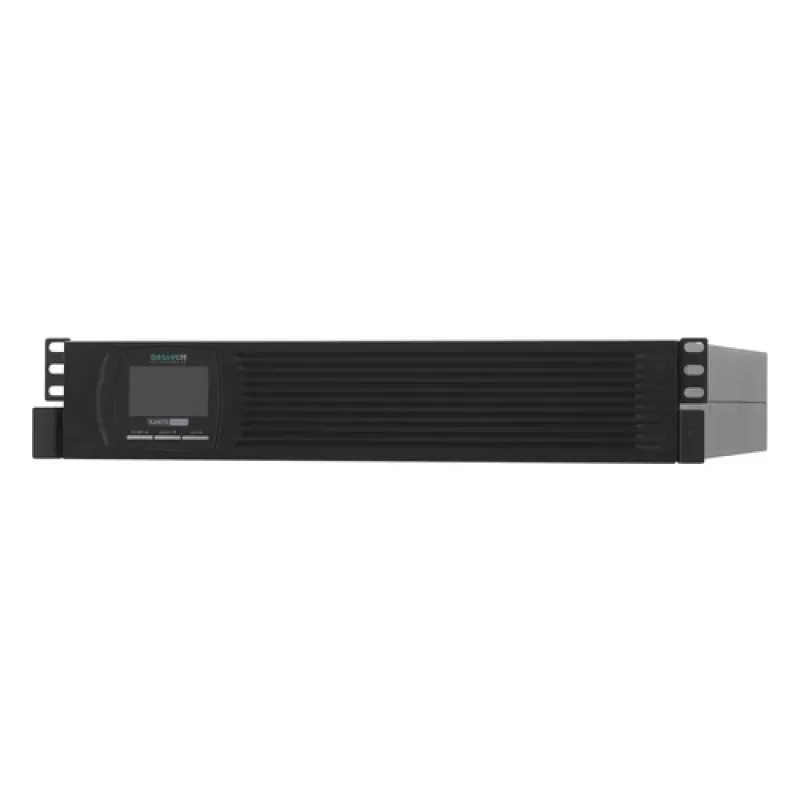

ONLINE USV-Systeme XANTO 3000R UPS (záložný zdroj)

The ONLINE USV-Systeme XANTO 3000R is a double-conversion (VFI) rack/tower UPS that provides continuous power conditioning and backup for servers, network equipment and sensitive IT applications. With an output capacity of 3 kVA / 3000 W, seven AC outlets (C13 and C19), integrated 12 V 9 Ah battery and certification to VFI-SS-111 and EN62040 standards, the XANTO 3000R delivers stable voltage, protection against mains disturbances and short-term autonomy for critical loads.

Advantages

The XANTO uses online double-conversion technology to fully decouple the load from the mains, eliminating the effects of voltage fluctuations, spikes and harmonic distortion. Its DYNAMIC POWER TECHNOLOGY (DPT) adapts output power dynamically to connected loads and can provide up to the nominal wattage, allowing more usable power than conventional UPS units. The unit offers improved autonomy compared with its predecessor, low operating costs through up to 97% efficiency, selectable rack or tower installation and switchable output sockets to shed noncritical loads without software.

Suitable for

• Rack or tower server environments
• Network switches, routers and telecom equipment
• Small to medium IT cabinets and control systems
• Environments requiring orderly shutdown of servers and protected backups

Key specifications

• Output power: 3000 W
• Output capacity: 3 kVA
• AC outlets: 7 (C13 and C19)
• Battery: 12 V, 9 Ah (internal); external battery packs supported for extended autonomy
• Typical backup time: ~6 minutes at full load (model-dependent)
• Form factor: rack/tower (2 U rack-tower design)
• Interfaces: RS-232 and USB; optional SNMP adapter and relay/AS400 card
• Weight: 27.5 kg
• Certifications: VFI-SS-111, EN62040

How to use

Install the XANTO 3000R in a 19" rack using the supplied mounting angle or place it as a tower. Connect critical devices to the UPS AC outlets and connect the UPS to the mains supply. Configure the basic settings and battery deep-discharge protection via the local menu or with the included DataWatch software over RS-232 or USB. For automated shutdown of multiple servers, install the RCCMD agent or use the SNMP adapter and DataWatch professional features. Optionally add external battery packs to extend autonomy; follow the manual for the correct sequence and connections.

Recommendations

Use switchable output sockets to shed noncritical loads during battery operation, enable battery deep-discharge protection to prevent irreversible battery damage, and consider adding external battery packs or the SNMP adapter for longer runtime and centralized management in multi-server environments.
