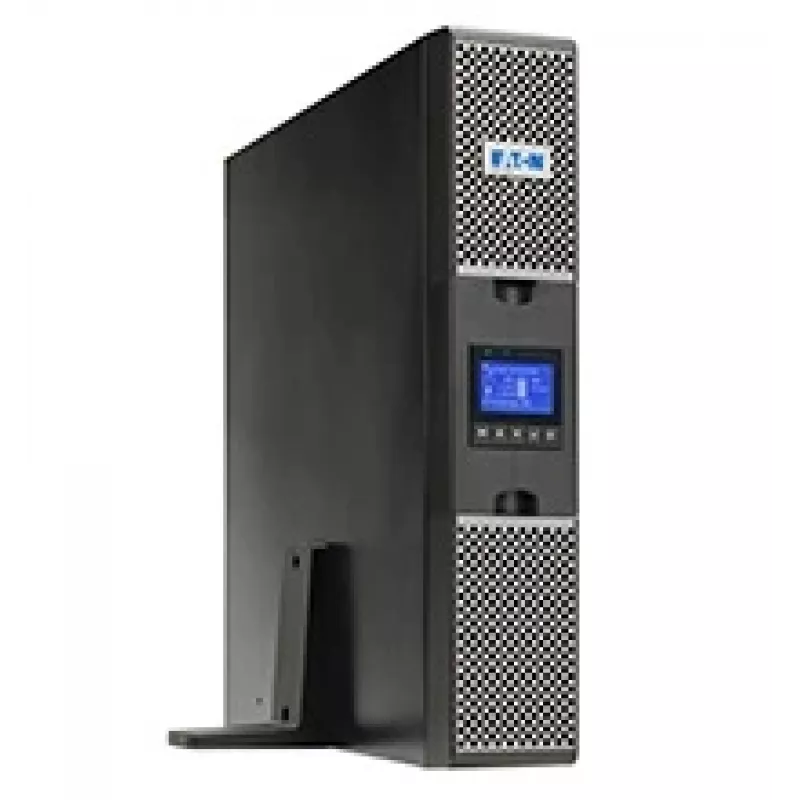

EATON CORPORATION Eaton 9PX 1000i RT2U Netpack

The Eaton 9PX 1kVA Uninterruptible Power Supply delivers reliable, double-conversion power protection for small servers, network devices and IT infrastructure. Providing 1 kVA / 1000 W output power, the UPS uses sealed lead‑acid batteries in a 2U rackmount/tower form factor and offers a graphical LCD for local status monitoring. Typical backup times are approximately 6 minutes at full load and 16.5 minutes at half load, and the unit includes eight C13 AC outlets and one USB 2.0 port. Certified to industry standards such as IEC/EN 62040-1 and UL 1778, the Eaton 9PX 1kVA is designed for efficient, continuous operation with up to 93% double-conversion efficiency.

Advantages

The Eaton 9PX 1kVA provides continuous online double-conversion topology for constant voltage and frequency regulation, reducing the risk of downtime. Its compact 2U rackmount/tower design supports scalable deployment in server rooms and racks, while the graphical LCD supplies clear local information on status and alarms. With eight C13 outlets and integrated USB connectivity, the UPS supports multiple devices and simple integration with management systems. Efficiency up to 93% helps reduce energy losses during normal operation.

Suitable for

• Small servers and rack-mounted network equipment
• Edge data centres and branch office IT racks
• Storage devices, VoIP and telecommunications equipment
• Workstations and critical business appliances needing short runtime

Key specifications

• Output power: 1000 W
• Output power capacity: 1 kVA
• AC outlets: 8 × C13
• USB ports: 1 × USB 2.0
• Backup time: ~6 min at full load; ~16.5 min at half load
• Form factor: 2U rackmount / tower
• Battery type: sealed lead‑acid
• Weight: 17.4 kg
• Colour: Black
• Certifications: IEC/EN 62040-1, UL 1778

How to use

Install the Eaton 9PX 1kVA in a 2U rack space or place it on a stable flat surface in tower orientation. Connect the UPS input to a dedicated AC supply and plug critical devices into the C13 outlets. Use the graphical LCD to review real‑time status, load and battery information. For monitoring and graceful shutdown, connect the USB 2.0 port to a management server and configure the supplied Eaton software or compatible management tools according to your environment. Perform regular battery self‑tests and schedule maintenance as indicated in the user manual.

Recommendations

Install the UPS in a temperature‑controlled, ventilated environment and avoid obstructing airflow. Verify load does not exceed the 1000 W rating and plan battery replacement according to runtime needs and manufacturer intervals to ensure continuous protection.
