Optický duplexný kábel LC/LC InLine 88523P 20m OM4 50/125µm

Reliable high-speed connection:The OM4 multimode fibre cable with 50/125µm enables efficient data transmission over short distances – ideal for data centres and server cabinets.

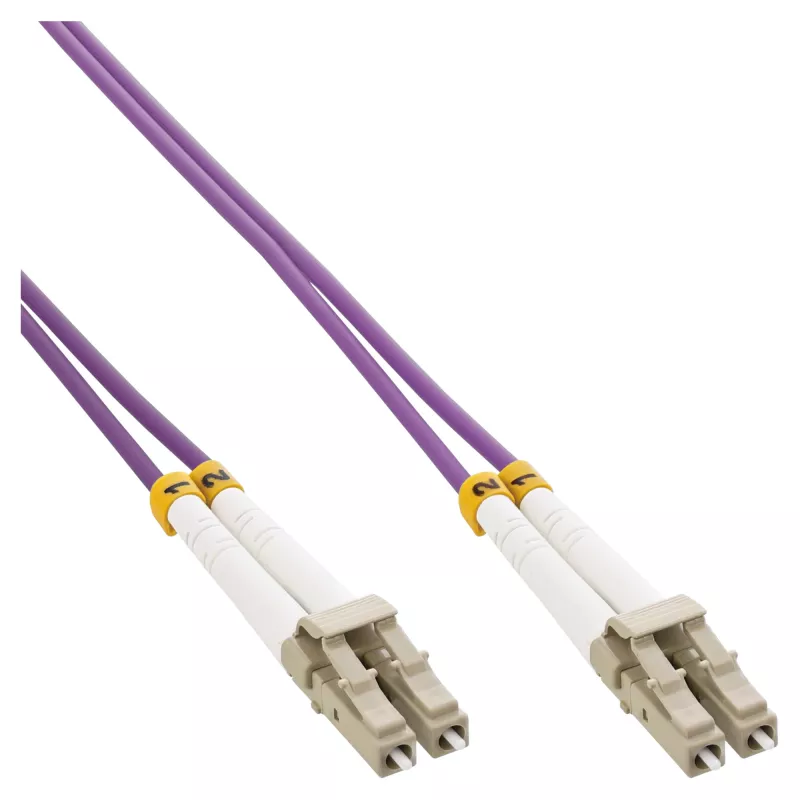

High-precision LC/LC connector:UPC polishing on both sides guarantees low attenuation values and stable connections – suitable for professional applications.
Halogen-free LSZH jacket:The fire-resistant design ensures increased safety in public facilities and enclosed spaces.
Robust duplex design:Two separately routed fibres with a diameter of 3.0 mm ensure flexibility during installation and facilitate cable routing.
Colour-coded purple coding:Complies with the standard for OM4 cables – for quick identification and a structured network infrastructure.

The InLine® fibre optic duplex cable with LC/LC connectors has been developed for professional applications in data centres, corporate networks and structured building cabling. With its OM4 multimode fibre technology (50/125 µm), it offers a reliable high-speed connection for demanding network requirements over short transmission distances.
The LC connectors on both sides with precise UPC polishing guarantee low insertion loss and consistent signal quality – a basic requirement for the stable operation of modern network systems. The halogen-free LSZH (Low Smoke Zero Halogen) jacket also ensures increased safety during installation in sensitive areas such as public facilities or office buildings.

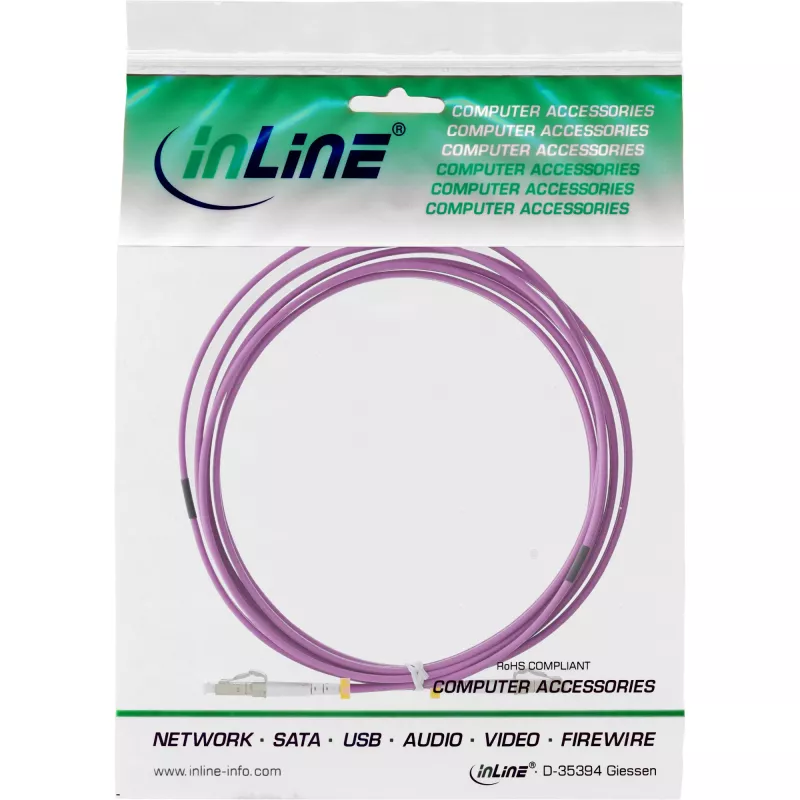

With a cable diameter of 3.0 mm per fibre, the cable offers high flexibility and a robust design. The purple colouring complies with the standard for OM4 fibres and supports easy differentiation within complex cabling environments. The cable is supplied in a practical shop wall bag including EAN code, which facilitates storage and integration into existing distribution processes.

Connector type: 2x LC to 2x LC
Polishing: UPC on both sides
Cable diameter: 3.0 mm per strand
Fibre type: OM4 multimode, 50/125µm
Jacket material: LSZH (halogen-free)
Fibre colour: Purple

InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM4 20m. Cable length: 20 m, Fibre optic type: OM4, Core diameter: 50 µm, Full duplex

How to use

Inspect both LC connectors and fiber ends before installation to ensure they are clean and free of dust or debris. Route the cable along existing cable management paths to avoid sharp bends; maintain bend radius recommended for multimode fiber to prevent increased attenuation. Plug each LC connector firmly into the corresponding LC duplex adapter or transceiver port, observing transmit/receive orientation if required by the equipment. After connection, verify link integrity using appropriate network testing tools or the host equipment diagnostics.

Recommendations

For optimal long-term performance, use a fiber cleaning kit prior to every connection, avoid tight bends and excessive pulling tension, and store unused cable length coiled without kinks. Match OM4 multimode fiber with compatible transceivers and patch panels to ensure the intended bandwidth and reach.
