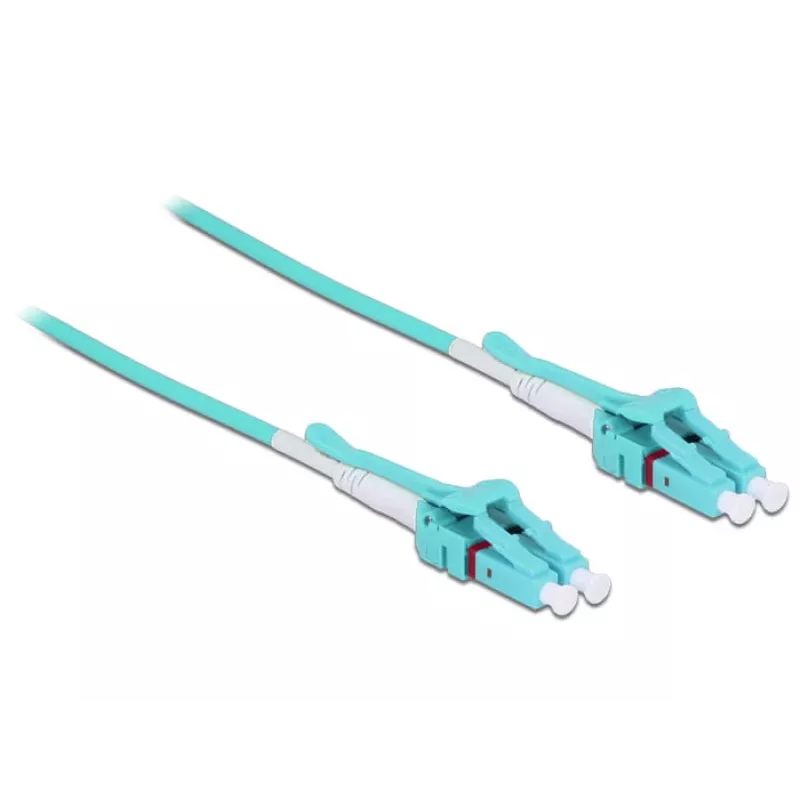

Optický kábel DeLOCK 1m 2xLC

The DeLOCK 1m 2xLC fibre optic cable is a 1-metre duplex patch cable with two LC connectors in a shared sheath and boot. It uses OM3 multimode fibre with a 50 µm core diameter for full-duplex high-speed data transmission and is suitable for connecting network devices such as NICs with SFP modules, switches or media converters. The cable's compact, shared-sheath design reduces space requirements in high-density installations.

Advantages

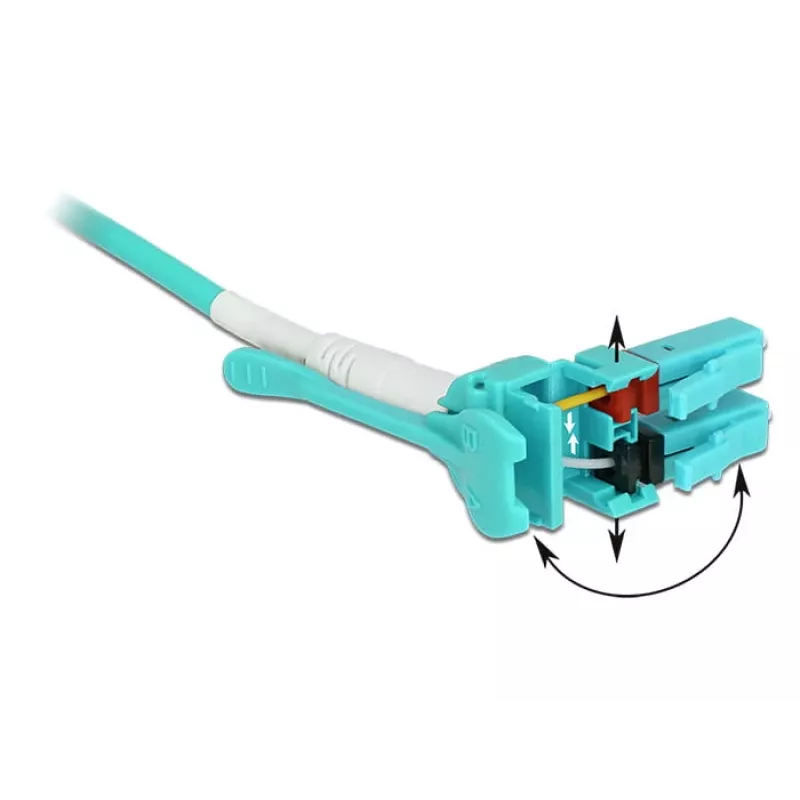

This fibre optic cable provides full duplex communication and consistent performance over multimode OM3 fibre. The two conductors share one sheath and one boot for space efficiency and simpler cable management. A built-in extractor lever facilitates unplugging from high-density panels without excessive force.

Suitable for

• Connecting a NIC with an SFP module to a switch
• Linking media converters to switches or routers
• High-density rack and patch panel installations

Key specifications

• Brand: DELOCK
• Model / MPN: 85127
• EAN: 4043619851270
• Length: 1 m
• Connector type: 2x LC (duplex)
• Fibre type: OM3 multimode
• Core diameter: 50 µm
• Colour: Turquoise

How to use

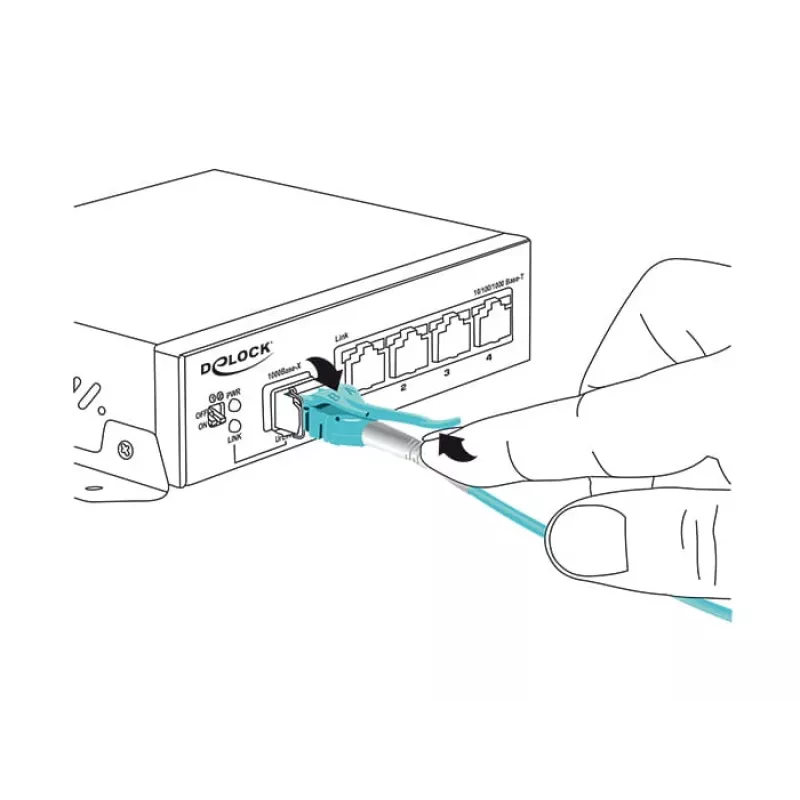

Align each LC connector with the corresponding LC port on the devices to be connected (for example, NIC with SFP module and switch). Gently insert the connectors until they click into place. To remove the cable from a high-density panel, use the extractor lever to release the connector and then pull straight out to avoid damaging the ferrule or port.

Recommendations

Handle fibre optic connectors carefully to avoid contamination: keep end faces capped when not in use, clean connectors with appropriate fibre cleaning tools before mating, and avoid bending the cable beyond manufacturer-specified bend radii to maintain signal performance.
