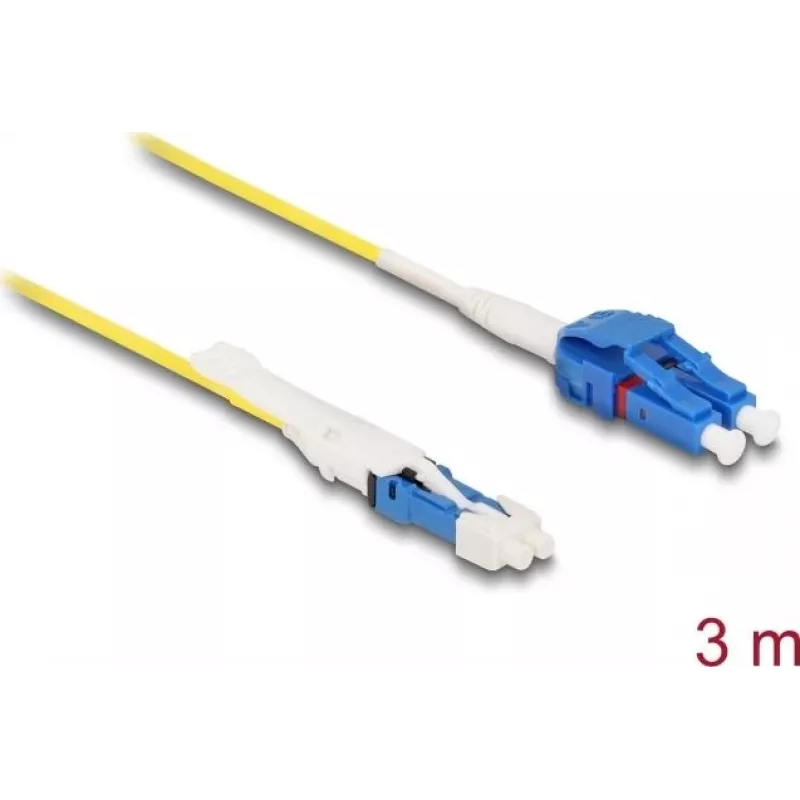

Optický kábel DeLOCK 88315 CS konektor samec na LC Duplex OS2 3 m

The DeLOCK Optical Fiber Cable 88315 is a singlemode OS2 cable with a CS male connector on one end and an LC Duplex connector on the other. At 3 m length and with a 9 µm core diameter, it is designed for full-duplex data transmission and long-distance connections in data centre and telecommunications environments. The cable is supplied in standard industry colours (blue, yellow) for easy identification.

Advantages

The CS connector provides a very small form factor (VSFF) that allows higher packing density compared with LC Duplex connectors. The push-pull tab on the CS plug enables simple insertion and removal. As an OS2 singlemode cable with a 9 µm core, the cable offers low attenuation for long-distance links and supports reliable full-duplex transmission.

Suitable for

Key specifications

How to use

Align the CS connector with the corresponding CS transceiver receptacle and insert using the push-pull tab until it seats securely. On the other end, align the LC Duplex connector with the LC receptacle and insert until it locks. Ensure both ends are clean and free of dust before connection to avoid signal loss. Route the cable to avoid tight bends and excessive strain on the connectors.

Recommendations

For optimal performance, clean connector end faces with appropriate fibre cleaning tools and avoid bending the cable beyond its minimum bend radius. Store and handle the cable in a dust-free environment and use dust caps when connectors are not in use.
