Optický kábel EFB Elektronik MTPF12LCOM4-2

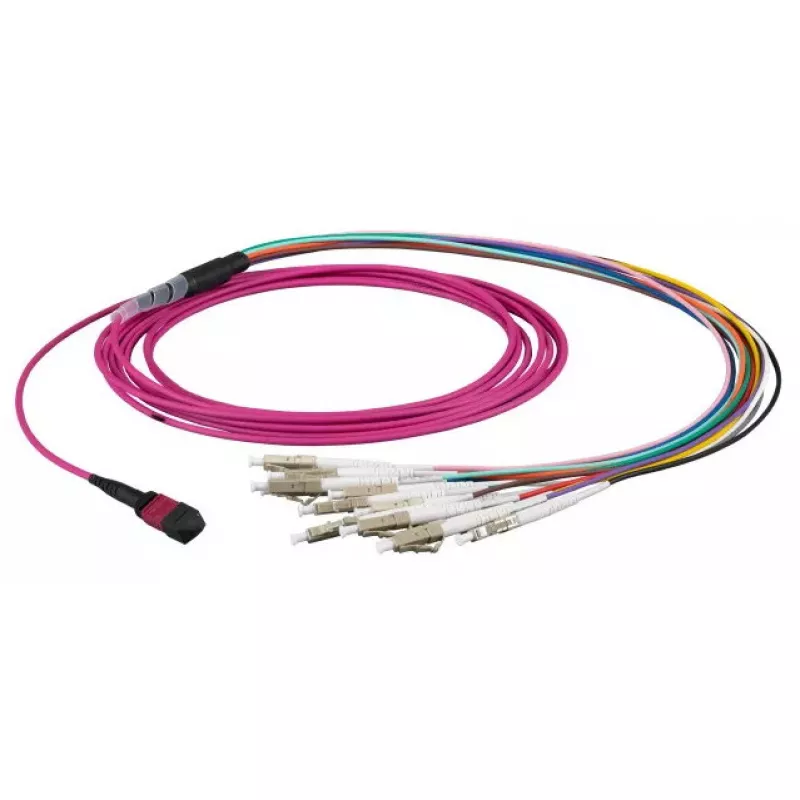

The EFB Elektronik MTPF12LCOM4-2 is a 2 m OM4 fibre optic cable designed for high-density, high-speed network environments. It features an MTP multi-fibre connector on one end and twelve LC connectors on the other, with a 50 µm core diameter optimized for short- and medium-range multimode transmission. The cable supports reliable optical links for data centres, enterprise networks and telecommunication racks where compact, low-loss connections are required.

Advantages

This OM4 fibre optic cable offers high bandwidth and low attenuation suitable for 10 GbE and higher multimode applications over short distances. The MTP connector provides efficient, space-saving multi-fibre mating while the array of LC connectors enables individual channel access and flexible patching. The 2 m length balances reach and manageability in rack-to-rack and patch-panel setups, and the construction is intended to provide mechanical stability and consistent optical performance.

Suitable for

• Data centre trunking and breakout cabling
• High-density patch panel connections
• Enterprise server-to-switch multimode links
• Telecommunications cabinets and optical distribution frames

Key specifications

• Cable type: OM4 multimode fibre
• Length: 2 m
• Connector A: MTP multi-fibre connector
• Connector B: 12 × LC simplex connectors
• Core diameter: 50 µm
• Typical use: Short- to medium-range multimode connections with high bandwidth
• Suitable for high-density installations and breakout applications

How to use

Install the cable by plugging the MTP connector into the corresponding MTP adapter or cassette on the patch panel and route the 12 LC connectors to the destination equipment or ports. Ensure correct keying and polarity when mating the MTP connector and verify each LC connector is fully seated in its port. Use gentle strain relief and avoid tight bends; follow standard fibre handling practices such as keeping connectors clean with appropriate cleaning tools and inspecting endfaces before connection.

Recommendations

For reliable performance, maintain bend radii above the manufacturer’s minimum, keep the operating environment free from dust and contaminants, and use fibre cleaning kits before each connection. Use this OM4 2 m MTP-to-LC breakout cable in rack-level and patch-panel deployments where short reach, high-bandwidth multimode links are required.
