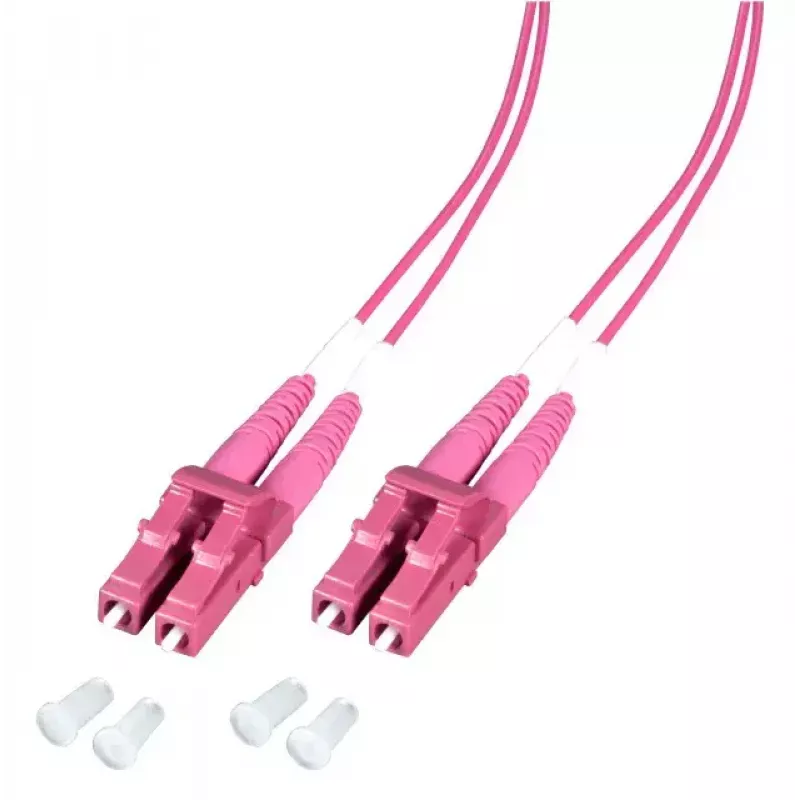

Optický kábel EFB Elektronik O0319.10-1.2 10 m 2x LC

The EFB Elektronik O0319.10-1.2 is a 10 m duplex fibre optic jumper with two LC connectors on each end and a 1.2 mm small outer diameter. Designed for OM4 multimode applications with a 50 µm core, this compact cable supports high-density installations and full-duplex data transmission with low signal loss.

Advantages

The compact 1.2 mm outer diameter enables space-saving cable routing in crowded racks and conduits. The cable is halogen-free (IEC‑60754‑2), flame-retardant (IEC‑60332‑1) and produces low smoke (IEC‑61034). Connectors are colour-coded to category (aqua, erica-violet or blue) and the LC connectors use a compact design. EFB fibre connectors are 100% tested and delivered with an individual measurement protocol, meeting specified quality classes for singlemode and multimode performance.

Suitable for

• High-density patch panels and data centre racks
• Cabling runs in limited-space environments and cable ducting
• High-speed OM4 multimode network links and short-reach applications

Key specifications

• Brand: EFB Elektronik
• MPN: O0319.10-1.2
• EAN: 4049759169442
• Length: 10 m
• Fiber type: OM4 multimode, 50 µm core
• Configuration: Duplex, 2x LC to 2x LC
• Outer diameter: 1.2 mm
• Standards: Halogen-free IEC‑60754‑2, Flame-retardant IEC‑60332‑1, Low smoke IEC‑61034
• Connectors: Colour-coded (aqua, erica-violet or blue), compact LC
• Tested: 100% tested with individual measurement protocol

How to use

Install the duplex jumper by connecting the LC connectors to the corresponding LC ports on transceivers or patch panels, ensuring correct polarity for full-duplex operation. Route the 1.2 mm cable through cable management channels or high-density panels, avoiding sharp bends and excessive tension. Verify connections using appropriate test equipment and the supplied measurement protocol.

Recommendations

Use the small-diameter jumper in locations where space is limited or where high connector density is required. Maintain manufacturer's bending radius and handle connectors to avoid contamination; clean connector endfaces before connection.
