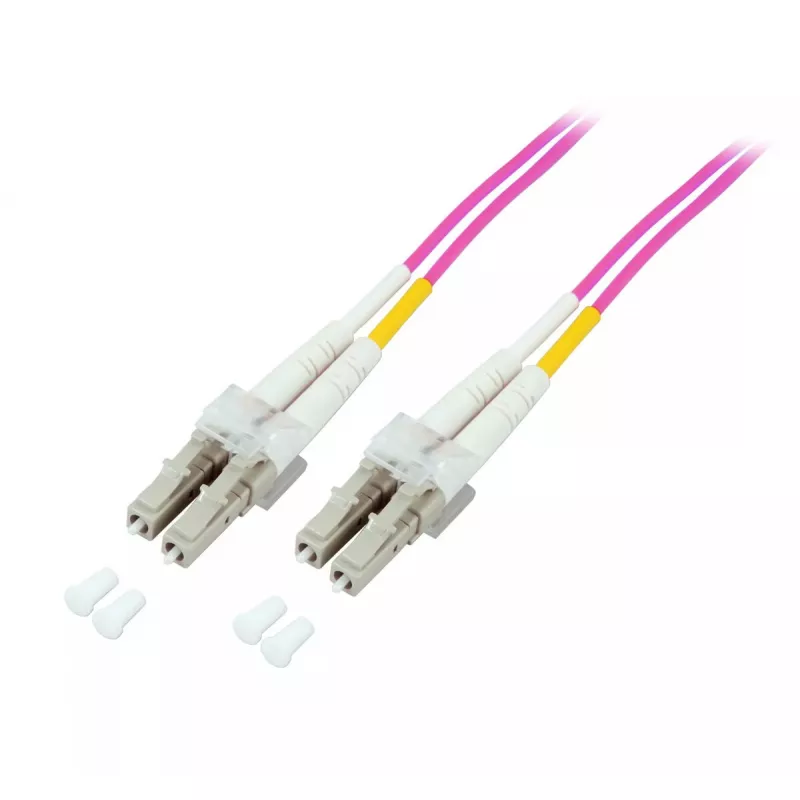

Optický kábel EFB Elektronik O0319.35 — 35 m, OM4, LC–LC, I-V(ZN) H, plný duplex, ružový

EFB Elektronik O0319.35 is a 35 m OM4 fibre optic patchcord with LC connectors on both ends and full-duplex capability. The cable type is I-V(ZN) H and the product is produced for structured cabling and high-speed data transmission, suitable for applications such as InfiniBand and other fibre-based network links. The jumper conforms to the general definitions used in ISO/IEC 11801 for short interconnections between passive interfaces and active device ports.

Advantages

The OM4 multimode fibre provides improved bandwidth and reduced modal dispersion compared with lower-grade multimode fibres, supporting higher data rates over the 35 m length. LC-to-LC connectors ensure compact duplex connections and wide compatibility with equipment using LC ports. The specified cable type I-V(ZN) H and the cable colour (pink) allow easy identification in dense cabling environments.

Suitable for

• InfiniBand links
• High-speed multimode fibre connections in data centres
• Short-distance backbone or equipment-to-equipment interconnects (up to 35 m)
• Environments using LC duplex interfaces

Key specifications

• Brand: EFB Elektronik
• Manufacturer part number (MPN): O0319.35
• EAN: 4049759104368
• Cable length: 35 m
• Cable type: I-V(ZN) H
• Fibre type: OM4 (multimode)
• Connector 1: LC
• Connector 2: LC
• Duplex: Full duplex
• Colour: Pink

How to use

Route the patchcord between the device ports requiring connection, avoiding tight bends and pressure on the cable. Insert the LC connectors into the corresponding LC ports on both devices until they click. Ensure cleanliness of connector endfaces before mating to minimise signal loss. For best performance, follow standard fibre-handling practices and aligned patch-panel or transceiver port mapping for duplex channels.

Recommendations

Use this OM4 LC–LC patchcord for short multimode runs where InfiniBand or high-speed fibre links are required. Store and handle the cable in a way that prevents kinks and contamination; clean connectors before use and keep within the rated 35 m length for guaranteed multimode performance.
