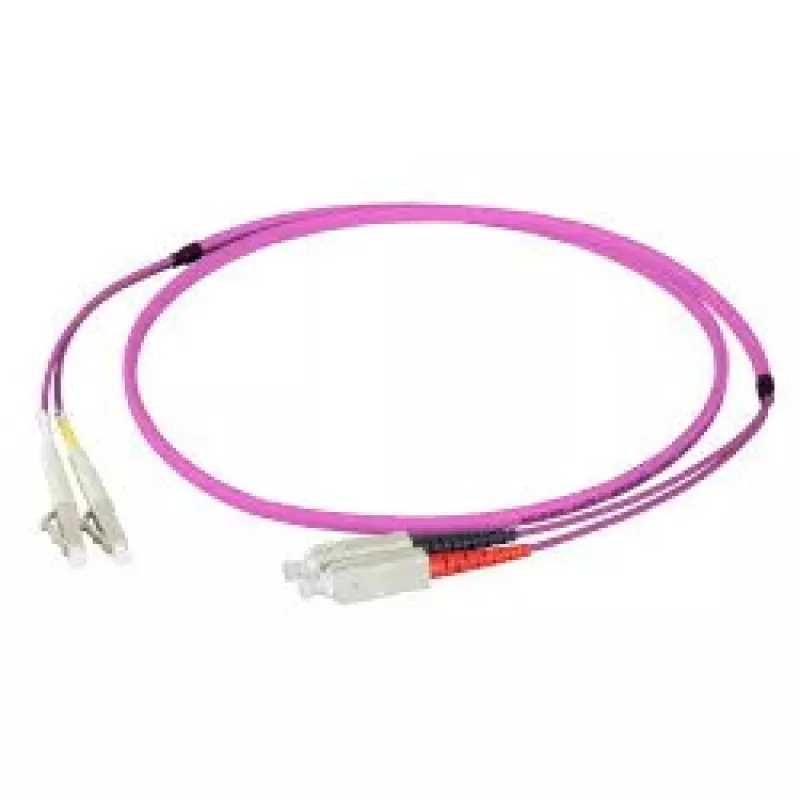

Optický kábel EFB Elektronik O0323FT.10 — OM4, 10 m, LC na SC, I-V(ZN) HH, fialový

EFB Elektronik O0323FT.10 is a 10 m InfiniBand/fibre optic duplex jumper with LC to SC connectors and OM4 multimode fibres. The flat twin design includes an additional outer jacket that improves stability and makes installation easier than with standard jumpers. The outer jacket material is LSZH (low smoke zero halogen), and the cable is specified as I-V(ZN) HH with 50 µm core diameter, violet colour.

Advantages

The flat twin duplex construction provides greater mechanical stability and simplifies routing and connector mating compared with standard round jumpers. The additional outer jacket protects the fibres from handling stress and abrasion. LSZH jacket material reduces toxic fumes in case of fire and is suitable for use in enclosed or public spaces. OM4 multimode fibre supports higher bandwidth and improved performance in short to medium range data links.

Suitable for

• Data centre interconnects and InfiniBand links
• Fibre patch panels and horizontal cabling
• High-density equipment with LC and SC ports
• Indoor installations where LSZH jacket is required

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0323FT.10
• Length: 10 m
• Cable type: I-V(ZN) HH
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Connector A: LC
• Connector B: SC
• Jacket: Flat twin with additional outer jacket, LSZH
• Colour: Violet
• EAN: 4049759157463

How to use

Route the flat twin duplex cable between the two devices, avoiding tight bends and sharp edges. Plug the LC connector into the LC port and the SC connector into the SC port, ensuring correct alignment and firm seating. Use cable management clips or trays to secure the cable and maintain minimum bend radius for OM4 fibre. Test the link after installation to verify continuity and signal performance.
