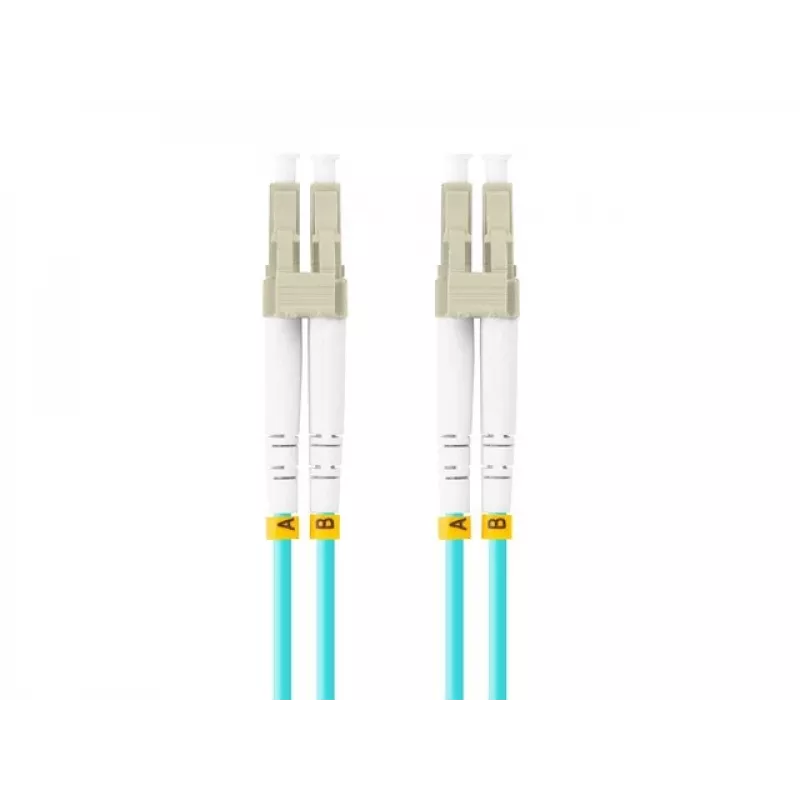

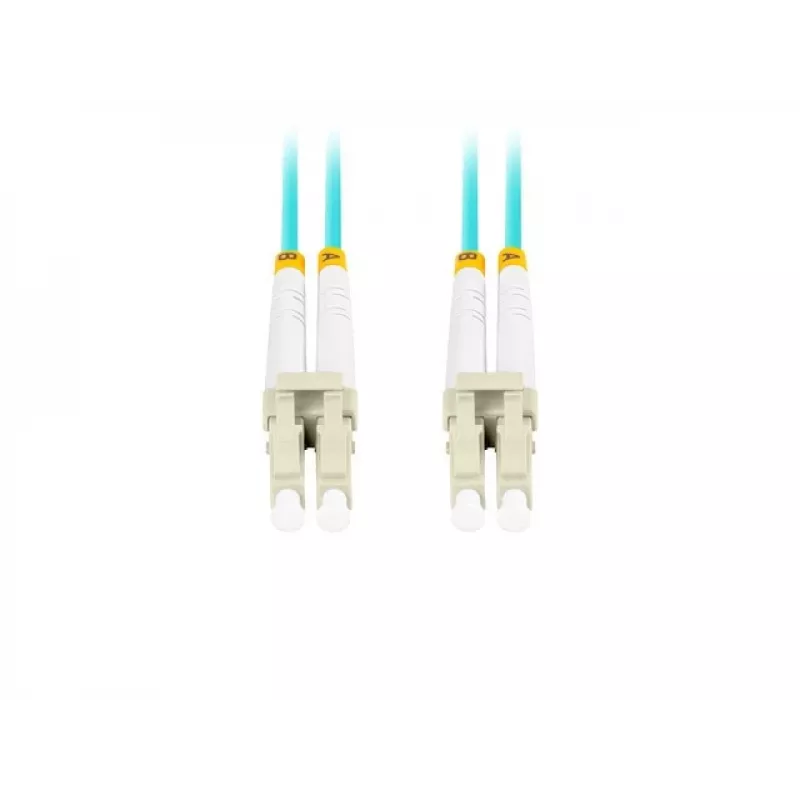

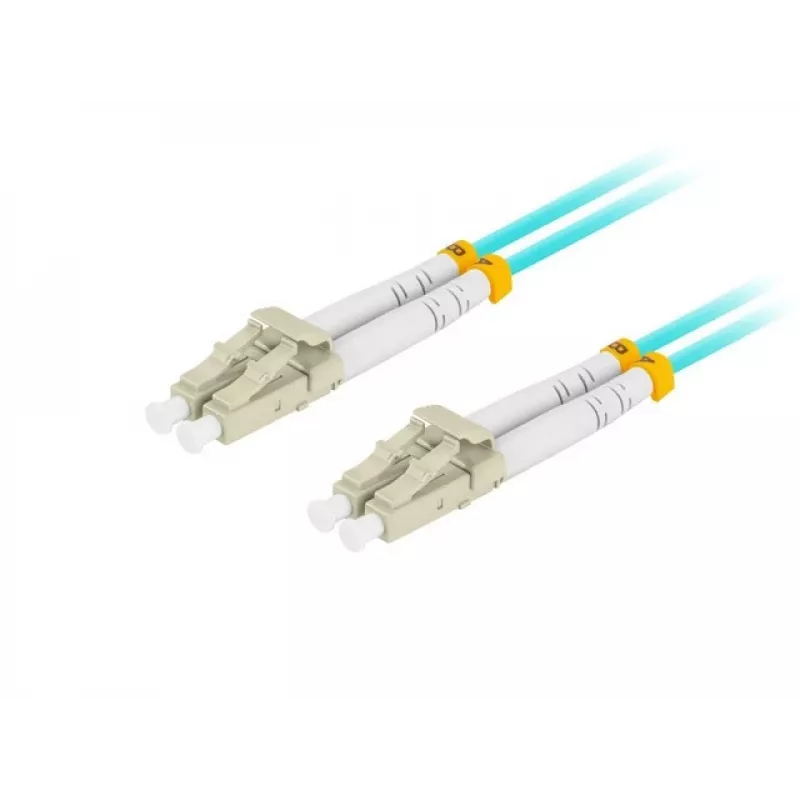

Optický kábel LANBERG FO-LULU-MD31-0010-TQ 1 m OM3 LC–LC aqua

Lanberg FO-LULU-MD31-0010-TQ is a 1 m OM3 multimode fibre optic patch cable with LC connectors on both ends in Aqua colour. It is designed for short-range high-speed multimode links such as InfiniBand and enterprise network connections, providing a duplex LSZH cable with 50/125 µm cores and a 3.0 mm jacket.

Advantages

The cable uses LC connectors with UPC polishing for low insertion loss (< 0.25 dB) and high return loss (> 50 dB). Its OM3 multimode fibre and 50/125 µm diameter support high-bandwidth short-range applications. The LSZH jacket reduces smoke and toxic emissions in case of fire, and the 3.0 mm duplex construction offers reliable handling and connector stability.

Suitable for

• Short-range data centre and server room connections
• InfiniBand and high-speed multimode links
• Patch panels, transceiver-to-equipment links and switch interconnects

Key specifications

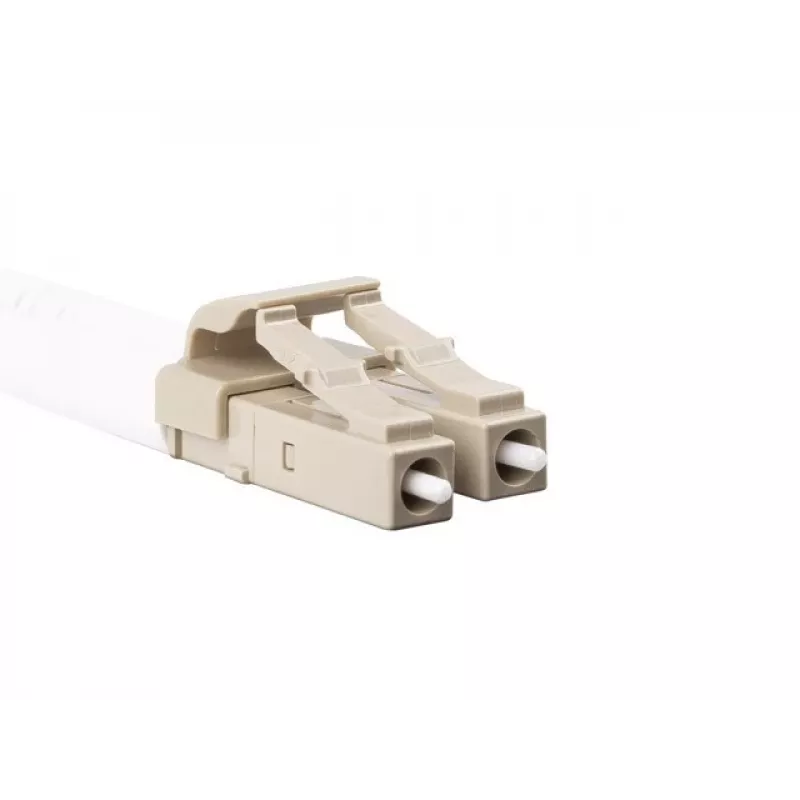

• Connector type: LC–LC
• Polishing standard: UPC
• Fiber type: OM3 multimode (MM)
• Core/cladding diameter: 50/125 µm
• Cable construction: Duplex
• Cable diameter: 3.0 mm
• Jacket: LSZH
• Insertion loss: < 0.25 dB
• Return loss: > 50 dB
• Operating temperature: -40 – 85 °C
• Minimum bend radius: 7.5 mm
• Color: Aqua
• Length: 1 m

How to use

Inspect connectors and ports for debris before mating. Align LC connectors with the corresponding LC ports on transceivers or patch panels and push until the latch clicks to secure the connection. Avoid excessive bending near the connector; maintain at least the specified 7.5 mm bend radius. For removal, press the LC latch and pull the connector straight out.

Recommendations

Store the cable coiled loosely without sharp bends, keep dust caps on unused connectors, and route cables in trays or organisers to prevent strain. Use OM3 LC–LC patch cables for short-distance high-speed multimode links; for longer distances or single-mode requirements select appropriate fibre types.
