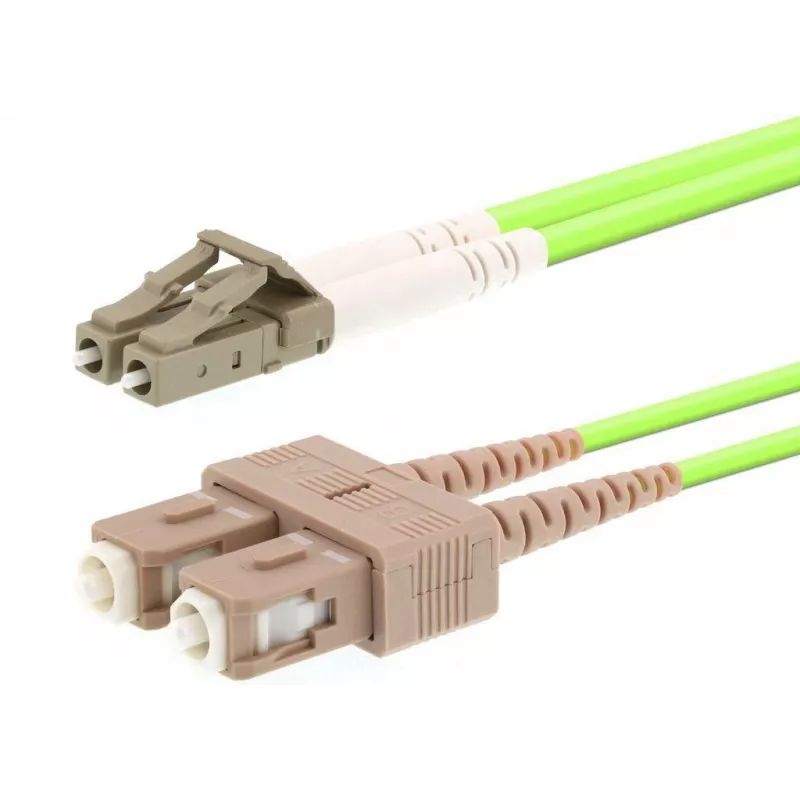

Optický kábel LOGON AL5LCSC10I/5I OM5 10 m LC–SC 50 µm plný duplex svetlozelený

LOGON AL5LCSC10I/5I OM5 10 m LC–SC multimode fibre optic cable is a 10-metre, full-duplex patch lead with an LC connector on one end and an SC connector on the other. Built with 50 µm WideBand OM5 bend-insensitive multimode fibre in a light green jacket, this cable is optimized for short wavelength division multiplexing (SWDM) systems and high-speed interconnects in data centres, server racks and network equipment requiring multimode OM5 performance.

Advantages

The OM5 fibre core provides laser-optimized multimode performance across a wider wavelength range (850–950 nm) than traditional OM4, enabling multi-wavelength systems and effective duplex transmission for 40/100/400 Gb/s using SWDM technology. Bend-insensitive construction reduces macro- and micro-bending losses, allowing reliable operation in installations with tight bend radii and compact cable organizers. The cable is coated with a dual-layer UV-curable acrylate for stable mechanical and environmental performance.

Suitable for

• Short-reach high-speed links in data centres and server rooms
• Interconnects between switches, routers and transceivers using LC and SC ports
• Multi-wavelength SWDM deployments aiming for 40/100/400 Gb/s
• Environments requiring tight bend radius routing and compact cable management

Key specifications

• Fibre type: WideBand OM5 multimode, bend-insensitive
• Core diameter: 50 µm
• Length: 10 m
• Connectors: LC (one end) to SC (other end)
• Transmission: Full duplex multimode
• Optimized wavelength range: 850–950 nm
• Jacket colour: Light green
• Coating: Dual-layer UV-curable acrylate
• Designed for SWDM multi-wavelength systems and compatibility with OM4 fibres

How to use

Inspect connectors and optical ports for dust or damage before connecting. Align the LC connector to the corresponding LC port and the SC connector to the SC port, inserting each until it clicks or seats firmly. Ensure both ends are clean using appropriate fibre-optic cleaning tools to avoid signal loss. Route the cable following recommended bend-radius guidelines and secure it with cable management accessories; avoid sharp bends, crushing, or excessive tension on the cable. When disconnecting, pull on the connector body rather than the cable jacket.

Recommendations

For best performance, use this OM5 cable with compatible SWDM-capable transceivers and maintain cleanliness of connector endfaces. Observe the manufacturer’s minimum bend radius specifications during installation and avoid repeated tight flexing. Store unused cable lengths in loose coils and protect connector endfaces with dust caps when not in use.
