Optický transceiver modul PLANET MFB-F20

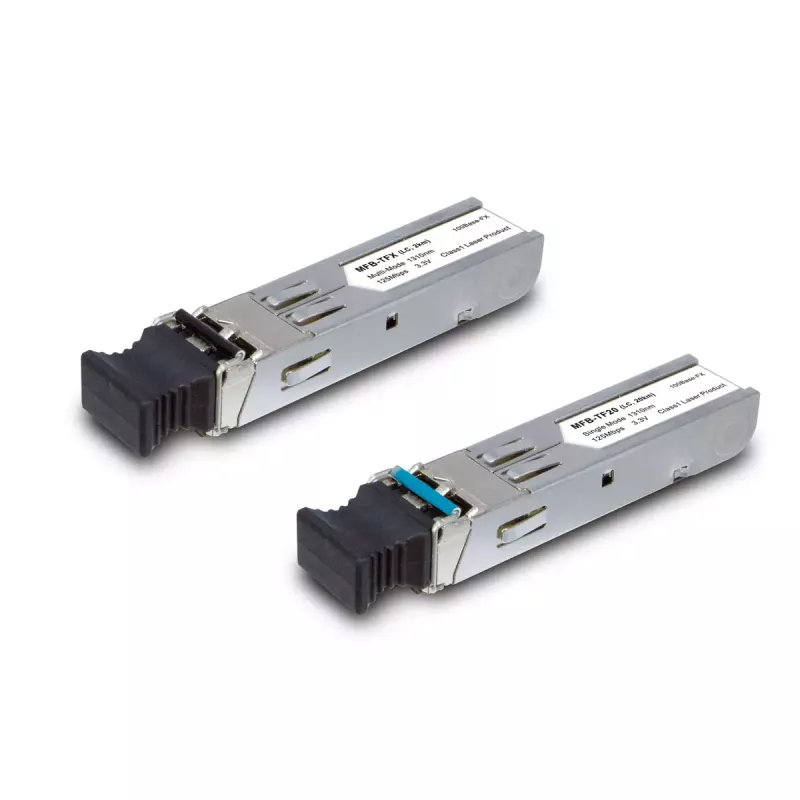

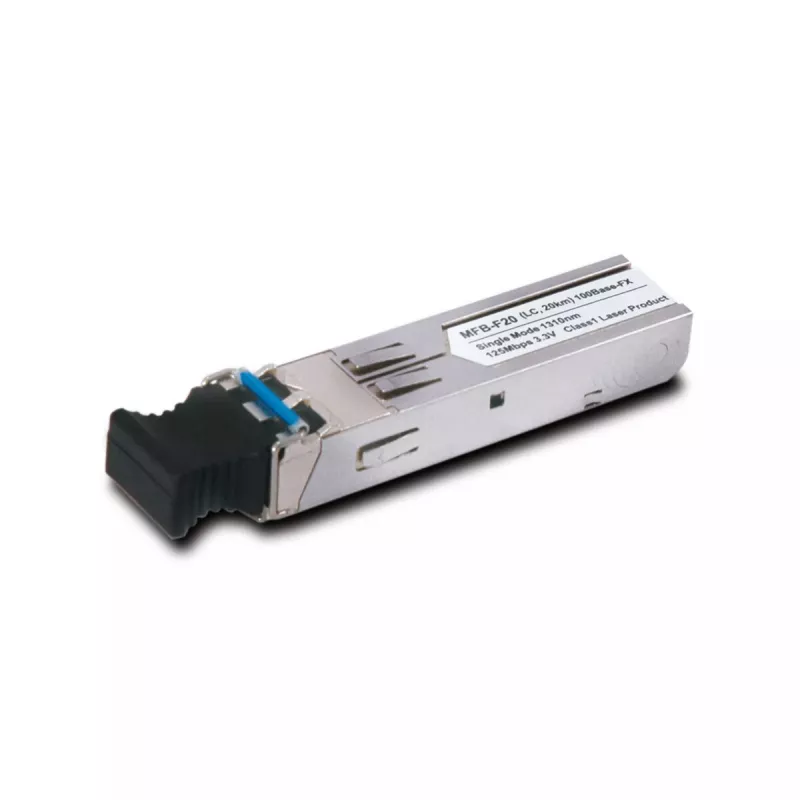

The PLANET MFB-F20 is an SFP fiber optic transceiver module designed for 100 Mbit/s duplex data links over optical fiber. Compliant with the SFP Multisource Agreement (MSA), the module is hot-pluggable and fits SFP MSA–compatible ports for easy installation without interrupting host equipment operation. Using a 1310 nm FP laser diode, this transceiver supports transmission distances up to 2 km on multimode fiber and up to 60 km on single-mode fiber. The MFB-F20 belongs to the MFB-T series intended for industrial Ethernet use, offering reliable performance across a wide operating temperature range (-40°C to 75°C) and resistance to electrically and climatically demanding environments.

Advantages

The MFB-F20 provides standard SFP form factor compatibility and hot-pluggable convenience, enabling quick module swaps and upgrades. Its 1310 nm FP laser supports long-reach connections suitable for both multimode and single-mode fiber links. The device is engineered for wide-temperature industrial environments, ensuring stable operation in harsh electrical and climatic conditions. The metallic housing offers durability and electromagnetic resilience appropriate for network equipment.

Suitable for

• 100Base-FX links in enterprise and industrial networks
• Long-distance fiber connections up to 60 km over single-mode fiber
• Shorter runs up to 2 km over multimode fiber
• Environments requiring wide operating temperatures (-40°C to 75°C)
• Systems with SFP MSA compatible ports requiring hot-pluggable transceivers

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Data rate: 100 Mbit/s
• Wavelength: 1310 nm (FP laser diode)
• Maximum distance: up to 2 km on multimode fiber; up to 60 km on single-mode fiber
• Operating temperature: -40°C to 75°C
• Form factor: SFP MSA compliant, hot-pluggable
• Product colour: Metallic
• Manufacturer part number (MPN): MFB-F20
• EAN: 4711213688836

How to use

Insert the MFB-F20 transceiver into an SFP MSA–compatible port on the host device while the host remains powered, if supported, to take advantage of hot-pluggable capability. Connect the appropriate single-mode or multimode fiber cable to the transceiver’s optical connector, ensuring correct connector type and polarity. Verify link settings on the host device to match 100Base-FX parameters. Monitor the host equipment’s port status indicators or management interface to confirm a successful link and correct operation.
