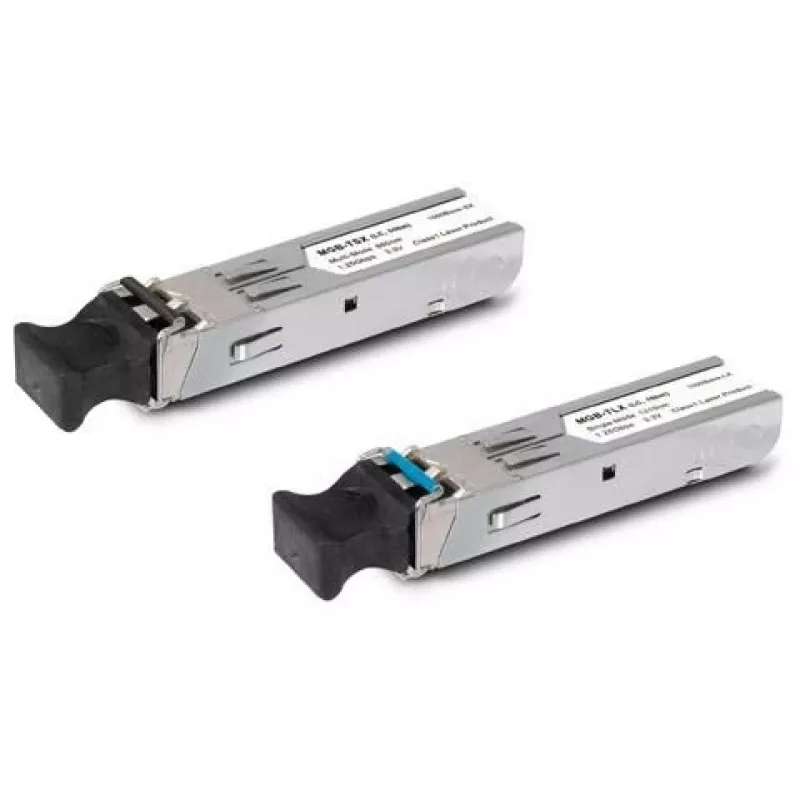

Optický transceiver modul PLANET MGB-LA10

The PLANET MGB-LA10 is an SFP fiber optic transceiver module designed for 1000BASE (Gigabit) Ethernet links over single-mode fiber. Compliant with the SFP Multisource Agreement (MSA), the module is hot-pluggable and compatible with SFP ports on switches and other network equipment. Operating at a wavelength of 1310 nm and supporting a data rate up to 1000 Mbit/s, the MGB-LA10 is suitable for extending network reach where a reliable single-mode fiber connection is required.

Advantages

The MGB-LA10 offers a compact Small Form Factor Pluggable design that simplifies installation and replacement without interrupting host equipment. As an MSA-compliant transceiver, it provides broad interoperability with SFP-capable devices. Its single-mode operation at 1310 nm supports long-distance links typical for 1000BASE-LX applications, and its compliance with IEEE 802.3ah ensures adherence to Ethernet standards.

Suitable for

• Extending Gigabit Ethernet links over single-mode fiber
• Installation in SFP slots of managed and unmanaged switches, routers, and media converters
• Network upgrades and fiber backbone connections requiring 1310 nm transceivers

Key specifications

• Form factor: SFP (Small Form Factor Pluggable)
• Data rate: 1000 Mbit/s (Gigabit Ethernet)
• Wavelength: 1310 nm
• Fiber type: Single-mode fiber
• Standards: IEEE 802.3ah, SFP MSA compliant
• Manufacturer part number (MPN): MGB-LA10
• EAN: 4711213686399

How to use

Insert the MGB-LA10 module into an available SFP slot of a compatible switch, router, or media converter while the host device is powered on or according to the host manufacturer’s hot-plug procedure. Connect the single-mode fiber cable with an LC connector to the module’s optical port. Ensure that the remote link partner uses a compatible 1310 nm single-mode transceiver and that link settings on both devices match (speed and duplex are typically negotiated automatically for Gigabit Ethernet).

Recommendations

Use the MGB-LA10 with SFP-compliant equipment and matching single-mode transceivers at the remote end. Verify fiber cleanliness and connector condition before installation, and follow ESD precautions when handling the module to avoid damage.
