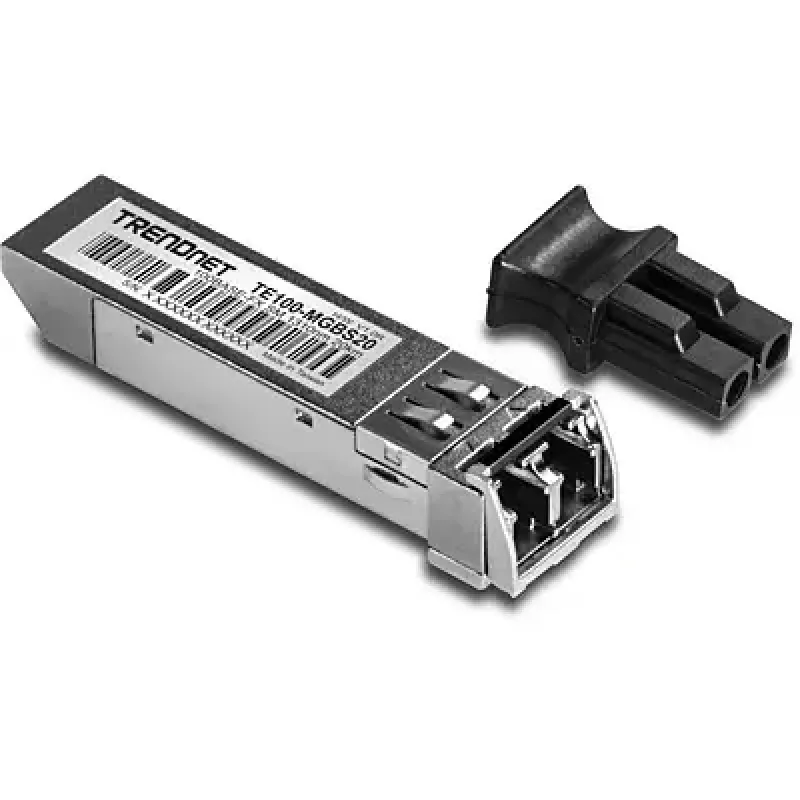

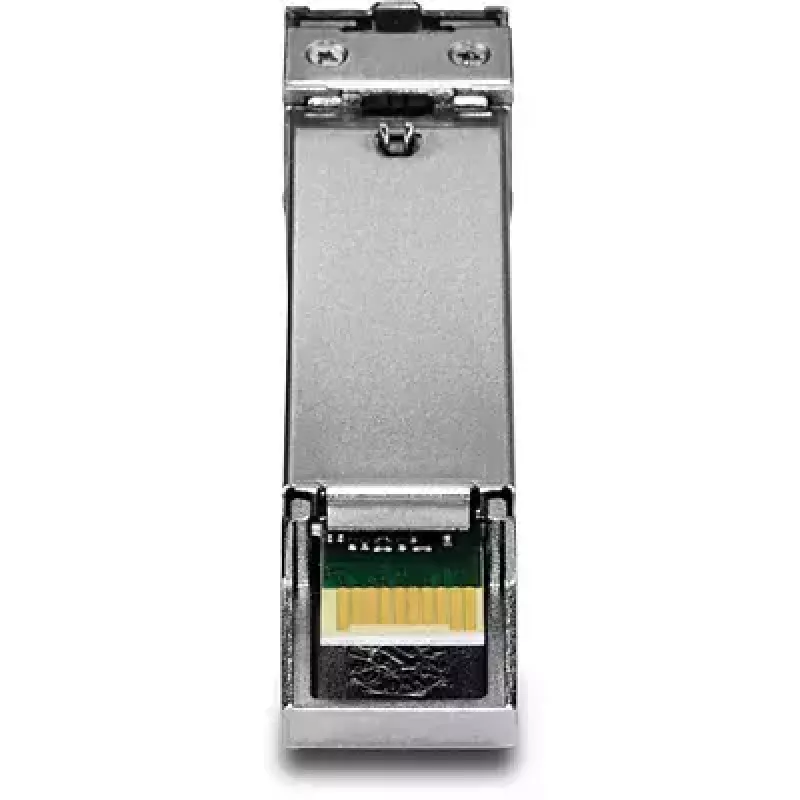

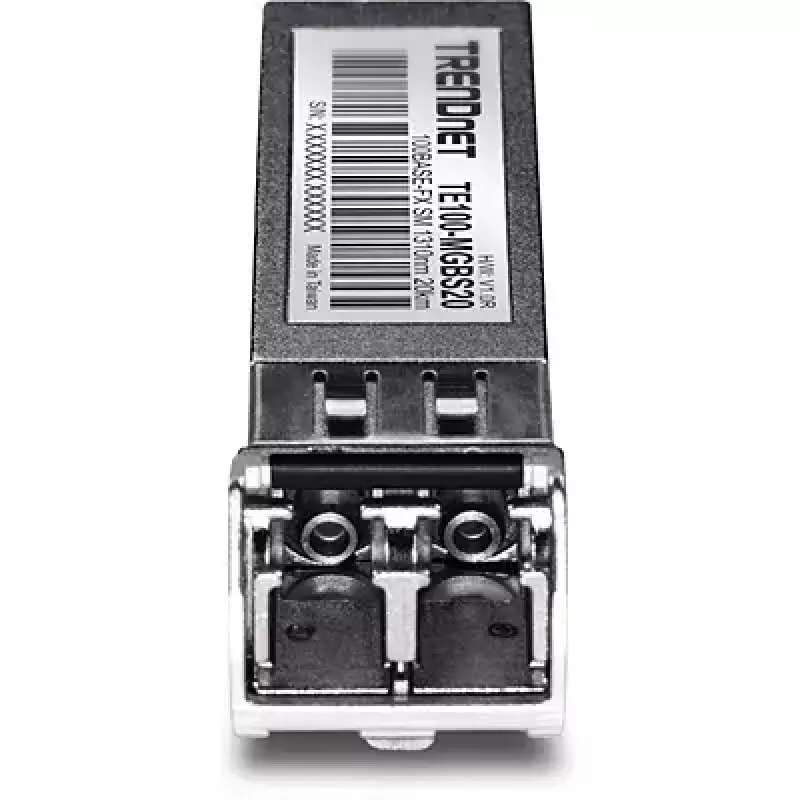

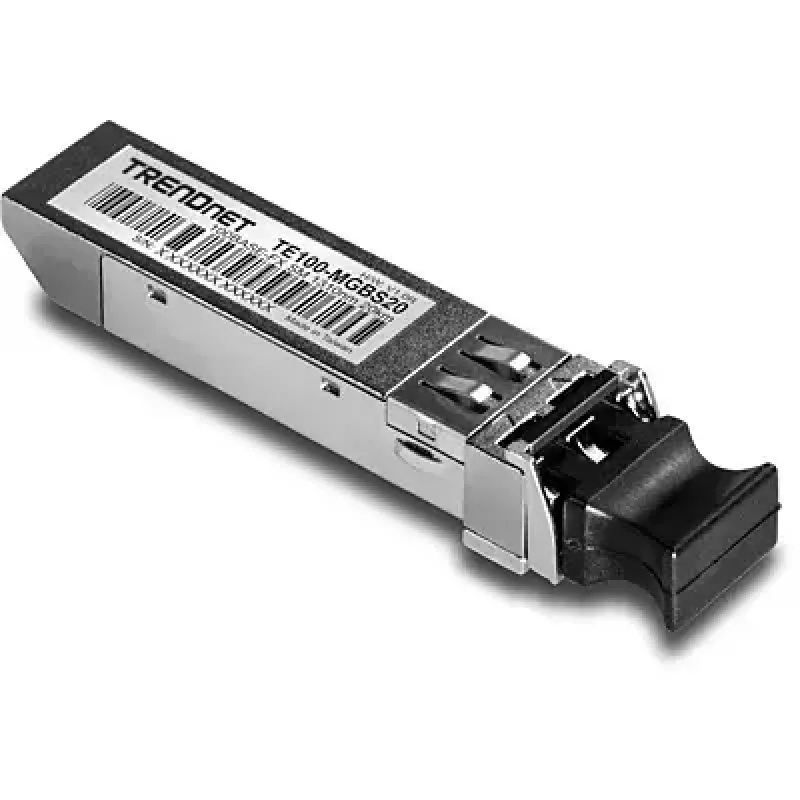

Optický transceiver modul Trendnet TE100-MGBS20

The Trendnet TE100-MGBS20 is a fiber optic SFP transceiver module designed for single-mode fiber links. It supports data transfer rates up to 155 Mbit/s over distances up to 20 km and operates at a wavelength of 1310 nm. The module fits standard SFP (Mini-GBIC) slots, uses a Duplex-LC connector and is enclosed in a compact metal housing with low power consumption and industry certifications.

Advantages

This transceiver provides reliable single-mode fiber connectivity with support for 155 Mbps links and a reach of up to 20 km. Its Duplex-LC compatibility ensures broad interoperability with common fiber cabling, while the compact metal casing and low typical power consumption (approximately 0.439 W) make it suitable for dense networking environments. CE and FCC certifications confirm compliance with common regulatory standards.

Suitable for

• Connecting network equipment with standard SFP slots to single-mode fiber
• Long-distance links within campus or metro networks up to 20 km
• Upgrading switches or routers to support fiber-based 155 Mbps connections

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 155 Mbit/s
• Wavelength: 1310 nm
• Fiber type: Single-Mode
• Connector: Duplex-LC
• Maximum link distance: 20 km
• Typical power consumption: 0.439 W
• Dimensions (W×D×H): 13 × 53 × 10 mm
• Weight: 0.018 kg
• Certifications: CE, FCC

How to use

Insert the Trendnet TE100-MGBS20 into a compatible SFP (Mini-GBIC) slot on your switch or router. Connect the Duplex-LC single-mode fiber cable to the module and ensure proper fiber polarity. Verify link status on the host device and configure interface settings as required by your network (for example speed and duplex where applicable). Handle the module by its casing and keep fiber connectors covered when not in use to prevent contamination.

Recommendations

Use single-mode Duplex-LC fiber rated for distances up to 20 km and follow manufacturer guidelines for ESD protection during installation. Confirm compatibility with your equipment firmware and consult device documentation for supported SFP module lists.
