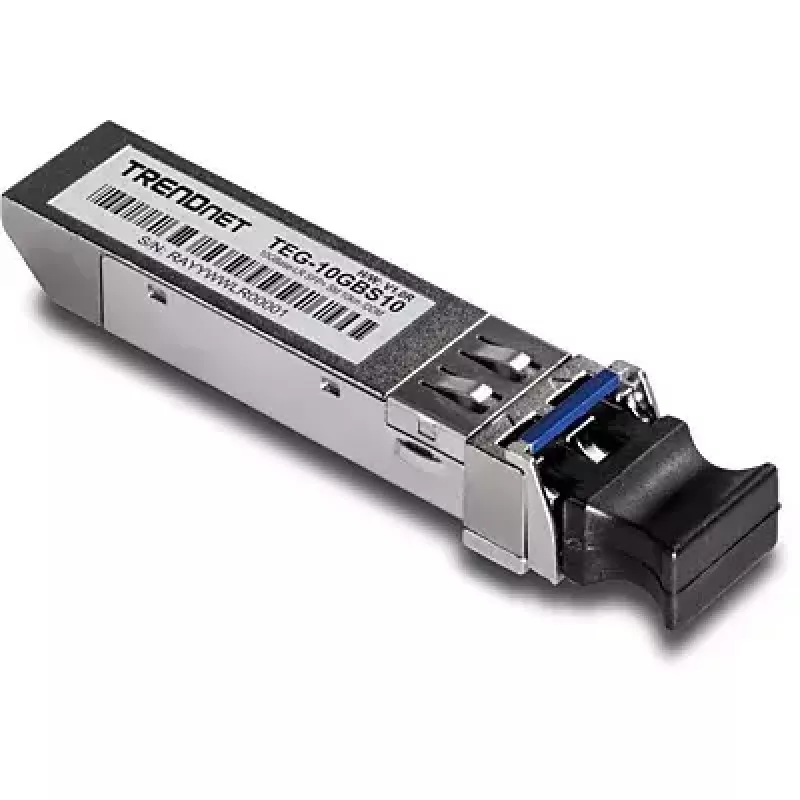

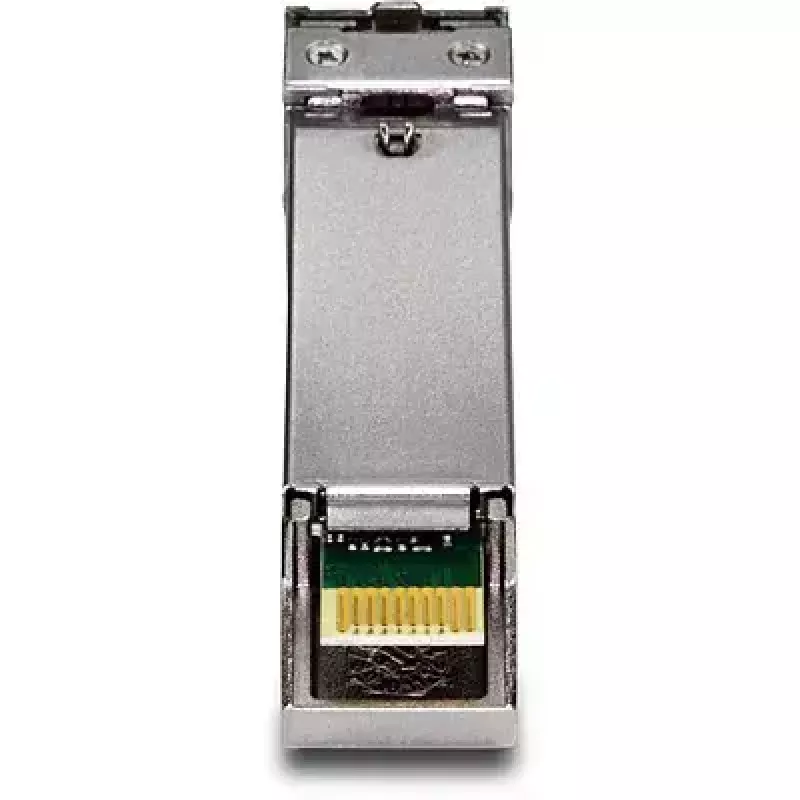

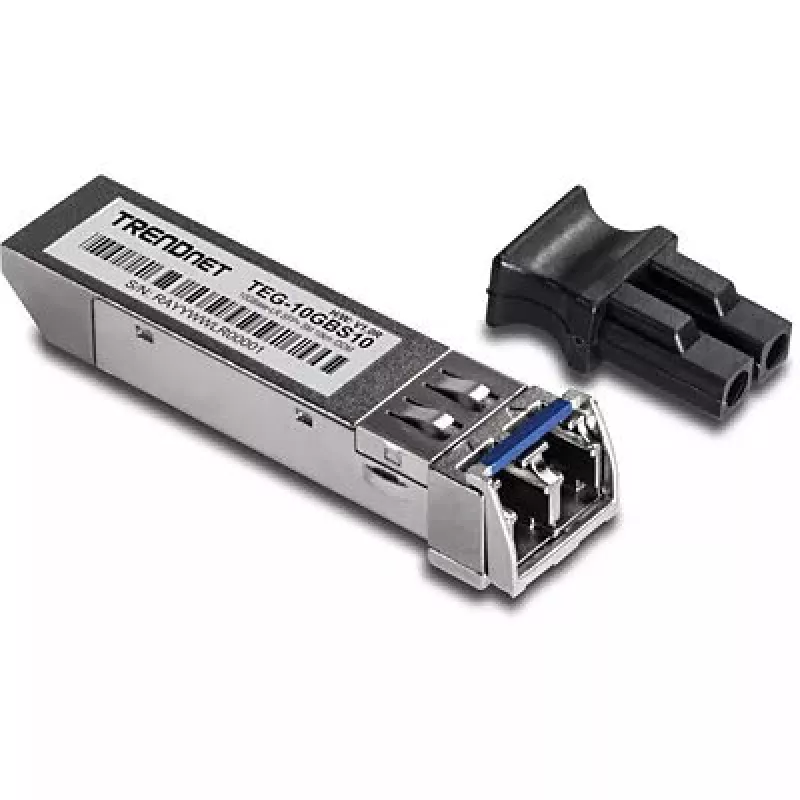

Optický transceiver modul Trendnet TEG-10GBS10

The TRENDnet TEG-10GBS10 is a hot-pluggable 10GBASE-LR SFP+ single‑mode fiber optic transceiver module designed for 10 Gbps Ethernet links. It uses a duplex LC connector, operates at a 1310 nm wavelength, and supports link distances up to 10 km. The module includes Digital Diagnostics Monitoring (DDM) for real‑time reporting of transmit/receive power, temperature, and supply voltage, and requires a single 3.3 V power supply. It meets common SFP/SFF and 10 Gigabit Ethernet standards and is intended for use in compatible SFP+ slots.

Advantages

This SFP+ transceiver is hot-pluggable for easy installation and replacement without powering down equipment. It supports single‑mode 1310 nm transmission for long‑distance links up to 10 km and delivers up to 10.5 Gbps throughput. Integrated DDM provides monitoring of key optical and electrical parameters, and the compact, standards-compliant design ensures compatibility with MSA‑compliant SFP+ slots and industry protocols.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers over single‑mode fiber
• Long‑reach campus, data center or metropolitan area fiber links up to 10 km
• Equipment requiring MSA‑compliant SFP+ modules with LC duplex connectors

Key specifications

• Form factor: SFP+ (hot-pluggable)
• Standard: 10GBASE‑LR, compliant with SFF‑8431, SFF‑8432, SFF‑8472, IEEE802.3ae
• Wavelength: 1310 nm (single mode)
• Maximum distance: up to 10 km (6.2 miles)

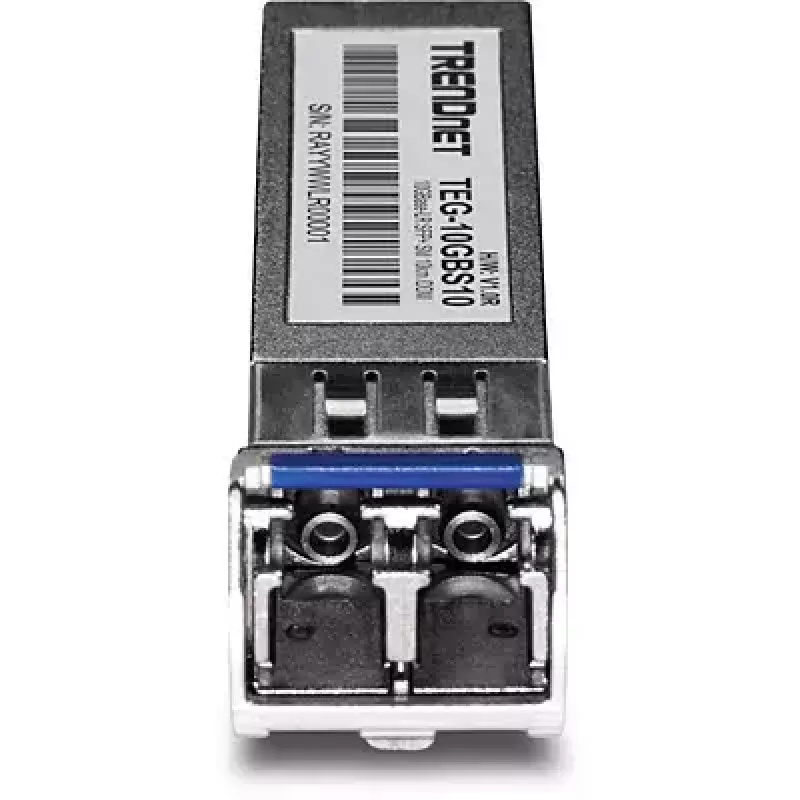

• Connector: LC duplex
• Data rate: up to 10.5 Gbps (module supports 10 Gbit/s operation)
• Power supply: single 3.3 V
• Operating temperature: 0 to 70 °C (32 to 158 °F)
• Typical power consumption: ~0.522 W
• Certifications: CE, FCC
• Dimensions (W×D×H): 14.8 × 56.5 × 11.8 mm
• Weight: 0.022 kg

How to use

Insert the TEG-10GBS10 module into a compatible MSA‑compliant SFP+ slot on a switch, router, or host adapter until it seats firmly. Connect single‑mode fiber using a duplex LC patch cable and verify link activity on both ends. Monitor module status and optical parameters via the host device using DDM if supported. To remove, use the module’s latch or release mechanism and pull straight out while the system is powered if hot‑swap is required.

Recommendations

Verify compatibility with your network equipment’s SFP+ slot and firmware before deployment. Use single‑mode LC duplex fiber rated for 10G links, maintain proper fiber cleanliness, and operate the module within the specified temperature range for reliable performance.
