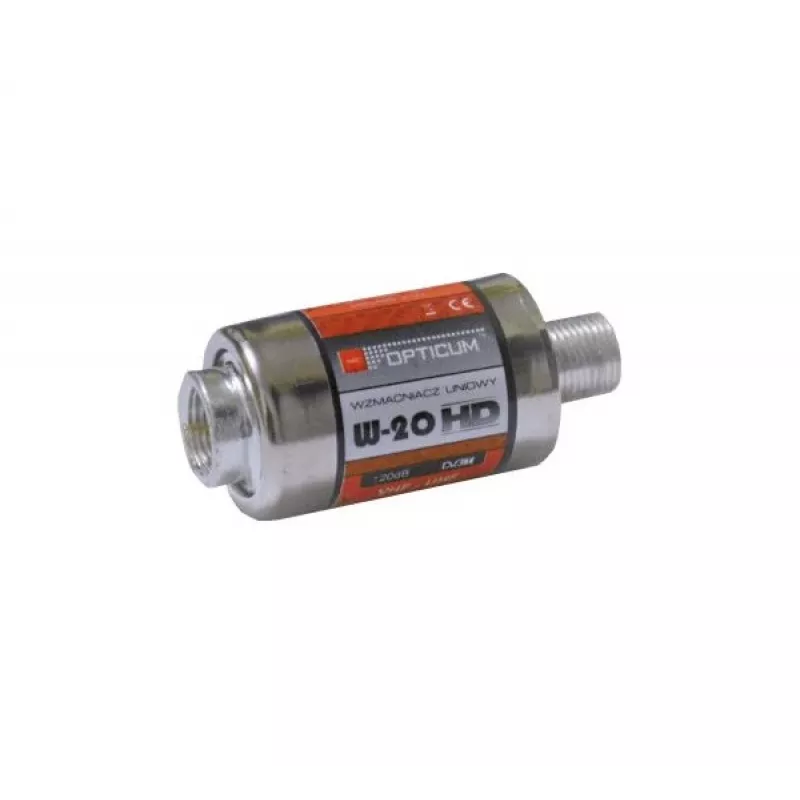

OPTICUM W-20 in-line anténny zosilňovač 20dB

The OPTICUM W-20 is a high-performance in-line antenna amplifier designed to boost weak terrestrial TV and radio signals. With a gain of 20 dB, it compensates for signal loss in long cable runs or splitter installations, ensuring reliable reception of DVB-T/T2, FM, and DAB+ broadcasts. The amplifier features a compact, shielded metal housing and is powered via phantom power through the coaxial cable, eliminating the need for a separate power outlet at the antenna location.

Advantages

Easy to install directly in the antenna cable line. The 20 dB gain effectively strengthens signals without introducing excessive noise (noise figure < 3.5 dB). Supports a wide frequency range from 47 to 862 MHz, covering VHF, UHF, FM, and DAB+ bands. The F-type connectors ensure secure and low-loss connections. Phantom power supply (5-12 V DC) simplifies installation by using the same coaxial cable for both signal and power.

Suitable for

• Improving weak terrestrial TV signals in areas with poor reception
• Compensating for signal loss due to long cable runs or multiple splitters
• Enhancing FM and DAB+ radio signals
• Indoor and outdoor use (operating temperature -20 to +50 °C)

Key specifications

• Amplification Gain: 20 dB
• Frequency Range: 47 - 862 MHz
• Noise Figure: < 3.5 dB
• Max Output Level: 95 dBµV (for 2 TV channels)
• Input/Output Impedance: 75 Ohm
• Connector Type: F-type (female)
• Power Supply: Phantom power 5-12 V DC via coaxial cable
• Current Consumption: 30 mA
• Housing Material: Metal (shielded)
• Installation Type: In-line (cable-mounted)
• Number of Inputs/Outputs: 1/1
• Return Loss: > 10 dB

Recommendations

For optimal performance, use a high-quality power inserter (not included) to supply phantom power. Ensure all connections are tight and weatherproofed if used outdoors. This amplifier is ideal for single-room installations or as a pre-amplifier before a distribution amplifier.
