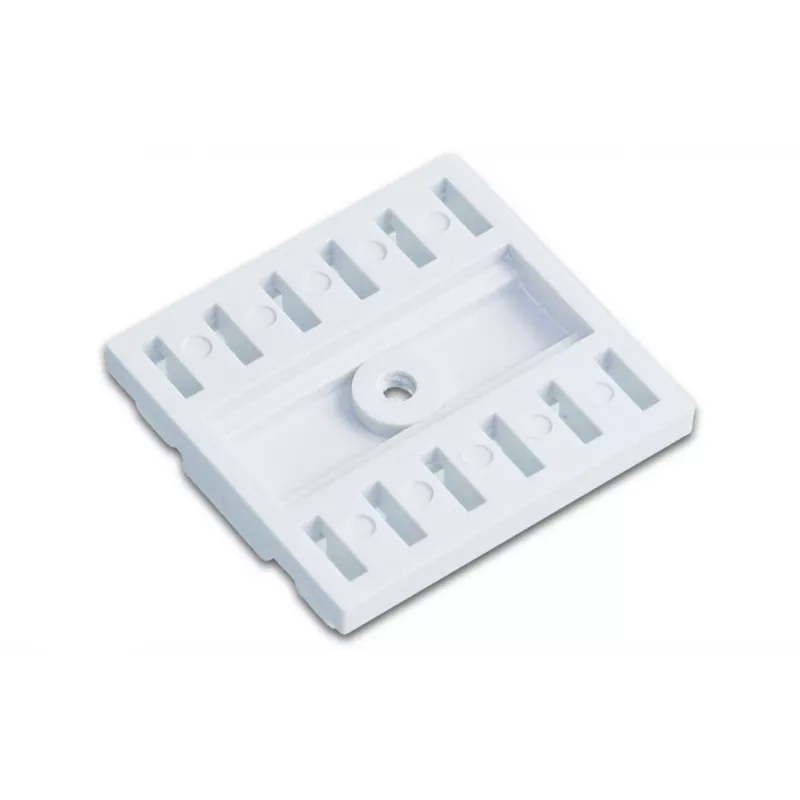

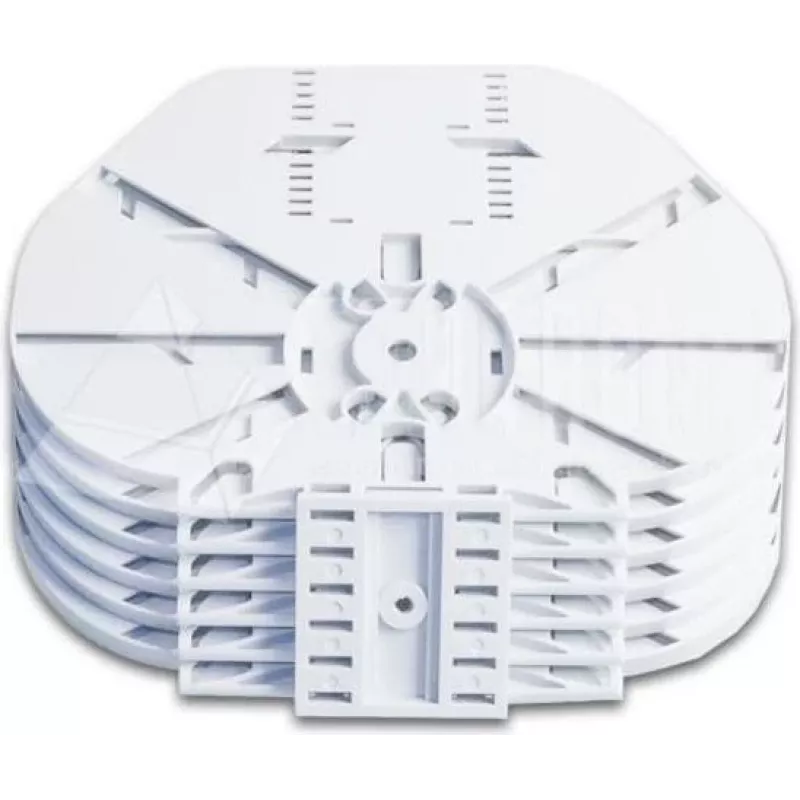

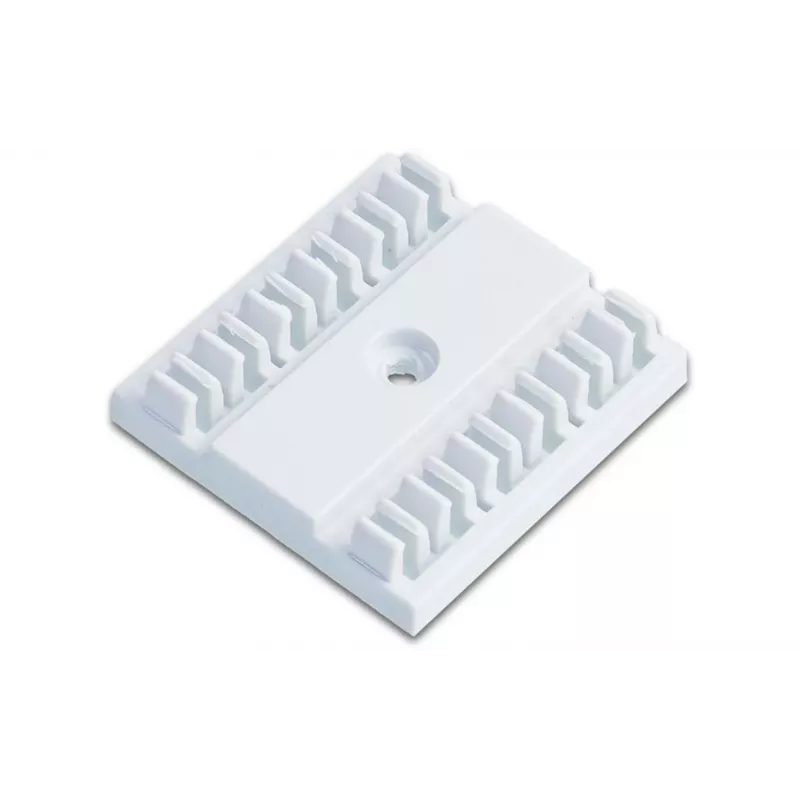

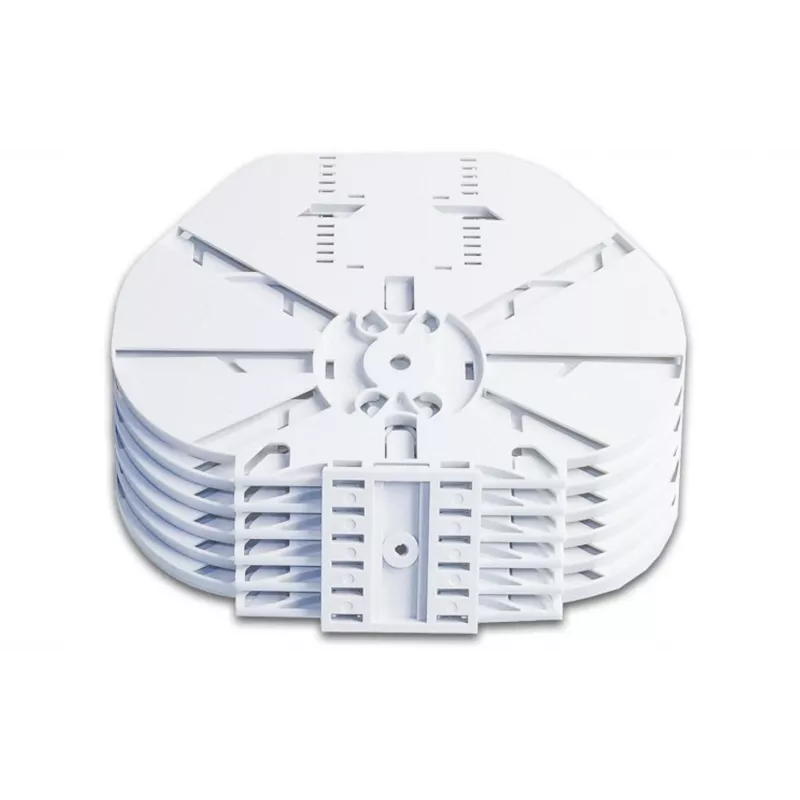

Optotec FOCUS-SAMR-HD4-12H zvárací modul pre LFC rozvádzače, 4 Single Reduced (CTR) zváracie kazety, max. 48 vlákien, FTTx

Manage up to 48 fusion splices in high-density FTTx networks with the Optotec FOCUS-SAMR-HD4-12H splice module. Engineered for Optotec LFC closures, it integrates four Single Reduced (CTR) splice trays, each accommodating 12 fibers, to maximize fiber capacity while maintaining organized routing and bend radius control.

Overview

The FOCUS-SAMR-HD4-12H is a splice management solution designed for outdoor and harsh environments. It supports both single-mode and multimode fibers, making it versatile for telecommunication infrastructure. The module mounts internally within compatible LFC closures, providing a secure and protected environment for splices.

What stands out

• High-density design: 48 fibers in a compact footprint using four Single Reduced trays.
• Optimized for FTTx: Ideal for fiber-to-the-x deployments requiring efficient splice organization.
• Integrated fiber routing: Built-in bend radius control protects fiber integrity.
• Durable construction: Made from engineering plastic for long-term reliability.

Technical details

• Maximum fiber count: 48
• Number of splice trays: 4
• Splice tray type: Single Reduced (CTR)
• Fibers per tray: 12
• Splice method: Fusion splicing
• Supported fiber types: Single-mode (SM) & Multimode (MM)
• Compatible closures: Optotec LFC Series
• Application: FTTx networks, telecommunication infrastructure
• Material: Durable engineering plastic
• Mounting: Internal to closure
• Environmental suitability: Outdoor, harsh environments

Our verdict

A robust splice module that delivers high fiber density and reliable performance for FTTx and telecom applications, seamlessly integrating with Optotec LFC closures.
