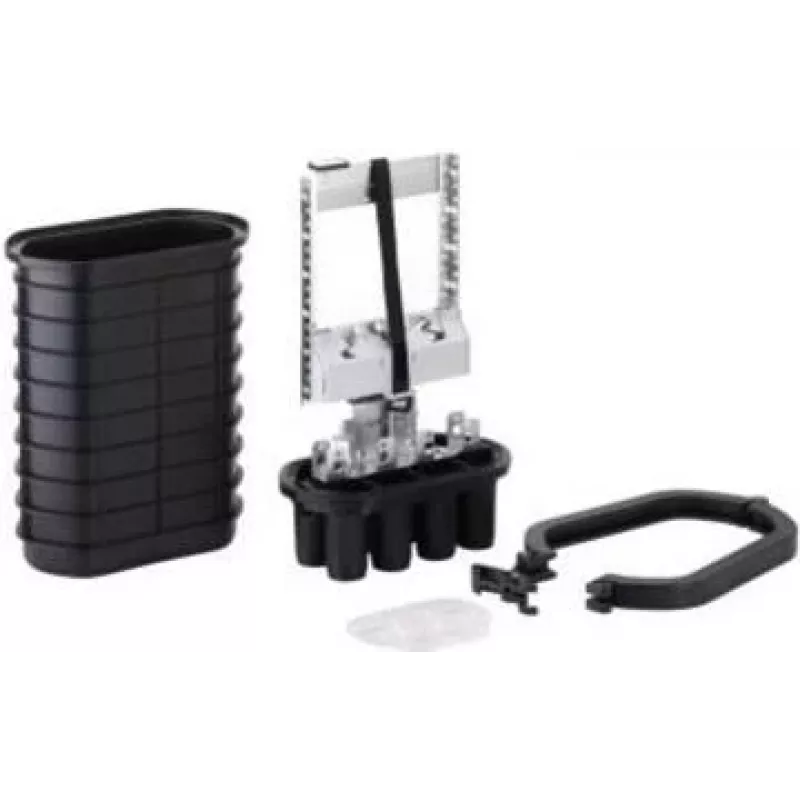

Optotec IP68 Outdoor Dome Closure Compact 144 Fibers FTTx (FOCUS-CODC2-AA)

The FOCUS-CODC2-AA stands out as a compact dome closure engineered for demanding outdoor fibre networks. Its IP68-rated housing protects up to 144 splices in aerial, duct, or direct-buried installations, while the re-enterable mechanical sealing system simplifies maintenance without specialised tooling.

Highlights

• Supports up to 144 fibres using 12× 12-fibre or 6× 24-fibre splice trays
• IP68 ingress protection for submerged or harsh outdoor environments
• Multi-port cable entry: 1 oval port (2 cables up to Ø25 mm) and 4 round ports (8 cables up to Ø15 mm)
• UV-stabilised thermoplastic body withstands prolonged sun exposure
• Operating temperature range from -40°C to +70°C

In daily use

Technicians appreciate the closure's compact form and flexible mounting options—pole, wall, manhole, or direct burial. The mechanical seal allows repeated re-entry for network upgrades, and the dome design keeps splice trays organised and accessible. With support for both fusion and mechanical splices, it adapts to various FTTx deployment scenarios.

Full specifications

• Max fibre capacity: 144
• Ingress protection: IP68
• Closure type: Dome
• Design: Compact
• Application environment: Outdoor (aerial, duct, direct buried)
• Network compatibility: FTTx
• Cable ports: 1 oval (2 cables up to Ø25 mm), 4 round (8 cables up to Ø15 mm)
• Splice tray capacity: 12× 12-fibre or 6× 24-fibre
• Splice type support: Fusion and mechanical
• Sealing method: Mechanical (re-enterable)
• Material: UV-stabilised thermoplastic
• Operating temperature: -40°C to +70°C
• Mounting options: Pole, wall, manhole, direct buried
• Re-entry capability: Fully re-enterable
• Colour: Black
• Pressure test: 70 kPa (0.7 bar) for 24 hours

Final note

The FOCUS-CODC2-AA delivers a balance of capacity, durability, and ease of access for fibre distribution in challenging outdoor conditions.
