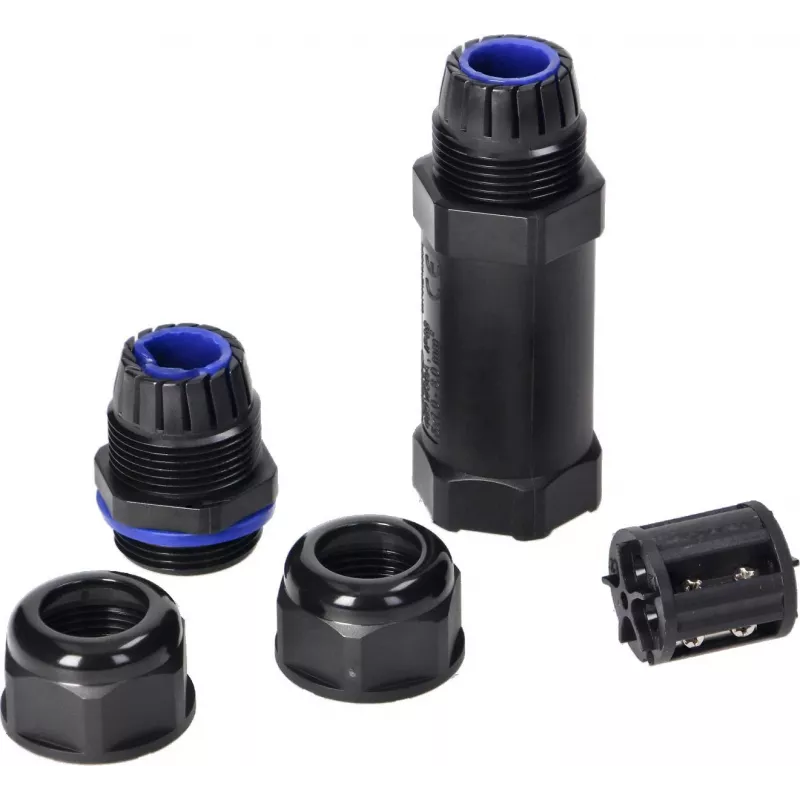

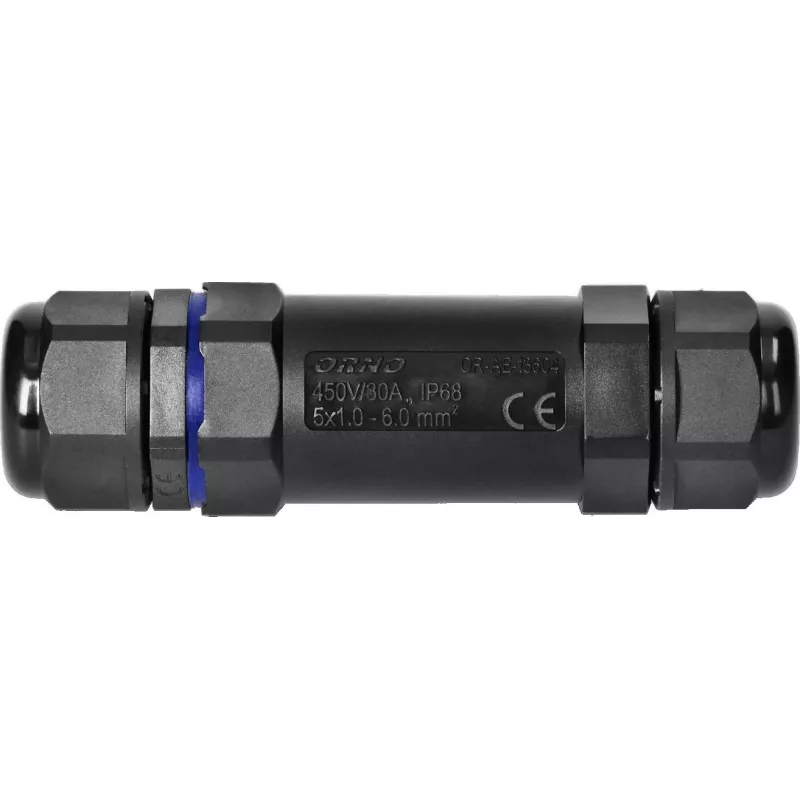

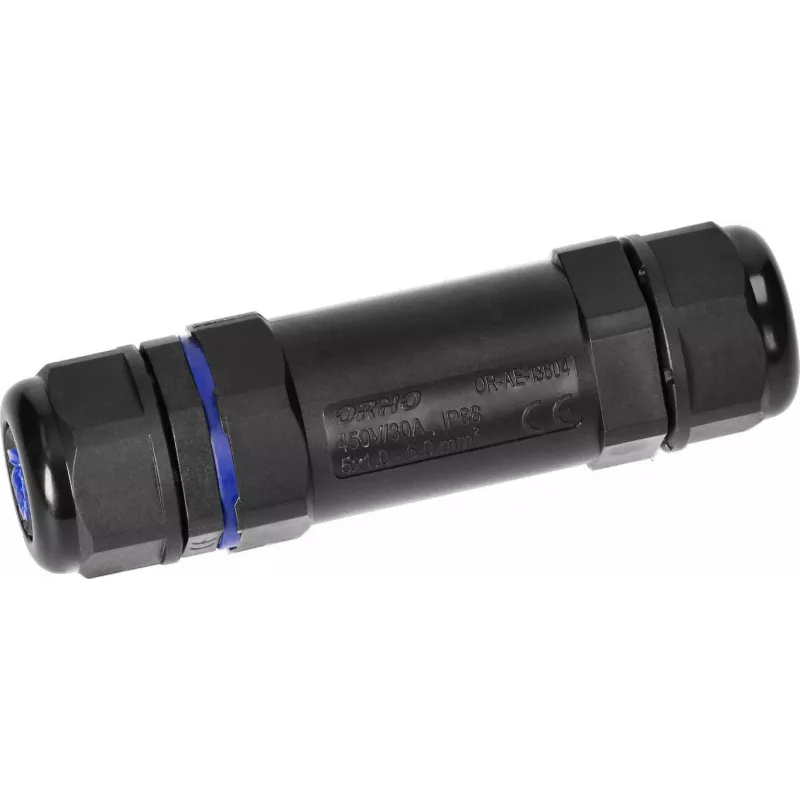

ORNO rovný káblový spoj M25 IP68 5x6mm² 450V/30A OR-AE-13604

The ORNO OR-AE-13604 is a high-quality straight cable connector designed for reliable and secure electrical connections in demanding environments. With an IP68 rating, it is fully protected against dust and prolonged immersion in water, making it ideal for outdoor, underground, and harsh industrial applications. This 5-pole connector accommodates conductors up to 6 mm² and supports a rated voltage of 450V and current of 30A, ensuring robust performance for multi-core cable systems.

Advantages

Engineered for durability and ease of installation, the OR-AE-13604 features a screw terminal connection method for secure and maintenance-free wiring. The high-grade thermoplastic housing offers excellent UV resistance and operates reliably across a wide temperature range from -40°C to +100°C. Its straight design and M25 cable gland thread size provide compatibility with standard cable entries, simplifying integration into existing setups.

Suitable for

• Outdoor power distribution and lighting systems
• Underground cable joints and connections
• Industrial machinery and control panels
• Renewable energy installations (solar, wind)
• Infrastructure projects requiring waterproof connections

Key specifications

• Product Type: Cable Connector / Cable Joint
• Connector Style: Straight
• Ingress Protection: IP68
• Number of Poles: 5
• Max. Conductor Cross-Section: 6 mm²
• Rated Voltage: 450 V
• Rated Current: 30 A
• Cable Gland Thread: M25
• Connection Method: Screw Terminal
• Housing Material: High-grade Thermoplastic
• Operating Temperature: -40°C to +100°C
• UV Resistant: Yes

Recommendations

For optimal performance, ensure cables are properly stripped and inserted fully into the terminals before tightening screws. Use appropriate cable glands for sealing. This connector is suitable for permanent installations where a waterproof and durable joint is required.
