Panel pozície pre disk 2,5 palca Akasa AK-IEN-02 čierny

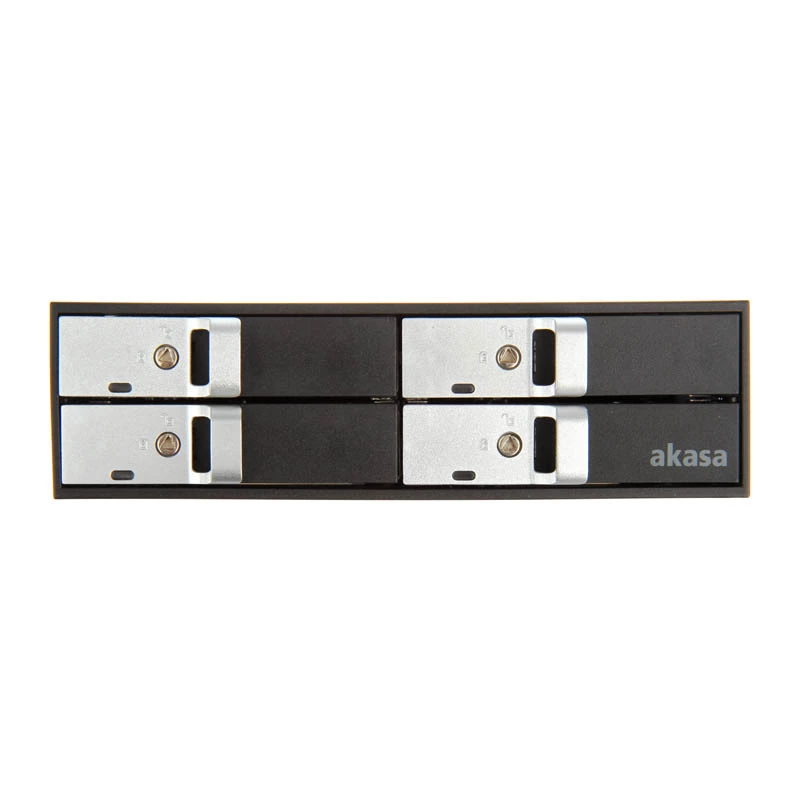

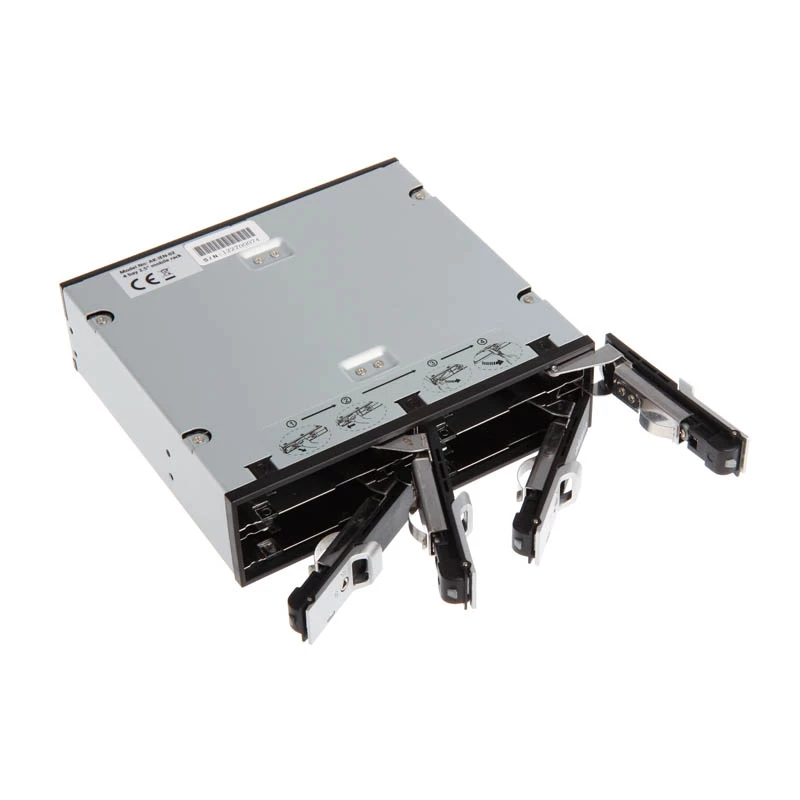

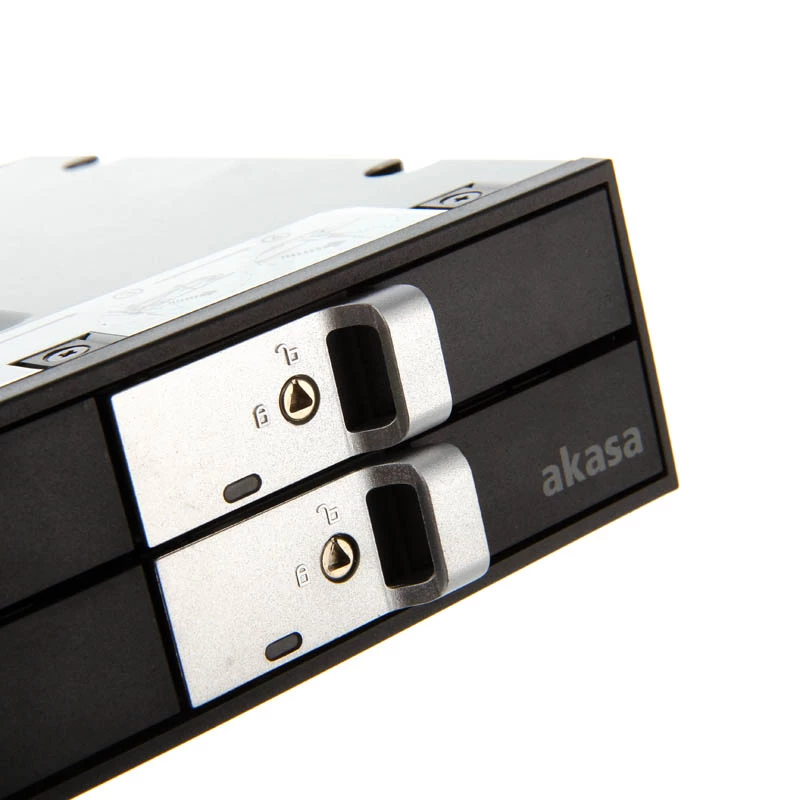

The Akasa AK-IEN-02 Drive Bay Panel is a 4-bay solution that lets you mount four 2.5" SSDs or HDDs into a single 5.25" PC drive bay. Constructed with a durable stainless steel frame and finished in black, the panel supports drives up to 12.5mm in height and includes a security lock with key for protected access. Its compact dimensions (148mm × 142mm × 42mm) make it compatible with standard 5.25" bays while providing tool-free access to drives.

Advantages

The unit accepts four 2.5" SATA SSD/HDD devices and consolidates them into one 5.25" bay, saving chassis space. Its stainless steel structure ensures rigidity and long service life, while the included security lock prevents unauthorized removal of drives. The design enables tool-free insertion and removal of drives, simplifying maintenance and upgrades.

Suitable for

• Servers or workstations requiring multiple 2.5" drives in limited bay space
• Home or office PCs where consolidating storage bays is desired
• Systems needing physical drive security and easy drive swaps

Key specifications

• Model: Akasa AK-IEN-02
• Supported drives: 4 × 2.5" SSD/HDD up to 12.5 mm height
• Fits into: 5.25" PC drive bay
• Material: stainless steel frame
• Dimensions: 148 mm (W) × 142 mm (D) × 42 mm (H)
• Security: lock with key included

How to use

Install the panel into a free 5.25" bay of your PC or server following your chassis instructions. Slide each 2.5" drive into one of the four trays until it seats securely, then secure as required by the tool-free mechanism. Connect SATA data and power cables from the motherboard and power supply to each drive. Use the lock to secure the front panel when drives should be protected from removal.

Recommendations

For reliable operation, use SATA drives compatible with your system and ensure proper airflow within the chassis to prevent drive overheating. Verify drive seating and cable connections after installation and keep the key in a safe place to maintain physical security.
