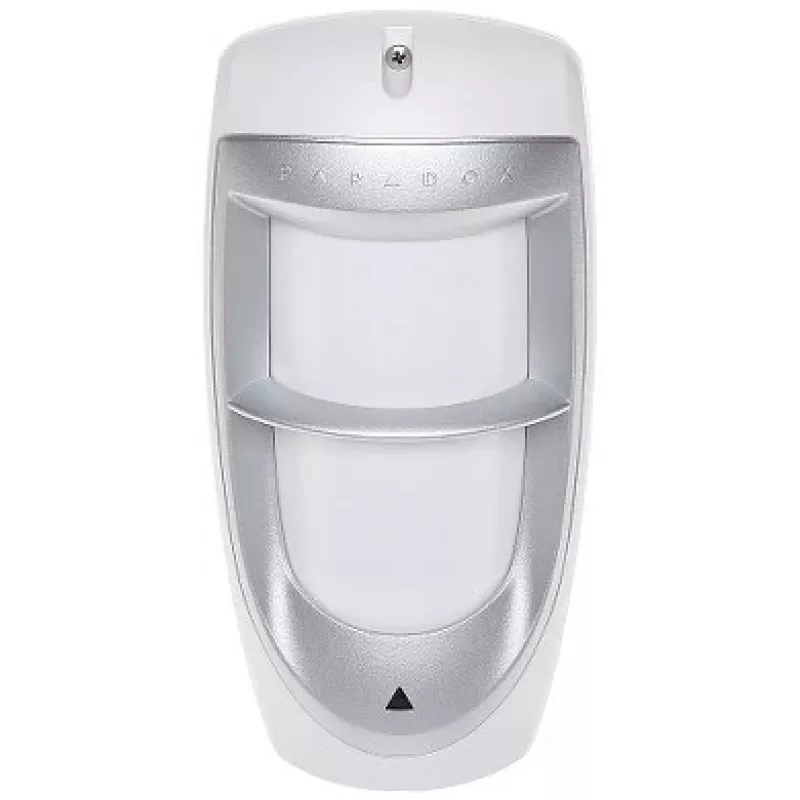

Paradox DG85-D6B vonkajší PIR pohybový senzor

The Paradox DG85-D6B is a high-performance outdoor digital PIR motion sensor designed for reliable intrusion detection in residential and commercial security systems. Featuring patented digital motion detection and dual optical filtering, it delivers exceptional false alarm immunity while maintaining a wide detection range of 11m x 11m (35ft x 35ft) with a 90° angle. The sensor is pet immune up to 40 kg (90 lb) and operates in extreme temperatures from -35°C to +50°C, making it suitable for harsh outdoor environments.

Advantages

Patented digital signal processing ensures accurate detection while minimizing false alarms from environmental disturbances. The dual optical filtering system enhances sensitivity to human-sized targets and reduces interference from small animals or weather conditions. With IP54 rating and UV-resistant polycarbonate housing, the DG85-D6B withstands rain, dust, and sunlight exposure. Dual tamper switches (cover and wall) provide comprehensive anti-tamper protection.

Suitable for

• Outdoor perimeter protection for homes and businesses
• Areas requiring pet immunity up to 40 kg
• Installations in extreme climates (-35°C to +50°C)
• Integration with Paradox alarm panels and other security systems

Key specifications

• Sensor Type: Digital Passive Infrared (PIR)
• Detection Range: 11m x 11m (35ft x 35ft)
• Detection Angle: 90°
• Pet Immunity: Up to 40 kg (90 lb)
• Operating Voltage: 9-16 VDC
• Current Consumption: 15 mA (max)
• Alarm Output: N.C. Relay, 28VDC/0.15A
• Tamper Protection: Dual Tamper Switch (Cover and Wall)
• Operating Temperature: -35°C to +50°C (-31°F to +122°F)
• Environmental Protection: IP54 Rated
• Installation Height: 2.1m - 2.7m (7ft - 9ft)
• Housing Material: UV-resistant Polycarbonate
• Mounting Type: Wall-mount (bracket included)

Recommendations

For optimal performance, install the sensor at the recommended height of 2.1-2.7 meters and avoid direct exposure to heat sources or reflective surfaces. Pair with a compatible Paradox control panel for full system integration.
