Pasívny infračervený senzor Brennenstuhl PIR 240

The Brennenstuhl PIR 240 is a wired passive infrared sensor designed for indoor and outdoor lighting control. With an IP44 rating and an anthracite housing, it detects movement within a 240° angle and up to 12 m range and automatically switches connected lamps on or off when motion is detected. The sensor operates at 230 V and supports incandescent, halogen, energy-saving and LED lamps with specified maximum switching capacities.

Advantages

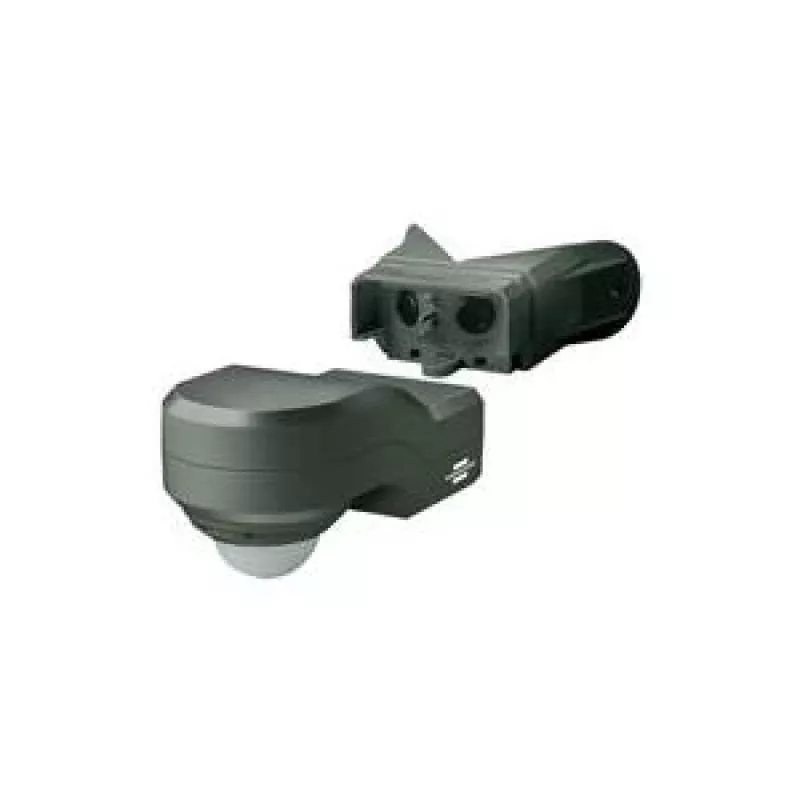

The PIR 240 provides wide-angle detection and a long reach, combined with adjustable sensitivity settings for response brightness and time. It supports several lamp types and offers separate maximum switching capacities for bulbs, energy-saving lamps and LEDs. The housing is adjustable both vertically and horizontally and includes a corner attachment for versatile installation positions. The IP44 rating makes it suitable for sheltered outdoor use as well as indoor mounting.

Suitable for

• Security and entrance lighting for homes and small businesses
• Porches, garages and carports
• Corridors and stairwells
• Garden paths and sheltered outdoor areas

Key specifications

• Detection angle: 240°
• Maximum range: 12 m
• Duty cycle (time): adjustable from 10 seconds to 4 minutes (10–240 s)
• Response brightness: adjustable from 10 to 150 lux
• Switching capacity: max. 1000 W (incandescent/halogen bulbs)
• Switching capacity: max. 300 W (energy-saving lamp)
• Switching capacity: max. 100 W (LED)
• Protection class: IP44 (indoor and sheltered outdoor use)
• Voltage: 230 V
• Color: Anthracite

How to use

Mount the wired PIR 240 sensor on a stable surface using the included corner attachment or by direct wall fixing. Adjust the horizontal and vertical angle so the detection zone covers the desired area. Connect the unit to a 230 V supply and to the lighting circuit following local electrical regulations or have a qualified electrician perform the installation. Set the response brightness and duty cycle to required values to avoid unwanted triggers during daylight or brief movements.

Recommendations

For reliable detection and safe operation, install the sensor at a height and angle that minimises detection of roads or public walkways to reduce false triggers. Do not expose the unit to direct heavy rain despite IP44 rating, and observe the specified maximum lamp wattages for each lamp type.
