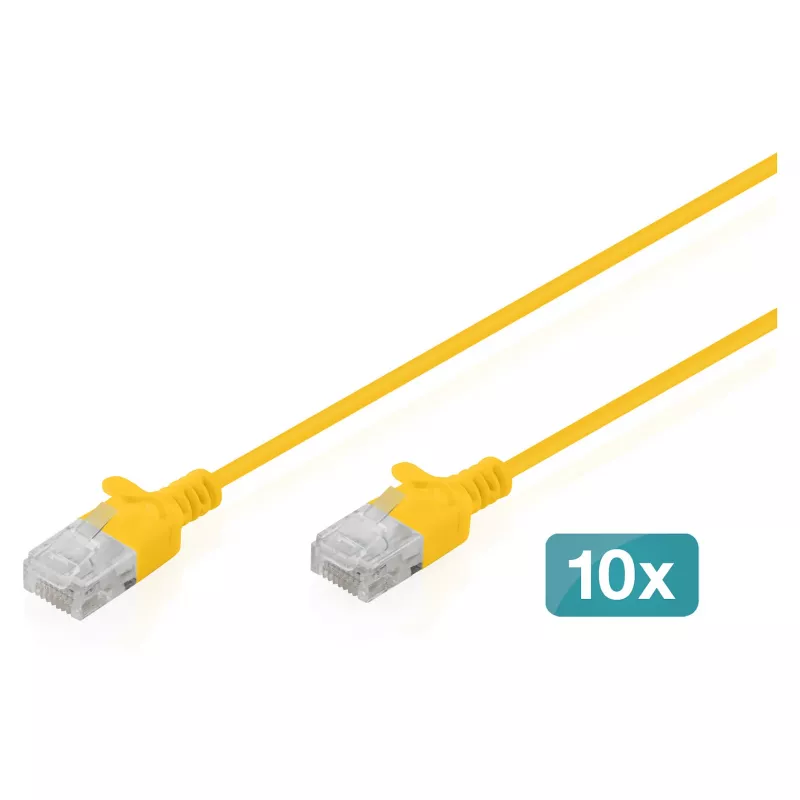

Patch kábel CAT6 U-UTP tenký, DIGITUS DK-1618-005S-Y-10, 0,5 m, žltý, balenie 10 ks

Pack of 10 DIGITUS CAT6 U-UTP slim patch cables, model DK-1618-005S-Y-10, each 0.5 m long in yellow. These unshielded twisted pair cables deliver CAT6 performance up to 250 MHz and support Gigabit Ethernet applications. The slim 2.7 mm outer diameter and flexible LSZH jacket reduce bulk in patch panels and dense rack environments while maintaining PoE and PoE+ compatibility via stranded pure copper conductors and RJ45 terminations with molded strain relief.

Advantages

The slim construction with a total diameter of approximately 2.7 mm and flexible jacket enables tidy, space-saving cable management in tight installations. Stranded AWG 32/7 copper conductors combine flexibility with reliable signal transmission suitable for structured cabling. Compliance with CAT6 standards (ISO/IEC 11801 and EN 50173) ensures predictable performance for 10/100/1000BASE-T networks, while molded anti-kink sleeves and locking lever protection reduce the risk of connector damage during frequent mating cycles.

Suitable for

• Office patch panels and horizontal cabling in high-density racks
• Data center top-of-rack and patching applications with limited space
• Home networks and multimedia connections requiring short jumper lengths
• PoE and PoE+ powered devices such as access points, IP phones and cameras

Key specifications

• Cable category: CAT6 (U-UTP)
• Length: 0.5 m per cable
• Quantity: pack of 10
• Color: yellow
• Conductor type: stranded copper (AWG 32/7)
• Insulation: HD-PE (high-density polyethylene)
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: approx. 2.7 mm ± 0.15 mm
• Frequency: up to 250 MHz
• Supported speed: up to 1 Gbit/s (1000BASE-T)
• Bending radius: 15 x outer diameter
• Operating temperature: -20 °C to +60 °C
• Flame retardancy and smoke: IEC 60332-1, IEC 61034
• Typical applications: 10BASE-T, 100BASE-TX, 1000BASE-T
• Service life: approx. 750 mating cycles

How to use

Connect each end of the patch cable to matching RJ45 ports on switches, patch panels, routers or network devices. Use the molded anti-kink sleeve to guide the cable through tight spaces and avoid sharp bends beyond the recommended bending radius. For optimal performance, keep cable lengths short for patching runs and ensure proper color-coded wiring alignment when replacing or extending existing EIA/TIA 568B installations.

Recommendations

Install these slim patch cables in high-density panels or between adjacent ports to minimize clutter. Avoid tight knots and bend radii smaller than 15 times the cable diameter. For permanent horizontal runs or outdoor exposure, select a purpose-built solid-core or weatherproof cable rather than stranded slim patch cords.
