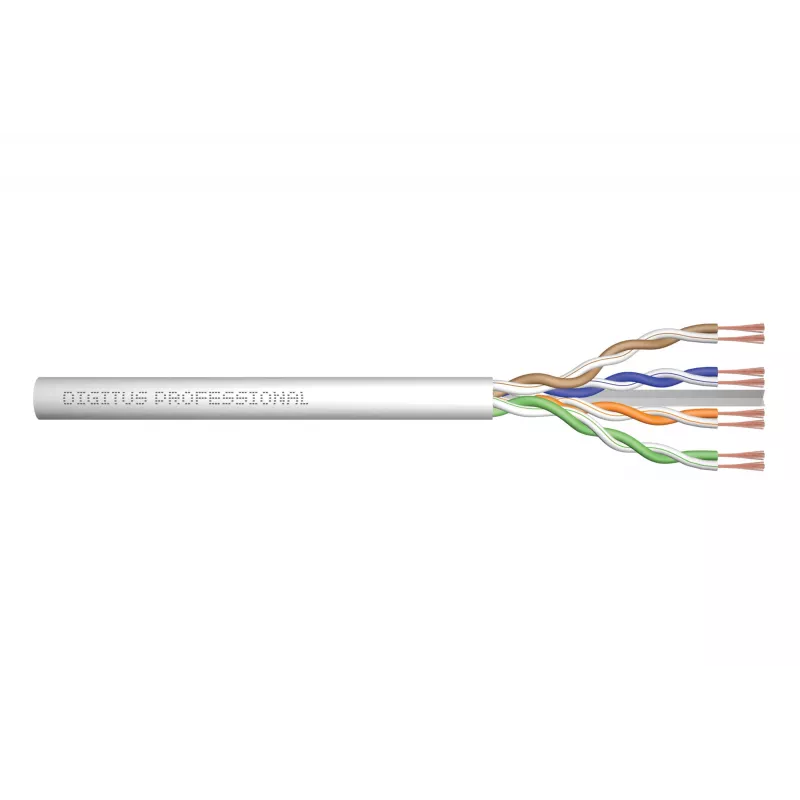

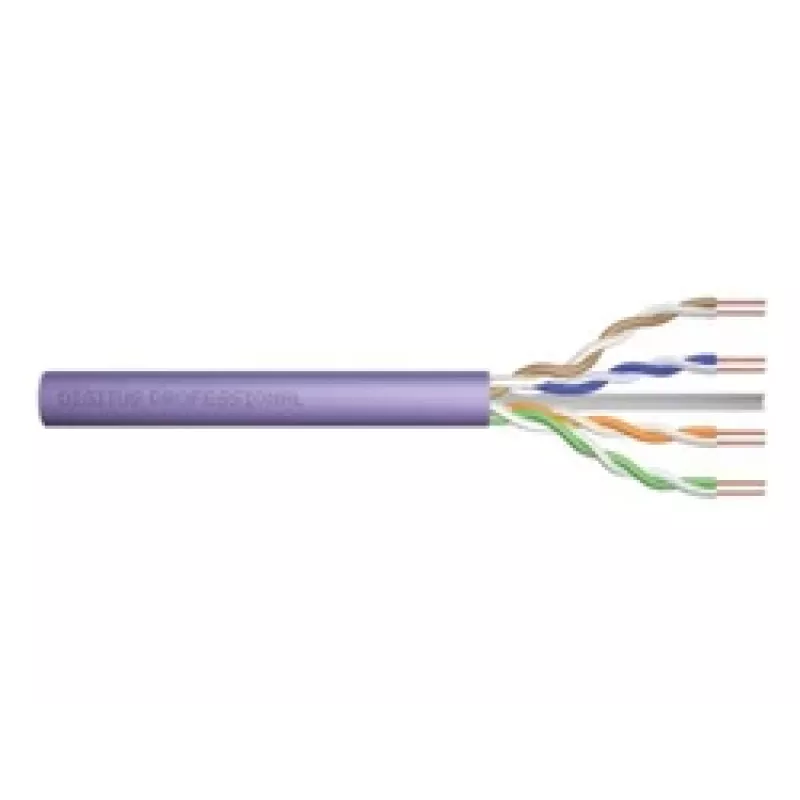

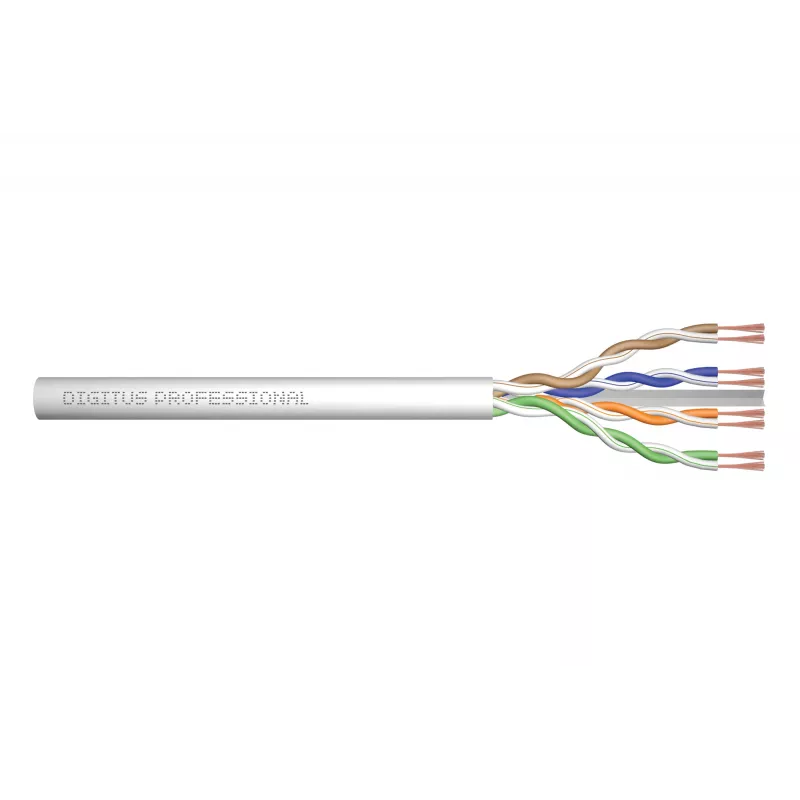

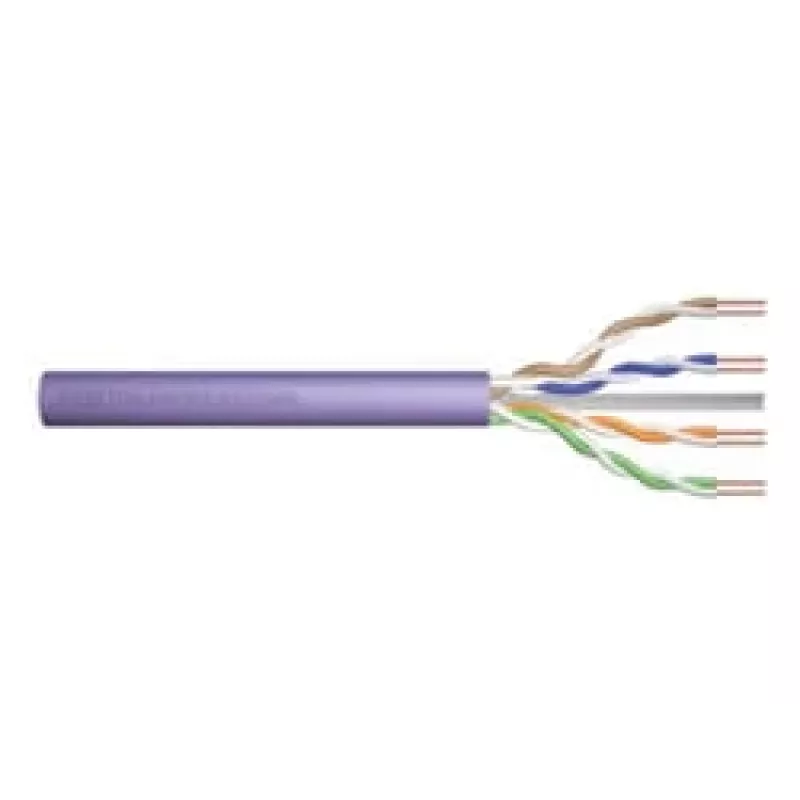

Patch kábel Digitus CAT 6 U/UTP DK-1613-P-305

Future-oriented cable complying with current network standards and designed for high-end installations. The raw patch cord is suitable for direct assembly of RJ45 connectors to produce patch cords and supports Class E installations up to 250 MHz. Construction uses copper conductors and the cable is PoE+ ready. Manufactured and tested according to ISO/IEC 11801 and DIN EN 50173, it ensures that the installed cabling system meets ISO and EN channel specification requirements for reliable performance.

Advantages

The cable supports direct RJ45 connector assembly, enabling on-site production of patch cords. It is certified for class E applications up to 250 MHz and meets ANSI/TIA-568-C, ISO/IEC 11801 2nd Edition and EN 50173-1 standards. Copper conductor construction and PoE+ readiness provide compatibility with powered devices and stable signal transmission. Manufacture and testing to ISO/IEC 11801 and DIN EN 50173 ensure conformity with channel specifications.

Key specifications

• Standards: ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1; EN 50288-6-1
• Class: E (250 MHz)
• Conductor material: Copper (Cu)
• PoE support: PoE+
• Application: Raw patch cords for direct RJ45 connector assembly
• Manufactured and tested to: ISO/IEC 11801; DIN EN 50173

How to use

Strip the cable jacket and prepare the twisted pairs following the chosen RJ45 termination scheme, insert and crimp an appropriate RJ45 connector to produce a patch cord. Use standard cable preparation and crimping tools and follow the connector manufacturer’s instructions. After assembly, test the finished patch cord to verify continuity and performance according to ISO/EN channel test criteria.

Recommendations

For reliable network performance, assemble and crimp connectors in a clean environment using certified RJ45 plugs and verify each finished patch cord with a cable tester that measures parameters to class E (250 MHz) specifications.
