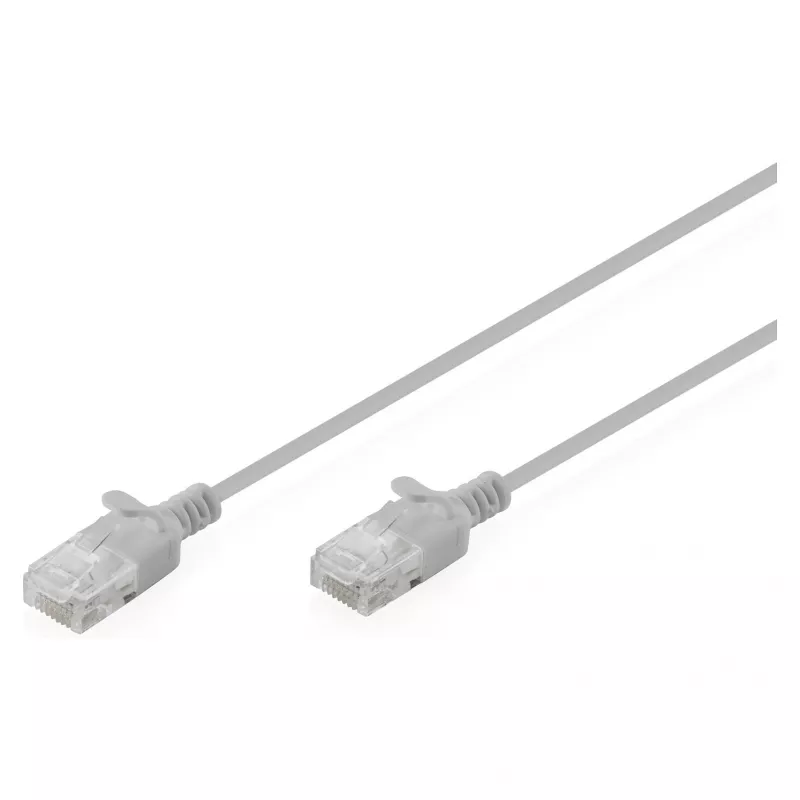

Patch kábel DIGITUS CAT6 U-UTP tenký, 0,5 m, sivý

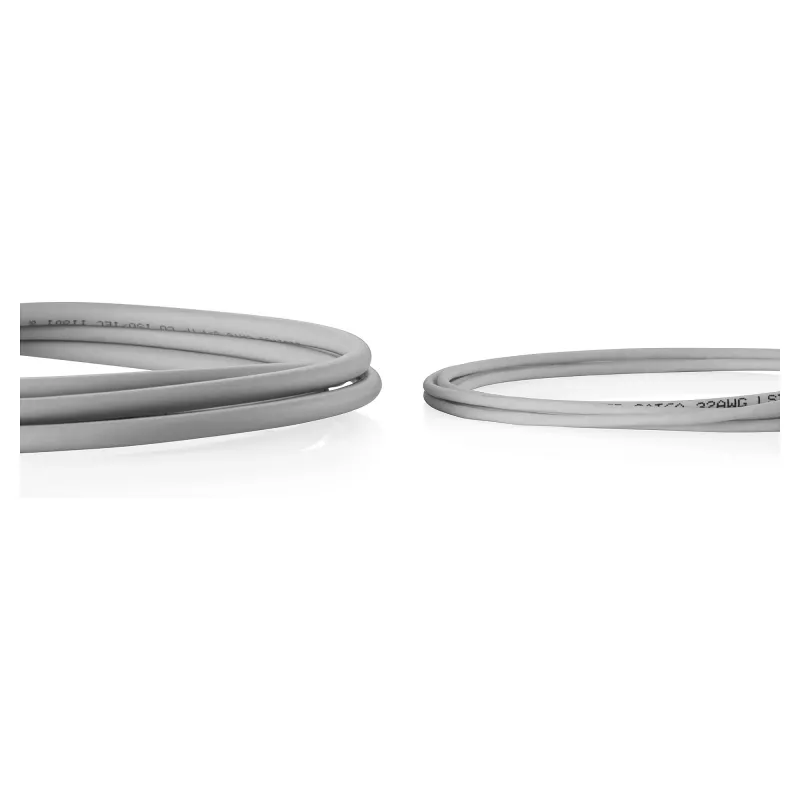

DIGITUS CAT6 U-UTP Slim patch cable, 0.5 m in gray is an unshielded twisted-pair Ethernet lead designed for short network links and dense cabling environments. Built to CAT6 performance, the slim cable connects network devices such as switches, patch panels and desktop equipment while saving space behind racks and in cable ducts. The cable uses stranded copper conductors and a flexible jacket with molded strain relief and locking lever protection to reduce the risk of connector damage during installation.

Advantages

The slim outer diameter of approximately 2.7 mm and a flexible LSZH jacket allow neat routing in confined spaces and high-density panels. The cable supports transmission frequencies up to 250 MHz and data rates up to 1 Gbit/s, and its pure copper stranded conductors make it suitable for PoE and PoE+ applications. Manufactured to recognized standards for CAT6 cabling, the lead provides consistent electrical characteristics and mechanical durability for repeated mating cycles.

Suitable for

• Short patch connections between switches, routers and network sockets

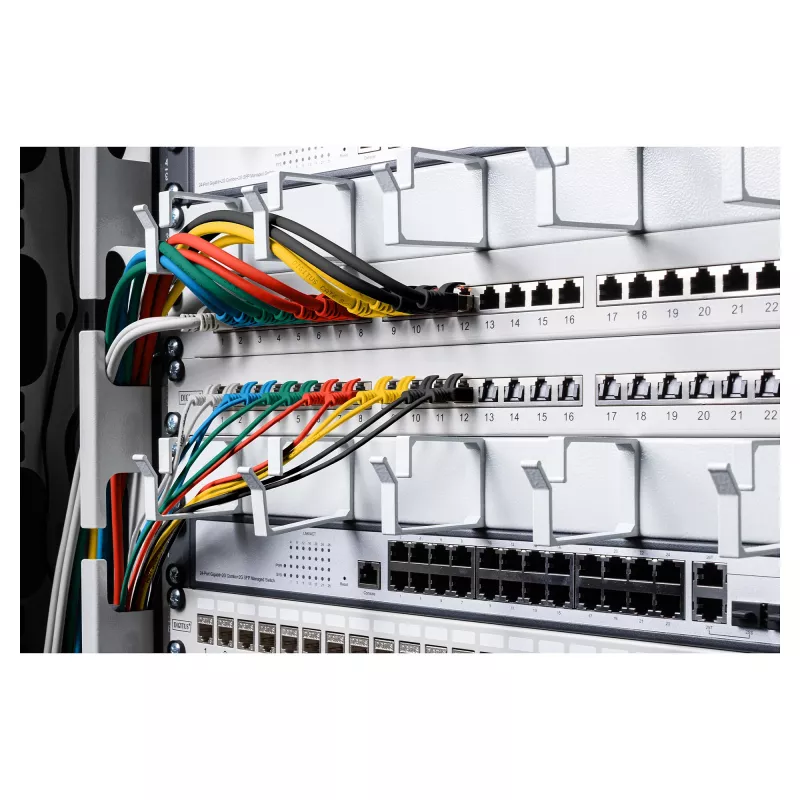

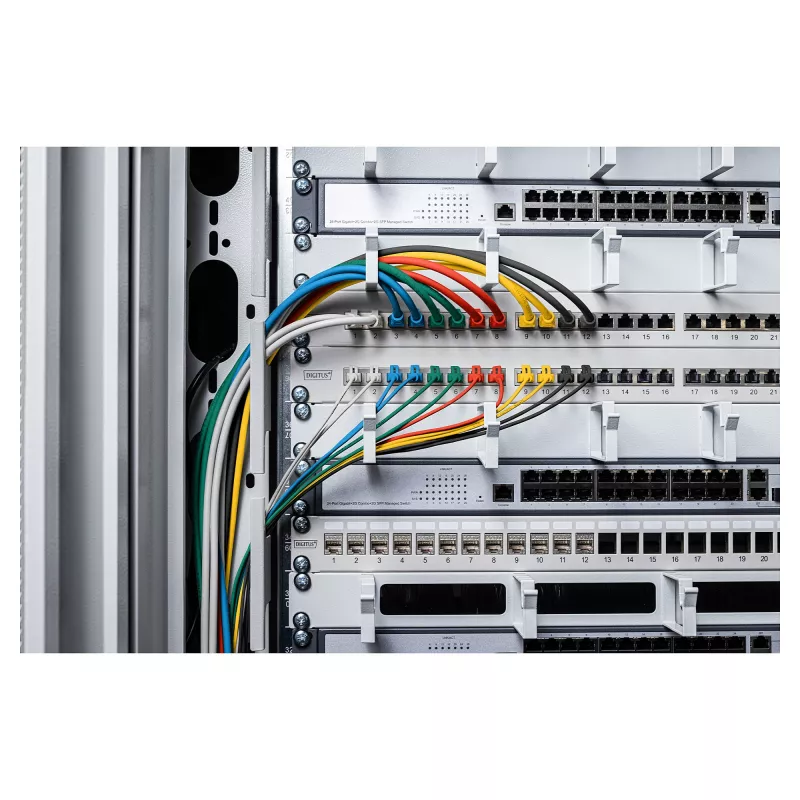

• High-density patch panels and server racks where space is limited
• Desktop and office workstations requiring tidy cabling
• Home networks and multimedia device connections

Key specifications

• Cable category: CAT6, U-UTP (unshielded twisted pair)
• Length: 0.5 m
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Conductor type: stranded bare copper AWG 32/7
• Insulation material: HD-PE (high-density polyethylene)
• Transmission frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)
• Bending radius: 15× outer diameter

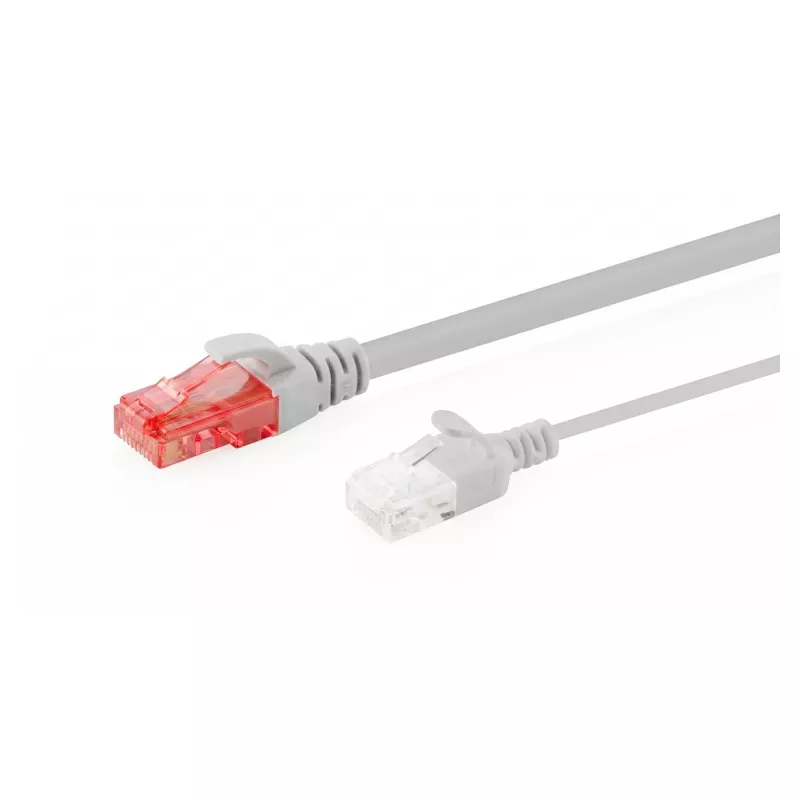

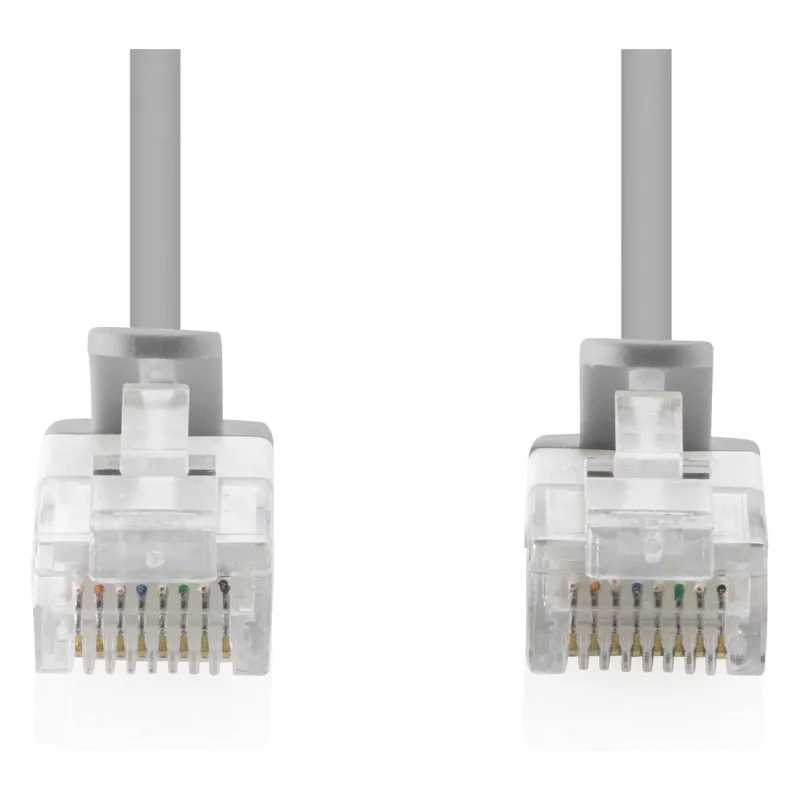

• Plug type: RJ45 with molded anti-kink sleeve and locking lever protection
• Cabling standard wiring: EIA/TIA 568B, pin assignment 1:1
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke tests: IEC 60332-1 and IEC 61034
• Dielectric strength: 500 V AC for 1 minute without breakdown
• Durability: approx. 750 mating cycles

How to use

Insert the RJ45 plug into the corresponding network port until the locking tab engages. Route the slim cable along cable management channels or behind equipment to minimize clutter; avoid sharp bends smaller than the specified bending radius. For PoE applications, ensure connected devices and power sources are compatible with PoE or PoE+ standards. When disconnecting, press the locking lever and pull the connector by the molded boot to prevent strain on the cable.

Recommendations

For best performance, use the DIGITUS CAT6 U-UTP Slim cable for short links up to typical horizontal patch lengths and avoid running the cable in parallel with high-voltage power lines. Maintain the minimum bending radius and limit connector mating to the specified service life to preserve signal quality and mechanical integrity.
