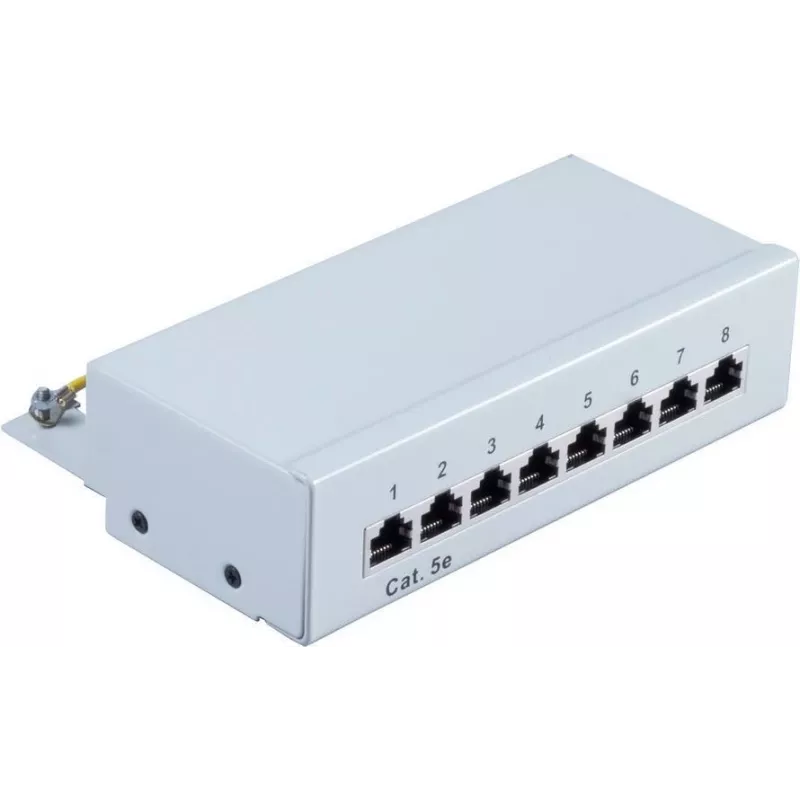

Patch panel 1U ShiverPeaks BS75058

The ShiverPeaks BS75058 is a 1U patch panel designed for structured network cabling in rack-mounted environments. Equipped with RJ-45 ports and compatible with Cat5e cabling, it provides a compact, space-saving solution for terminating and routing Ethernet connections in data centres, server rooms and office network closets. The grey finish integrates with standard rack equipment and the 1U form factor fits typical 19-inch racks.

Advantages

This patch panel offers straightforward consolidation of multiple Ethernet lines into a single rack-mounted unit, simplifying cable management and reducing clutter. Its RJ-45 connectors ensure reliable signal transmission for Cat5e-rated networks, while the 1U size conserves rack space and allows for dense deployments. The panel’s metal construction provides mechanical stability for repeated plug/unplug cycles and the neutral grey colour coordinates with common server-room equipment.

Suitable for

• Organising horizontal Ethernet runs in office LANs
• Terminating Cat5e cable runs in server rooms and data centres
• Consolidating network connections in telecom or comms cabinets
• Mounting in 19-inch racks where 1U of space is allocated

Key specifications

• Form factor: 1U rack-mount panel compatible with 19-inch racks
• Connector type: RJ-45 ports for Ethernet termination
• Cable compatibility: Cat5e Ethernet cabling
• Colour: Grey finish suitable for standard rack environments
• Construction: Metal housing designed for repeated connector use

How to use

Mount the patch panel into an available 1U space in a 19-inch rack using standard rack screws. Terminate individual Cat5e cable pairs to the rear IDC or punch-down points according to T568A or T568B wiring standards, and label each port for easy identification. Connect network devices or switches to the front RJ-45 ports using patch cords, and verify link status and network performance after installation.

Recommendations

Place the patch panel near network switches to minimise patch-cord length, maintain proper cable bend radius during termination, and use consistent labelling for faster troubleshooting. For optimal performance on Cat5e installations, ensure proper termination, pair integrity and testing with a cable tester after installation.
