Patch panel 1U ShiverPeaks BS75076

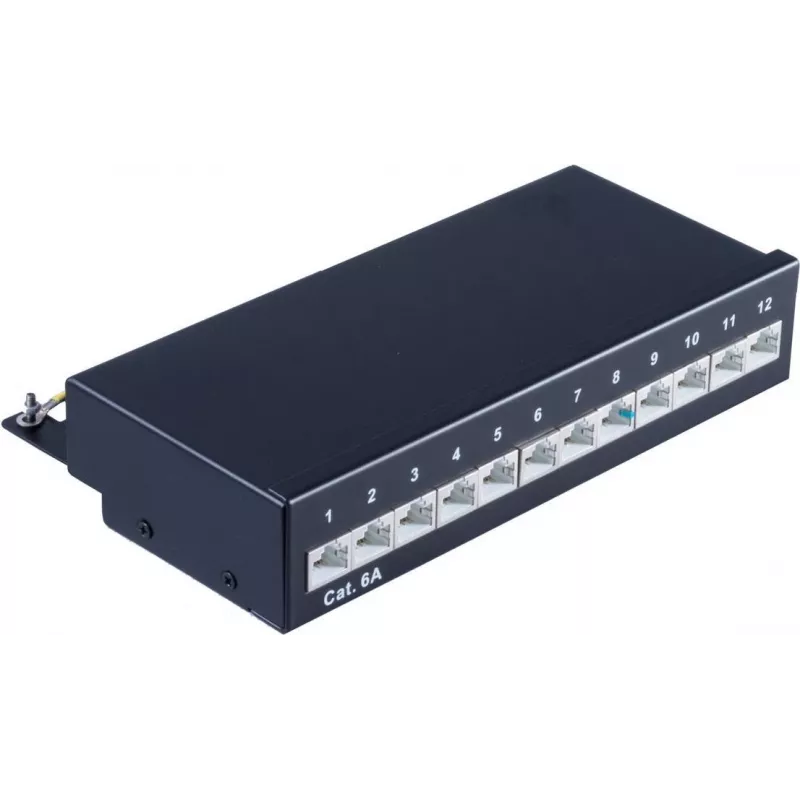

The ShiverPeaks BS75076 is a 1U patch panel engineered for structured network installations. Designed to accept RJ-45 connectors and compatible with Cat6a cabling, this metal panel offers a compact footprint with a black finish and dimensions of 212 mm (width) x 45 mm (height) x 130 mm (depth). It mounts in a standard 19-inch rack and provides a professional solution for consolidating horizontal cabling and maintaining an orderly rack layout.

Advantages

This patch panel is made of durable metal to withstand routine rack use and provides reliable mechanical support for RJ-45 terminations. Its compatibility with Cat6a cable ensures it can support higher-speed Ethernet links where required. The slim 1U profile and standard mounting dimensions make it easy to integrate into existing rack systems, while the black finish helps maintain a uniform appearance within equipment cabinets.

Suitable for

• Structured cabling in server rooms and network closets
• Office network patching and horizontal distribution
• Small to medium enterprise LAN installations
• Telecommunications cabinets and equipment racks

Key specifications

• Form factor: 1U rack-mountable patch panel
• Connector type: RJ-45
• Cable compatibility: Cat6a
• Material: Metal construction
• Finish: Black
• Dimensions (W x H x D): 212 mm × 45 mm × 130 mm
• Rack compatibility: Standard 19-inch rack

How to use

Mount the panel into a standard 19-inch rack using the provided mounting points or appropriate rack screws. Terminate individual Cat6a cables to the RJ-45 jacks following standard termination practices and verify connections with a cable tester. Route patch cords to network switches or other active equipment, keeping cable runs neat and secured with cable management accessories as needed. Ensure proper labeling of ports to simplify maintenance and troubleshooting.

Recommendations

For reliable performance, use Cat6a-rated patch cords and maintain proper bend radius when routing cables to and from the panel. Periodically inspect terminations and mounted hardware for secure connections and signs of wear. Keep the panel in a ventilated rack environment to avoid excessive heat buildup near active equipment.
