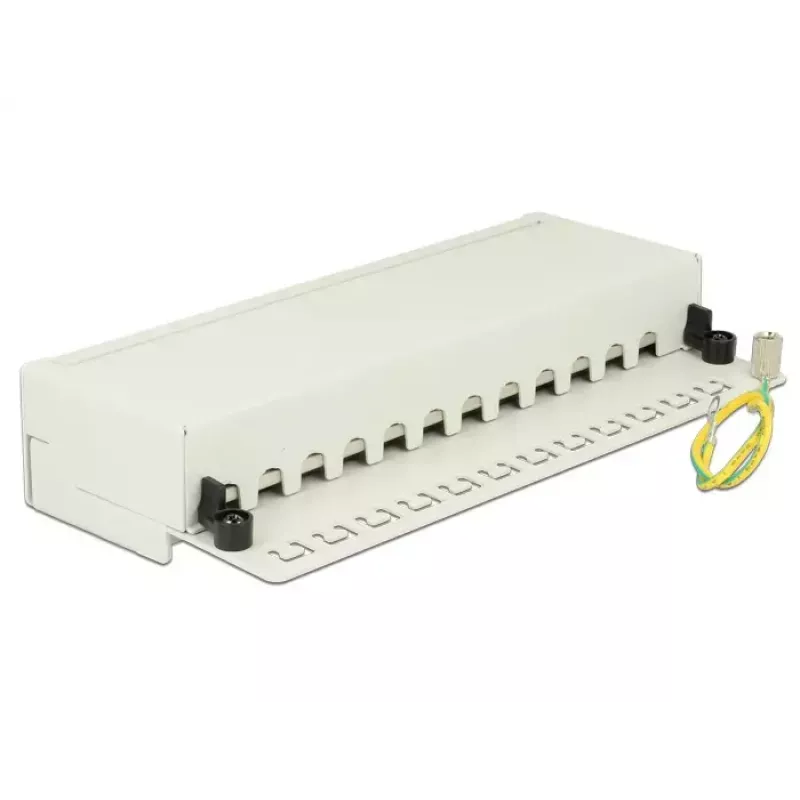

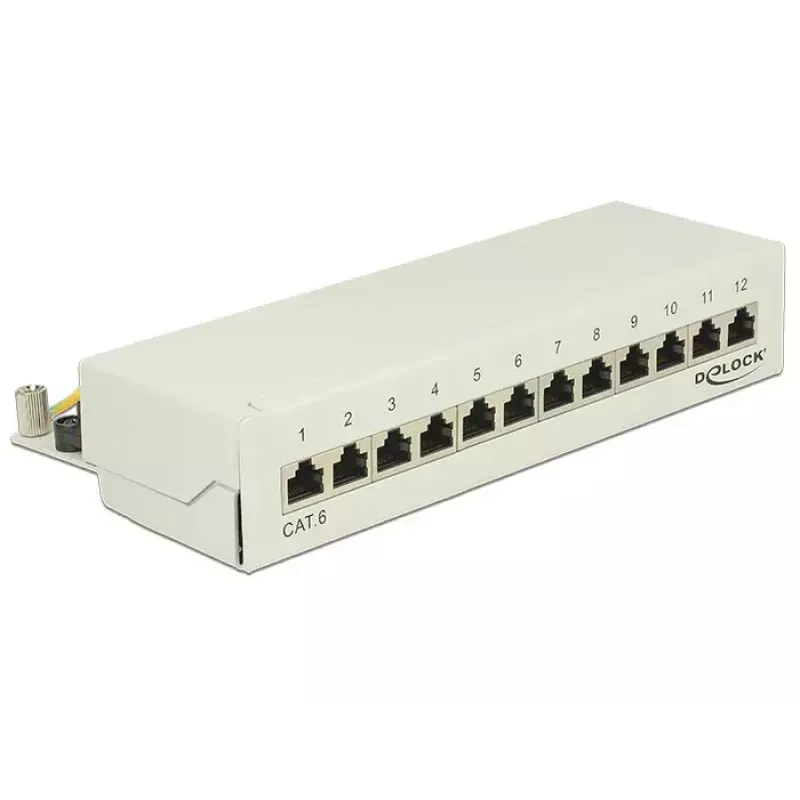

Patch panel DeLOCK 87292

The DeLOCK 87292 patch panel is a compact metal unit with RJ-45 connections, designed for wall mounting to organize and manage network cabling. It measures 218 mm (W) × 44.2 mm (H) × 108 mm (D) and features LSA blocks that accept up to 12 network cables terminated with a punch-down tool. The unit is finished in grey and intended for tidy installations in offices, server rooms or other networked environments.

Advantages

The metal construction provides durability and stable mounting. Wall-mount design saves space and allows flexible placement. LSA blocks allow secure and reliable termination of up to 12 cables using a punch-down tool. Compact dimensions make it suitable for installations where rack space is limited.

Suitable for

• Small office and home networks
• Server rooms and network closets with limited space
• Structured cabling installations requiring wall-mounted patching

Key specifications

• Brand: DELOCK
• Model / MPN: 87292
• EAN: 4043619872923
• Connector type: RJ-45 (via LSA blocks)
• Supports: up to 12 network cable terminations
• Material: metal
• Colour: Grey
• Dimensions (W×H×D): 218 × 44.2 × 108 mm

How to use

Mount the patch panel to a suitable wall surface using appropriate screws and anchors for the wall material. Prepare each network cable, insert conductors into the corresponding LSA block positions and terminate them with a punch-down tool according to the cabling scheme in use (e.g., T568A/T568B). After termination, verify connections with a network tester and label ports as required for identification.

Recommendations

Use compatible punch-down tools and follow standard cabling practices (twist preservation, correct pair alignment) to ensure reliable connections. For permanent installations, secure cables with strain relief and verify terminations after installation with a cable tester.
