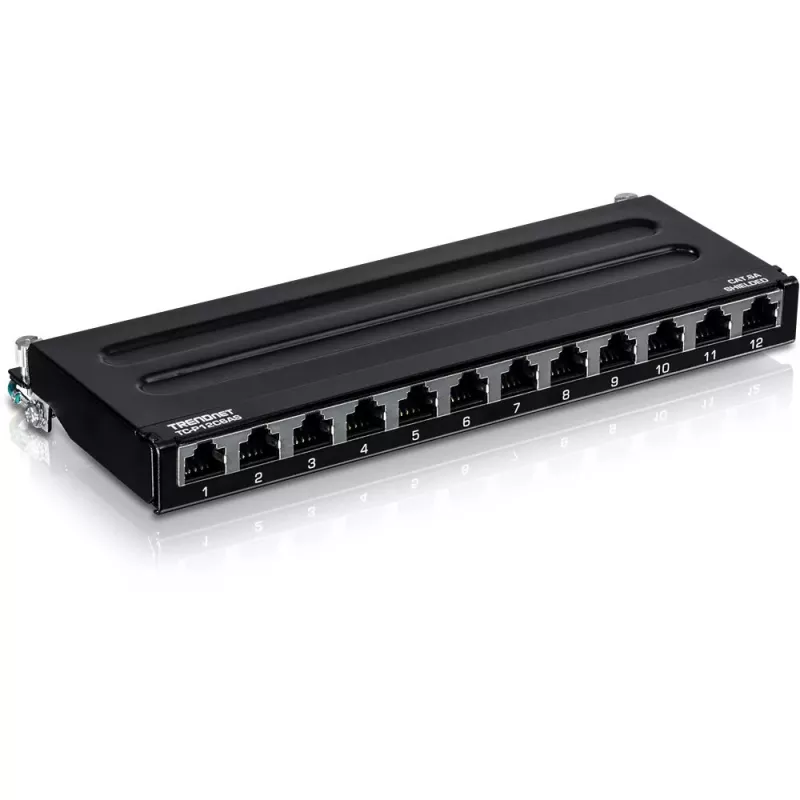

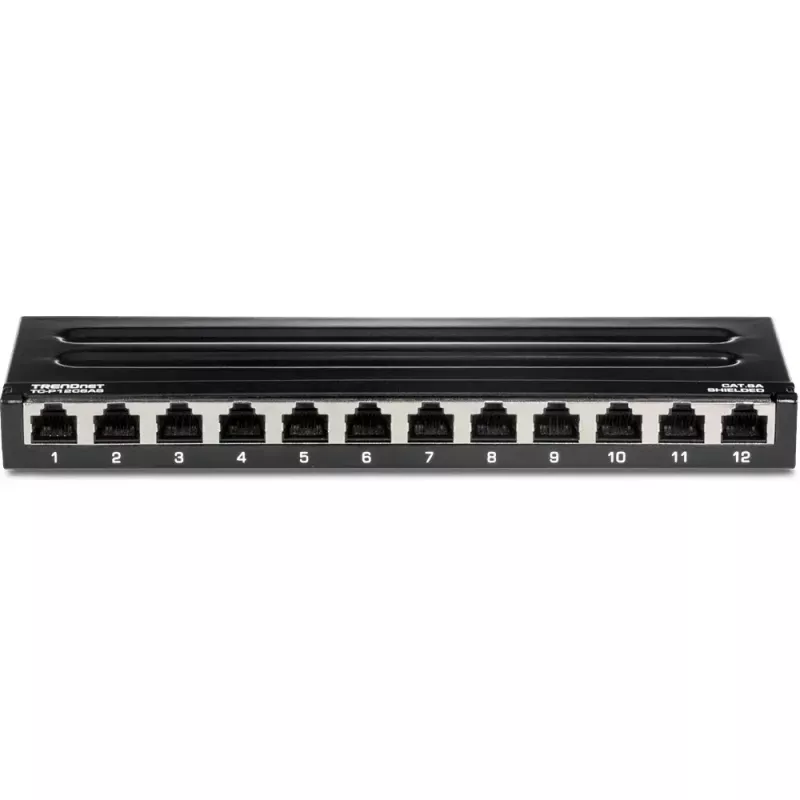

Patch panel Trendnet TC-P12C6AS

The TRENDnet TC-P12C6AS 12-Port Cat6A Shielded Wall Mount Patch Panel is designed for gigabit and 10G Copper Ethernet networks. Compatible with Cat6A shielded cabling, this compact metal patch panel provides organized connectivity with 12 RJ-45 ports and gold-plated contacts to support high-speed data transmission while maintaining signal integrity.

Advantages

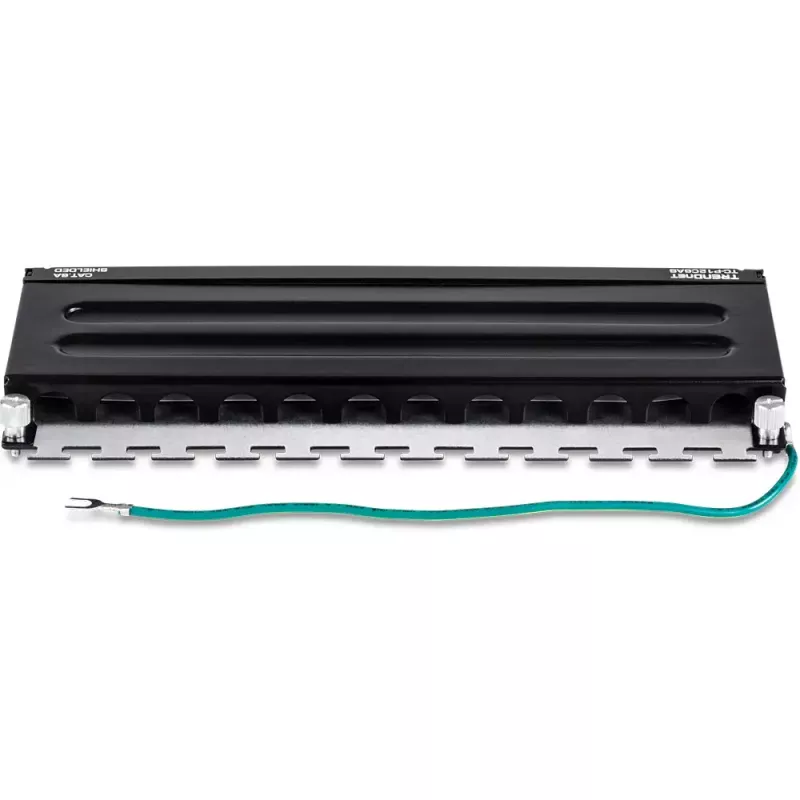

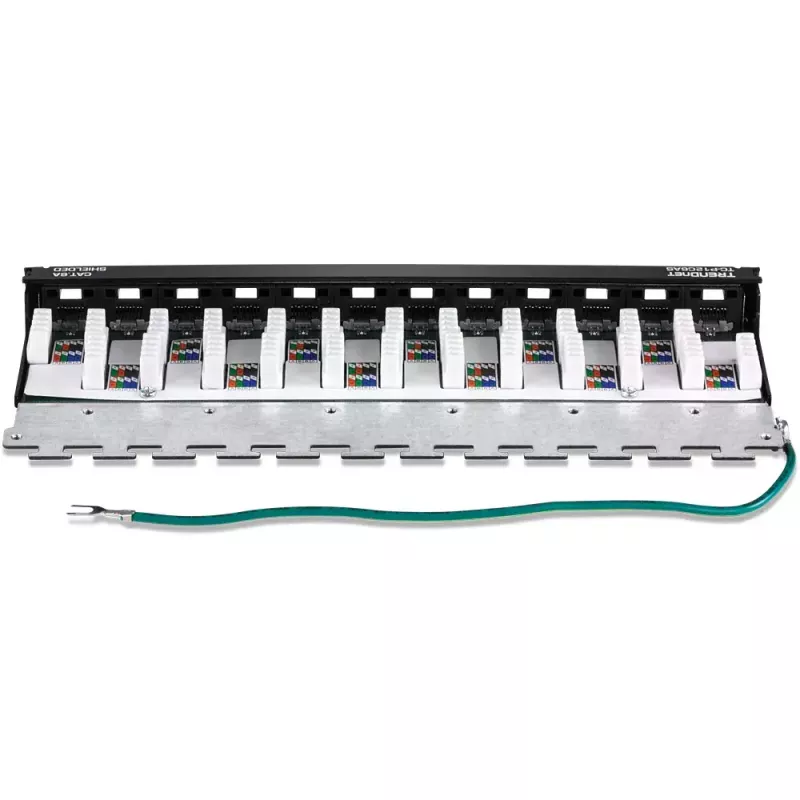

The metal shielded housing reduces EMI/RFI interference for a more stable connection, and Cat6A performance enables up to 10 Gbps over shielded Cat6A cable. An integrated cable management cover plate helps separate and organize cables to reduce clutter and simplify installations. The panel’s compact 0.5U form factor and 12-port layout provide a space-efficient solution for structured network environments.

Suitable for

• Gigabit and 10G Copper Ethernet networks
• Installations using Cat6A shielded cabling
• Wall-mount or compact rack spaces requiring a 12-port patch panel
• Environments needing EMI/RFI noise protection

Key specifications

• Model: TC-P12C6AS
• Ports: 12 RJ-45 with gold-plated contacts
• Performance: Cat6A, up to 10 Gbps over Cat6A cabling
• Housing: Shielded metal, black
• Form factor: Wall mount / 0.5U compact design
• Dimensions: 220 mm (W) x 97 mm (H) x 25 mm (D)
• Weight: 0.506 kg

How to use

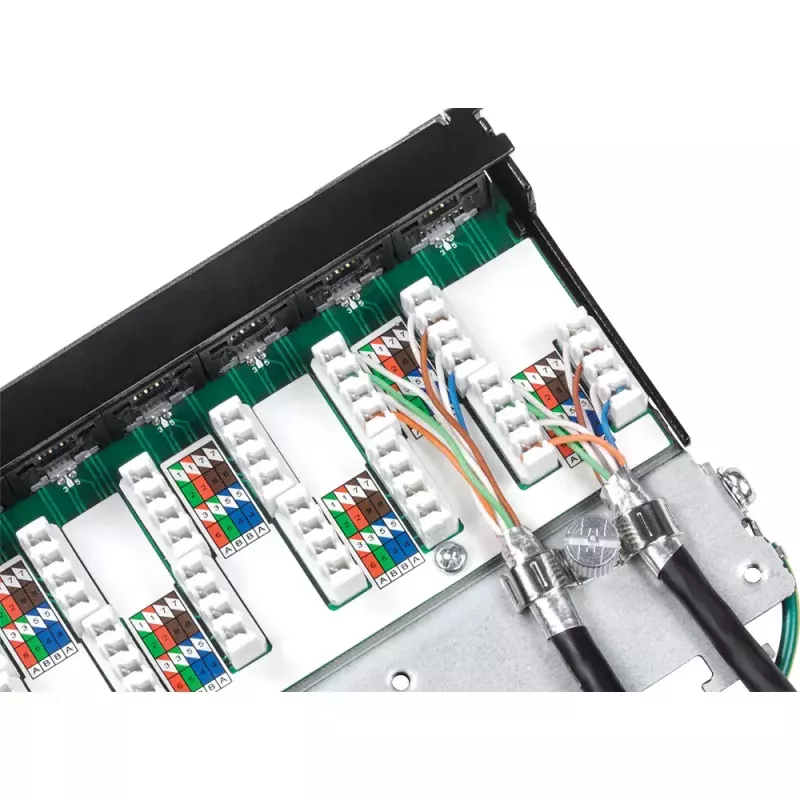

Mount the patch panel to the designated wall or compact rack space, route shielded Cat6A cables to each RJ-45 port and terminate according to the cabling standard in use (T568A or T568B). Ensure the cable shield is properly grounded to maintain shielding effectiveness. Use the integrated cable management cover plate to separate and secure cable runs for a tidy installation.

Recommendations

Use Cat6A shielded cables and grounding practices when deploying the TC-P12C6AS to achieve optimal 10G performance and to minimize EMI/RFI impact. Verify termination standards and test each link after installation to confirm throughput and signal integrity.
