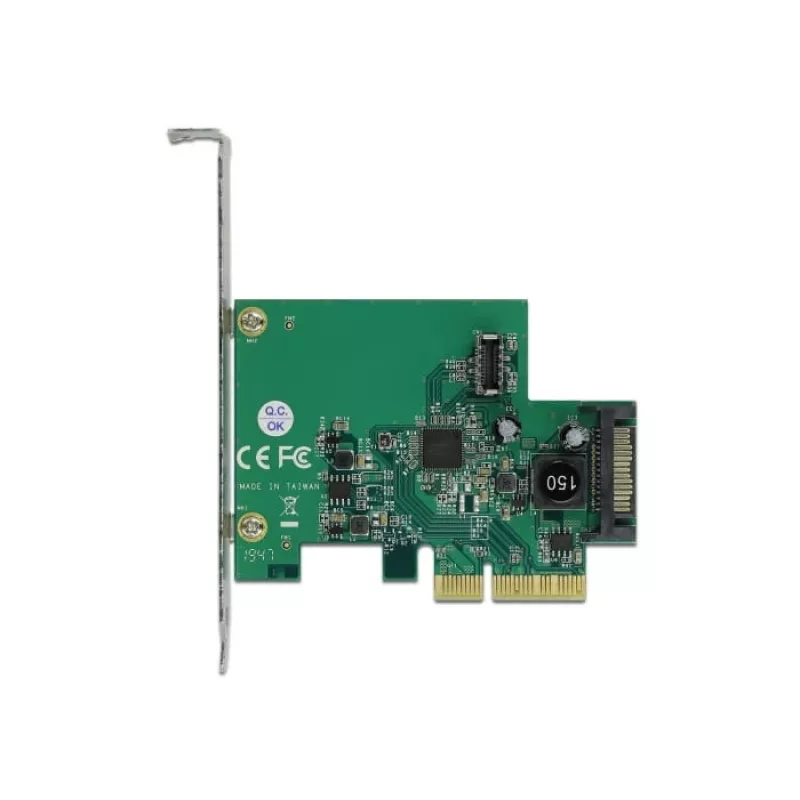

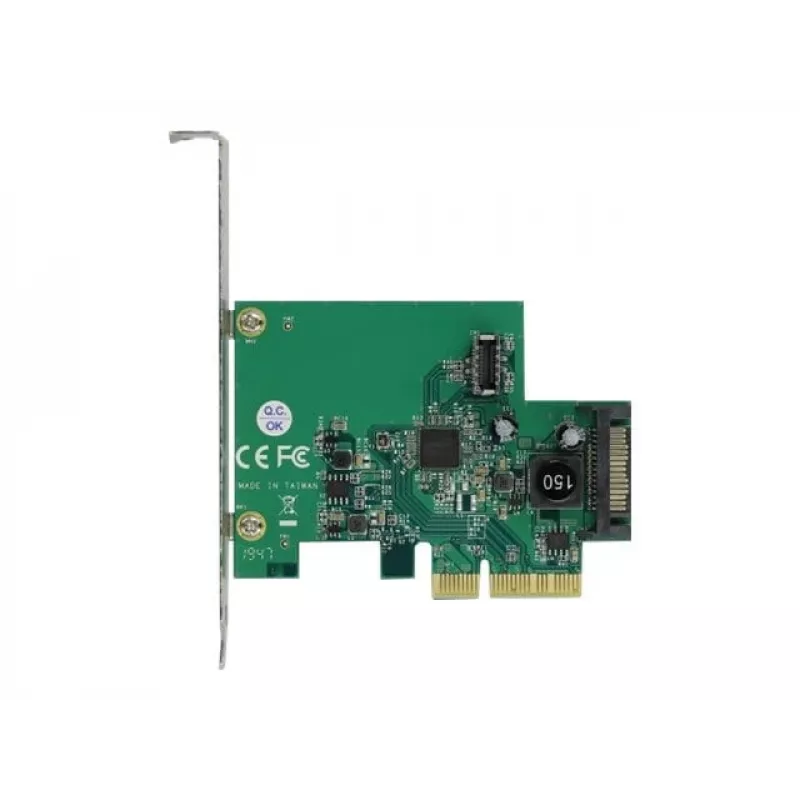

PCI Express x4 karta DeLOCK 89029

The DeLOCK PCI Express x4 Card (model 89029) adds one internal USB 3.2 Gen 2 Key A 20‑pin female connection to a desktop PC. The card fits into a PCIe x4 slot and supports PCIe 3.0, enabling a USB 10 Gbps (USB 3.2 Gen 2 / USB 3.1 Gen 2) connection for internal cabling to provide either a USB Type‑C or a USB Type‑A external interface depending on the connected cable.

Advantages

This expansion card delivers a single internal 20‑pin Key A USB 3.2 Gen 2 port with up to 10 Gbit/s throughput and is compatible with PCIe 3.0 slots. It provides flexible connection options via appropriate internal cables to convert the internal header to an external USB‑C or USB‑A connector. The card is designed for internal installation and extends system connectivity without occupying external PCI brackets.

Suitable for (tasks / use cases)

• Adding a high‑speed internal USB 3.2 Gen 2 header for front‑panel or chassis cable routing
• Converting an internal header to an external USB‑C or USB‑A port using the appropriate cable
• Upgrading older systems to support 10 Gbps USB connections for compatible devices

Key specifications

• Brand: DELOCK
• Model: 89029
• Host interface: PCIe (PCI Express x4, PCIe 3.0 compatible)
• Internal connector: USB Type‑E Key A 20‑pin female (internal header)
• Output: USB 3.2 Gen 2 (10 Gbit/s, also referred to as USB 3.1 Gen 2)
• Internal device: Yes
• Compatibility: Windows 10, Windows 8.1, Windows 7 (driver support may be required)
• EAN: 4043619890293

How to use

Install the card into an available PCIe x4 (or larger) slot on the motherboard and secure it according to the chassis instructions. Connect an appropriate internal cable to the 20‑pin Key A female header on the card; the cable determines whether the external connector will be USB Type‑C or USB Type‑A. After installation, boot the system and install any required drivers for your operating system if not automatically detected. Verify the connection and test with a USB 3.2 Gen 2 device to confirm 10 Gbit/s operation.

Recommendations

Use quality shielded internal cables and ensure the motherboard slot supports PCIe 3.0 for maximum throughput. For full 10 Gbit/s performance, connect compatible USB 3.2 Gen 2 devices and check for driver updates from DELOCK or the system vendor.
